Hi bugs@,
While workin on an update to my ports I hit a panic in xhci.
The only USB device attached to my machine currently is a USB
WiFi dongle (TP-LINK TL-WDN3200) running as run0. The crash
happened during increased networking activity (I was downloading
new src tarballs from upstream).
After rebooting and resuming work on ports I hit the same panic again.
This time also during increased networking acitvity (I was installing
qt5 with pkg_add).
This laptop used to work very stable with this WiFi dongle regardless
of network load. I looked at the backtrace and checked the latest changes
in xhci.c. I have a *suspicion* that the issue is caused by commit 1.111
in /usr/src/sys/dev/usb/xhci.c from date: 2020/01/22 02:25:11. The code

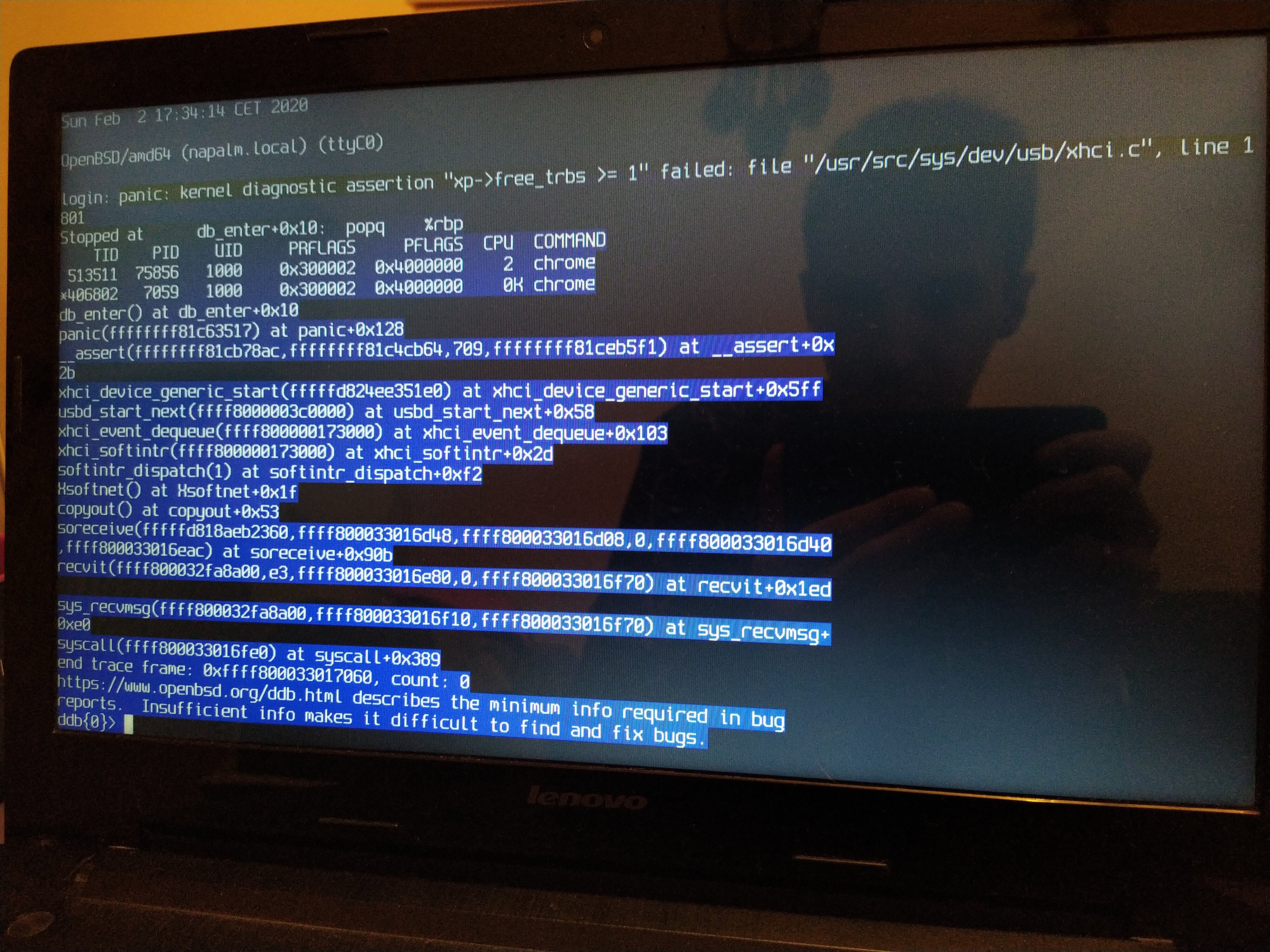

fails on an assert with:
KASSERT(xp->free_trbs >= 1)
The code that does accounting for xp->free_trbs was altered in 1.111 that
plus the timing is the reason why I believe it *might* cause my issue.
The last *known* stable kernel for this laptop was:
Jan 28 21:01:36 napalm /bsd: OpenBSD 6.6-current (GENERIC.MP) #539: Mon Dec 16
21:23:19 MST 2019
Jan 28 21:01:36 napalm /bsd:
dera...@amd64.openbsd.org:/usr/src/sys/arch/amd64/compile/GENERIC.MP
this had seen various loads and for sure didn't hit this panic.
I noticed the panics after booting up to:
Feb 2 19:01:58 napalm /bsd: OpenBSD 6.6-current (GENERIC.MP) #628: Sat Feb 1
23:32:22 MST 2020
Feb 2 19:01:58 napalm /bsd:
dera...@amd64.openbsd.org:/usr/src/sys/arch/amd64/compile/GENERIC.MP
I didn't hit them on the previous kernel I had installed:
Jan 31 15:37:15 napalm /bsd: OpenBSD 6.6-current (GENERIC.MP) #622: Mon Jan 27
00:12:59 MST 2020
However that one didn't see any significant network load. So I might have just
been lucky.
I have reverted 1.111 on xhci.c on my local machine and installed a new kernel
without that change.
I am currently running with it but it's too early to tell if that helped.
I will likely try reverting 1.110 next if the issue still persists.
I am attaching a dmesg from this machine and screenshots of the first crash
[0], plus a full set

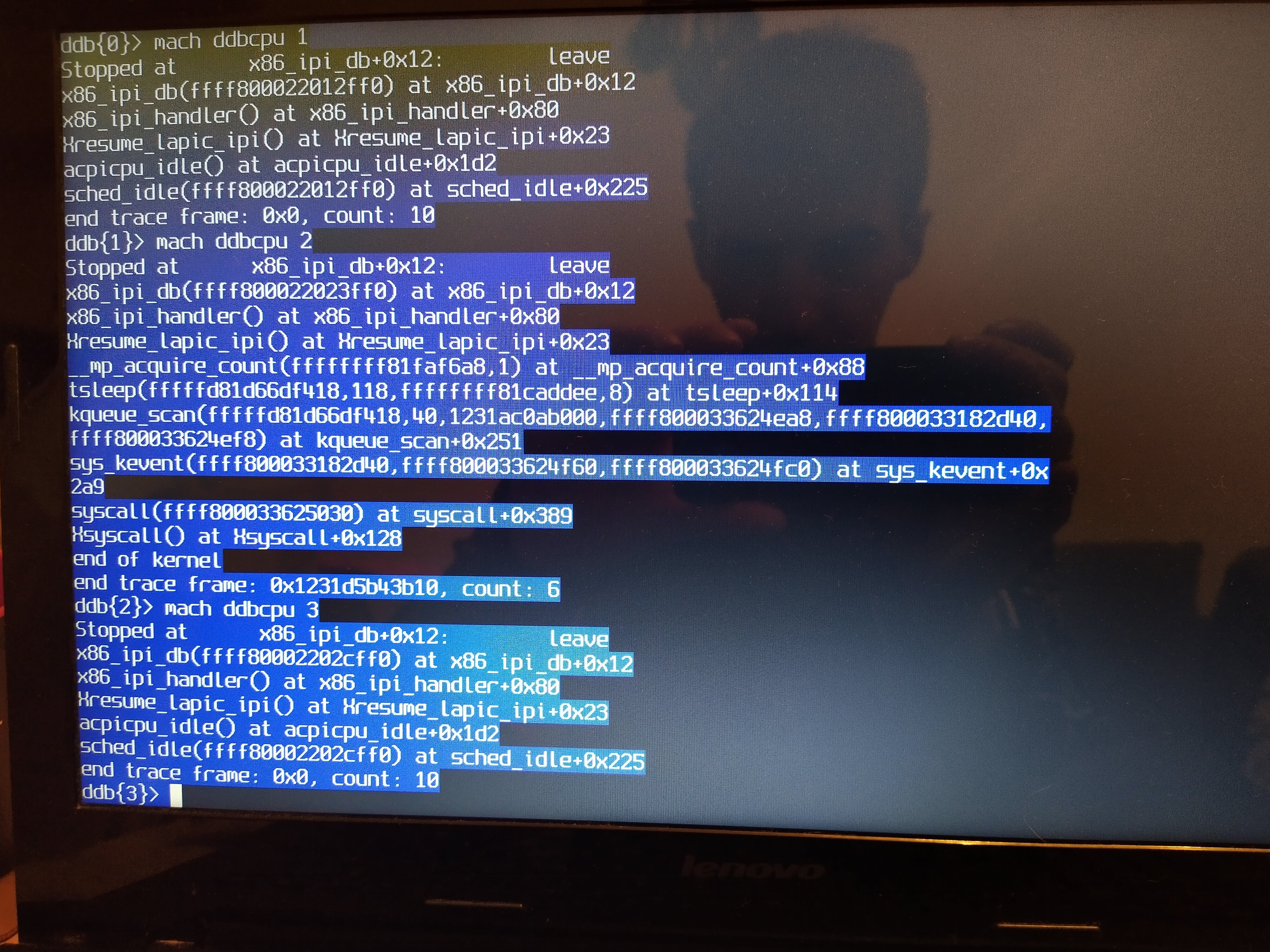

from the second crash [1] (trace from all cpus [2]). I also have screenshots of
full ps output for the
second crash - not attaching them unless requested as they are mostly filled
with chromium processes.
Total linked image size: 8.4M
[0] - https://junk.tintagel.pl/openbsd/bugs/xhci/IMG_20200202_172330_2.jpg
[1] - https://junk.tintagel.pl/openbsd/bugs/xhci/IMG_20200202_184607_2.jpg
[2] - https://junk.tintagel.pl/openbsd/bugs/xhci/IMG_20200202_185031_3.jpg
I am willing to test diffs, including debug ones. However please expect a
larger latency
after the weekend.
Regards,
Adam Wolk
dmesg:
OpenBSD 6.6-current (GENERIC.MP) #622: Mon Jan 27 00:12:59 MST 2020
dera...@amd64.openbsd.org:/usr/src/sys/arch/amd64/compile/GENERIC.MP
real mem = 8464887808 (8072MB)
avail mem = 8195858432 (7816MB)
mpath0 at root
scsibus0 at mpath0: 256 targets
mainbus0 at root
bios0 at mainbus0: SMBIOS rev. 2.7 @ 0xe6e40 (38 entries)
bios0: vendor LENOVO version "9ACN29WW" date 10/20/2014
bios0: LENOVO 20351
acpi0 at bios0: ACPI 5.0
acpi0: sleep states S0 S3 S4 S5
acpi0: tables DSDT FACP SLIC UEFI FPDT POAT ASF! HPET APIC MCFG WDAT SSDT BOOT
LPIT ASPT DBGP SSDT SSDT SSDT SSDT
acpi0: wakeup devices P0P1(S4) EHC1(S3) XHC_(S3) HDEF(S4) PXSX(S4) PXSX(S4)
RP03(S4) PXSX(S4) RP04(S4) PXSX(S4) RP05(S4) PEGP(S4) PEGA(S4) PXSX(S4)
PXSX(S4) PXSX(S4) [...]
acpitimer0 at acpi0: 3579545 Hz, 24 bits
acpihpet0 at acpi0: 14318179 Hz
acpimadt0 at acpi0 addr 0xfee00000: PC-AT compat
cpu0 at mainbus0: apid 0 (boot processor)
cpu0: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.88 MHz, 06-45-01
cpu0:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu0: 256KB 64b/line 8-way L2 cache
cpu0: smt 0, core 0, package 0
mtrr: Pentium Pro MTRR support, 10 var ranges, 88 fixed ranges
cpu0: apic clock running at 99MHz
cpu0: mwait min=64, max=64, C-substates=0.2.1.2.4.1.1.1, IBE
cpu1 at mainbus0: apid 1 (application processor)
cpu1: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.61 MHz, 06-45-01
cpu1:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu1: 256KB 64b/line 8-way L2 cache
cpu1: smt 1, core 0, package 0
cpu2 at mainbus0: apid 2 (application processor)
cpu2: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.62 MHz, 06-45-01
cpu2:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu2: 256KB 64b/line 8-way L2 cache
cpu2: smt 0, core 1, package 0
cpu3 at mainbus0: apid 3 (application processor)
cpu3: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.61 MHz, 06-45-01
cpu3:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu3: 256KB 64b/line 8-way L2 cache
cpu3: smt 1, core 1, package 0
ioapic0 at mainbus0: apid 2 pa 0xfec00000, version 20, 40 pins
acpimcfg0 at acpi0
acpimcfg0: addr 0xe0000000, bus 0-255
acpiprt0 at acpi0: bus 0 (PCI0)
acpiprt1 at acpi0: bus -1 (P0P1)
acpiprt2 at acpi0: bus 1 (RP03)
acpiprt3 at acpi0: bus 2 (RP04)
acpiprt4 at acpi0: bus 3 (RP05)
acpiprt5 at acpi0: bus -1 (PEG0)
acpiprt6 at acpi0: bus -1 (PEG1)
acpiprt7 at acpi0: bus -1 (PEG2)
acpiec0 at acpi0
acpicpu0 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpicpu1 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpicpu2 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpicpu3 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpipwrres0 at acpi0: AMD3, resource for RP05
acpipwrres1 at acpi0: AMD2, resource for RP05
acpipci0 at acpi0 PCI0: 0x00000000 0x00000011 0x00000001
extent `acpipci0 pcibus' (0x0 - 0xff), flags=0
0xff - 0xff
extent `acpipci0 pciio' (0x0 - 0xffffffff), flags=0
0xcf8 - 0xcff
0x10000 - 0xffffffff
extent `acpipci0 pcimem' (0x0 - 0xffffffffffffffff), flags=0
0x0 - 0x9ffff
0xc0000 - 0xaf9fffff
0xfeb00000 - 0xffffffffffffffff
"CIND0C60" at acpi0 not configured
acpibat0 at acpi0: BAT0 serial BAT20101001 oem "Lenovo IdeaPad"
"VPC2004" at acpi0 not configured
acpicmos0 at acpi0
"IDEA0102" at acpi0 not configured
"ETD0624" at acpi0 not configured
acpiac0 at acpi0: AC unit online
acpibtn0 at acpi0: LID0
acpibtn1 at acpi0: PWRB
acpivideo0 at acpi0: GFX0
acpivout0 at acpivideo0: DD1F
cpu0: using VERW MDS workaround (except on vmm entry)
cpu0: Enhanced SpeedStep 1895 MHz: speeds: 2601, 2600, 2500, 2300, 2200, 2000,
1900, 1800, 1600, 1500, 1400, 1200, 1100, 1000, 800, 754 MHz
pci0 at mainbus0 bus 0
pchb0 at pci0 dev 0 function 0 "Intel Core 4G Host" rev 0x0b
inteldrm0 at pci0 dev 2 function 0 "Intel HD Graphics" rev 0x0b
drm0 at inteldrm0
inteldrm0: msi
azalia0 at pci0 dev 3 function 0 "Intel Core 4G HD Audio" rev 0x0b: msi
azalia0: No codecs found
xhci0 at pci0 dev 20 function 0 "Intel 8 Series xHCI" rev 0x04: msi, xHCI 1.0
usb0 at xhci0: USB revision 3.0
uhub0 at usb0 configuration 1 interface 0 "Intel xHCI root hub" rev 3.00/1.00
addr 1
"Intel 8 Series MEI" rev 0x04 at pci0 dev 22 function 0 not configured
azalia1 at pci0 dev 27 function 0 "Intel 8 Series HD Audio" rev 0x04: msi
azalia1: codecs: Conexant/0x510f
audio0 at azalia1
ppb0 at pci0 dev 28 function 0 "Intel 8 Series PCIE" rev 0xe4: msi
pci1 at ppb0 bus 1
re0 at pci1 dev 0 function 0 "Realtek 8168" rev 0x10: RTL8168GU/8111GU
(0x5080), msi, address 68:f7:28:39:b2:85
rgephy0 at re0 phy 7: RTL8251 PHY, rev. 0
ppb1 at pci0 dev 28 function 3 "Intel 8 Series PCIE" rev 0xe4: msi
pci2 at ppb1 bus 2
"Atheros AR9565" rev 0x01 at pci2 dev 0 function 0 not configured
ppb2 at pci0 dev 28 function 4 "Intel 8 Series PCIE" rev 0xe4: msi
pci3 at ppb2 bus 3
3:0:0: rom address conflict 0xfffe0000/0x20000
radeondrm0 at pci3 dev 0 function 0 "ATI Radeon HD 8500M" rev 0x00
drm1 at radeondrm0
radeondrm0: msi
ehci0 at pci0 dev 29 function 0 "Intel 8 Series USB" rev 0x04: apic 2 int 23
usb1 at ehci0: USB revision 2.0
uhub1 at usb1 configuration 1 interface 0 "Intel EHCI root hub" rev 2.00/1.00
addr 1
pcib0 at pci0 dev 31 function 0 "Intel 8 Series LPC" rev 0x04
ahci0 at pci0 dev 31 function 2 "Intel 8 Series AHCI" rev 0x04: msi, AHCI 1.3
ahci0: port 0: 6.0Gb/s
ahci0: port 1: 1.5Gb/s
scsibus1 at ahci0: 32 targets
sd0 at scsibus1 targ 0 lun 0: <ATA, WDC WD10JPCX-24U, 01.0> naa.50014ee60528f927
sd0: 953869MB, 512 bytes/sector, 1953525168 sectors
cd0 at scsibus1 targ 1 lun 0: <PLDS, DVD-RW DA8A6SH, GL61> removable
ichiic0 at pci0 dev 31 function 3 "Intel 8 Series SMBus" rev 0x04: apic 2 int 18
iic0 at ichiic0
spdmem0 at iic0 addr 0x50: 4GB DDR3 SDRAM PC3-12800 SO-DIMM
spdmem1 at iic0 addr 0x52: 4GB DDR3 SDRAM PC3-12800 SO-DIMM
isa0 at pcib0
isadma0 at isa0
pckbc0 at isa0 port 0x60/5 irq 1 irq 12
pckbd0 at pckbc0 (kbd slot)
wskbd0 at pckbd0: console keyboard
pms0 at pckbc0 (aux slot)
wsmouse0 at pms0 mux 0
pms0: Elantech Touchpad, version 4, firmware 0x594f03
pcppi0 at isa0 port 0x61
spkr0 at pcppi0
run0 at uhub0 port 2 configuration 1 interface 0 "Ralink 802.11 n WLAN" rev
2.00/1.01 addr 2
run0: MAC/BBP RT5592 (rev 0x0222), RF RT5592 (MIMO 2T2R), address
e8:94:f6:10:a6:a2
ugen0 at uhub0 port 4 "Generic USB2.0-CRW" rev 2.00/39.60 addr 3
uvideo0 at uhub0 port 6 configuration 1 interface 0 "J58E8R30X Lenovo
EasyCamera" rev 2.00/0.06 addr 4
video0 at uvideo0
ugen1 at uhub0 port 7 "Atheros Communications product 0x3004" rev 1.10/0.01
addr 5
uhub2 at uhub1 port 1 configuration 1 interface 0 "Intel Rate Matching Hub" rev
2.00/0.04 addr 2
vscsi0 at root
scsibus2 at vscsi0: 256 targets
softraid0 at root
scsibus3 at softraid0: 256 targets
sd1 at scsibus3 targ 1 lun 0: <OPENBSD, SR CRYPTO, 006>
sd1: 953866MB, 512 bytes/sector, 1953519473 sectors
root on sd1a (5a23de4c02590db4.a) swap on sd1b dump on sd1b
inteldrm0: 1366x768, 32bpp
wsdisplay0 at inteldrm0 mux 1: console (std, vt100 emulation), using wskbd0
wsdisplay0: screen 1-5 added (std, vt100 emulation)
initializing kernel modesetting (HAINAN 0x1002:0x666F 0x17AA:0x380C 0x00).
drm:pid0:si_init *ERROR* Expecting atombios for cayman GPU
drm:pid0:radeondrm_attachhook *ERROR* Fatal error during GPU init
[TTM] Memory type 2 has not been initialized
drm1 detached
radeondrm0 detached
"ATI Radeon HD 8500M" rev 0x00 at pci3 dev 0 function 0 not configured
uhidev0 at uhub0 port 1 configuration 1 interface 0 "A4Tech USB Mouse" rev
1.10/10.32 addr 6
uhidev0: iclass 3/1, 4 report ids
ums0 at uhidev0 reportid 1: 8 buttons, Z dir
wsmouse1 at ums0 mux 0
uhid0 at uhidev0 reportid 4: input=5, output=0, feature=0
wsmouse1 detached
ums0 detached
uhid0 detached
uhidev0 detached
syncing disks... done
rebooting...
OpenBSD 6.6-current (RAMDISK_CD) #601: Sat Feb 1 23:39:30 MST 2020
dera...@amd64.openbsd.org:/usr/src/sys/arch/amd64/compile/RAMDISK_CD
real mem = 8464887808 (8072MB)
avail mem = 8204320768 (7824MB)
mainbus0 at root
bios0 at mainbus0: SMBIOS rev. 2.7 @ 0xe6e40 (38 entries)
bios0: vendor LENOVO version "9ACN29WW" date 10/20/2014
bios0: LENOVO 20351
acpi0 at bios0: ACPI 5.0
acpi0: tables DSDT FACP SLIC UEFI FPDT POAT ASF! HPET APIC MCFG WDAT SSDT BOOT
LPIT ASPT DBGP SSDT SSDT SSDT SSDT
acpimadt0 at acpi0 addr 0xfee00000: PC-AT compat
cpu0 at mainbus0: apid 0 (boot processor)
cpu0: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.90 MHz, 06-45-01
cpu0:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu0: 256KB 64b/line 8-way L2 cache
cpu0: apic clock running at 99MHz
cpu0: mwait min=64, max=64, C-substates=0.2.1.2.4.1.1.1, IBE
cpu at mainbus0: not configured
cpu at mainbus0: not configured
cpu at mainbus0: not configured
ioapic0 at mainbus0: apid 2 pa 0xfec00000, version 20, 40 pins
acpiprt0 at acpi0: bus 0 (PCI0)
acpiprt1 at acpi0: bus -1 (P0P1)
acpiprt2 at acpi0: bus 1 (RP03)
acpiprt3 at acpi0: bus 2 (RP04)
acpiprt4 at acpi0: bus 3 (RP05)
acpiprt5 at acpi0: bus -1 (PEG0)
acpiprt6 at acpi0: bus -1 (PEG1)
acpiprt7 at acpi0: bus -1 (PEG2)
acpiec0 at acpi0
acpicpu at acpi0 not configured
acpipwrres at acpi0 not configured
acpipwrres at acpi0 not configured
"PNP0A08" at acpi0 not configured
"CIND0C60" at acpi0 not configured
"PNP0C0A" at acpi0 not configured
"VPC2004" at acpi0 not configured
acpicmos0 at acpi0
"IDEA0102" at acpi0 not configured
"ETD0624" at acpi0 not configured
"ACPI0003" at acpi0 not configured
"PNP0C0D" at acpi0 not configured
"PNP0C0C" at acpi0 not configured
cpu0: using Broadwell MDS workaround
pci0 at mainbus0 bus 0
pchb0 at pci0 dev 0 function 0 "Intel Core 4G Host" rev 0x0b
vga1 at pci0 dev 2 function 0 "Intel HD Graphics" rev 0x0b
wsdisplay1 at vga1 mux 1: console (80x25, vt100 emulation)
"Intel Core 4G HD Audio" rev 0x0b at pci0 dev 3 function 0 not configured
xhci0 at pci0 dev 20 function 0 "Intel 8 Series xHCI" rev 0x04: msi, xHCI 1.0
usb0 at xhci0: USB revision 3.0
uhub0 at usb0 configuration 1 interface 0 "Intel xHCI root hub" rev 3.00/1.00
addr 1
"Intel 8 Series MEI" rev 0x04 at pci0 dev 22 function 0 not configured
"Intel 8 Series HD Audio" rev 0x04 at pci0 dev 27 function 0 not configured
ppb0 at pci0 dev 28 function 0 "Intel 8 Series PCIE" rev 0xe4: msi
pci1 at ppb0 bus 1
re0 at pci1 dev 0 function 0 "Realtek 8168" rev 0x10: RTL8168GU/8111GU
(0x5080), msi, address 68:f7:28:39:b2:85
rgephy0 at re0 phy 7: RTL8251 PHY, rev. 0
ppb1 at pci0 dev 28 function 3 "Intel 8 Series PCIE" rev 0xe4: msi
pci2 at ppb1 bus 2
"Atheros AR9565" rev 0x01 at pci2 dev 0 function 0 not configured
ppb2 at pci0 dev 28 function 4 "Intel 8 Series PCIE" rev 0xe4: msi
pci3 at ppb2 bus 3
3:0:0: rom address conflict 0xfffe0000/0x20000
"ATI Radeon HD 8500M" rev 0x00 at pci3 dev 0 function 0 not configured
ehci0 at pci0 dev 29 function 0 "Intel 8 Series USB" rev 0x04: apic 2 int 23
usb1 at ehci0: USB revision 2.0
uhub1 at usb1 configuration 1 interface 0 "Intel EHCI root hub" rev 2.00/1.00
addr 1
"Intel 8 Series LPC" rev 0x04 at pci0 dev 31 function 0 not configured
ahci0 at pci0 dev 31 function 2 "Intel 8 Series AHCI" rev 0x04: msi, AHCI 1.3
ahci0: port 0: 6.0Gb/s
ahci0: port 1: 1.5Gb/s
scsibus0 at ahci0: 32 targets
sd0 at scsibus0 targ 0 lun 0: <ATA, WDC WD10JPCX-24U, 01.0> naa.50014ee60528f927
sd0: 953869MB, 512 bytes/sector, 1953525168 sectors
cd0 at scsibus0 targ 1 lun 0: <PLDS, DVD-RW DA8A6SH, GL61> removable
"Intel 8 Series SMBus" rev 0x04 at pci0 dev 31 function 3 not configured
isa0 at mainbus0
pckbc0 at isa0 port 0x60/5 irq 1 irq 12
pckbd0 at pckbc0 (kbd slot)
wskbd0 at pckbd0: console keyboard, using wsdisplay1
run0 at uhub0 port 2 configuration 1 interface 0 "Ralink 802.11 n WLAN" rev
2.00/1.01 addr 2
run0: MAC/BBP RT5592 (rev 0x0222), RF RT5592 (MIMO 2T2R), address
e8:94:f6:10:a6:a2
"Generic USB2.0-CRW" rev 2.00/39.60 addr 3 at uhub0 port 4 not configured
"J58E8R30X Lenovo EasyCamera" rev 2.00/0.06 addr 4 at uhub0 port 6 not
configured
"vendor 0x0cf3 product 0x3004" rev 1.10/0.01 addr 5 at uhub0 port 7 not
configured
uhub2 at uhub1 port 1 configuration 1 interface 0 "vendor 0x8087 product
0x8000" rev 2.00/0.04 addr 2
softraid0 at root
scsibus1 at softraid0: 256 targets
sd1 at scsibus1 targ 1 lun 0: <OPENBSD, SR CRYPTO, 006>
sd1: 953866MB, 512 bytes/sector, 1953519473 sectors
root on rd0a swap on rd0b dump on rd0b
syncing disks...
OpenBSD 6.6-current (GENERIC.MP) #628: Sat Feb 1 23:32:22 MST 2020
dera...@amd64.openbsd.org:/usr/src/sys/arch/amd64/compile/GENERIC.MP
real mem = 8464887808 (8072MB)
avail mem = 8195870720 (7816MB)
mpath0 at root
scsibus0 at mpath0: 256 targets
mainbus0 at root
bios0 at mainbus0: SMBIOS rev. 2.7 @ 0xe6e40 (38 entries)
bios0: vendor LENOVO version "9ACN29WW" date 10/20/2014
bios0: LENOVO 20351
acpi0 at bios0: ACPI 5.0
acpi0: sleep states S0 S3 S4 S5
acpi0: tables DSDT FACP SLIC UEFI FPDT POAT ASF! HPET APIC MCFG WDAT SSDT BOOT
LPIT ASPT DBGP SSDT SSDT SSDT SSDT
acpi0: wakeup devices P0P1(S4) EHC1(S3) XHC_(S3) HDEF(S4) PXSX(S4) PXSX(S4)
RP03(S4) PXSX(S4) RP04(S4) PXSX(S4) RP05(S4) PEGP(S4) PEGA(S4) PXSX(S4)
PXSX(S4) PXSX(S4) [...]
acpitimer0 at acpi0: 3579545 Hz, 24 bits
acpihpet0 at acpi0: 14318179 Hz
acpimadt0 at acpi0 addr 0xfee00000: PC-AT compat
cpu0 at mainbus0: apid 0 (boot processor)
cpu0: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.88 MHz, 06-45-01
cpu0:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu0: 256KB 64b/line 8-way L2 cache
cpu0: smt 0, core 0, package 0
mtrr: Pentium Pro MTRR support, 10 var ranges, 88 fixed ranges
cpu0: apic clock running at 99MHz
cpu0: mwait min=64, max=64, C-substates=0.2.1.2.4.1.1.1, IBE
cpu1 at mainbus0: apid 1 (application processor)
cpu1: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.62 MHz, 06-45-01
cpu1:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu1: 256KB 64b/line 8-way L2 cache
cpu1: smt 1, core 0, package 0
cpu2 at mainbus0: apid 2 (application processor)
cpu2: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.62 MHz, 06-45-01
cpu2:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu2: 256KB 64b/line 8-way L2 cache
cpu2: smt 0, core 1, package 0
cpu3 at mainbus0: apid 3 (application processor)
cpu3: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.62 MHz, 06-45-01
cpu3:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu3: 256KB 64b/line 8-way L2 cache
cpu3: smt 1, core 1, package 0
ioapic0 at mainbus0: apid 2 pa 0xfec00000, version 20, 40 pins
acpimcfg0 at acpi0
acpimcfg0: addr 0xe0000000, bus 0-255
acpiprt0 at acpi0: bus 0 (PCI0)
acpiprt1 at acpi0: bus -1 (P0P1)
acpiprt2 at acpi0: bus 1 (RP03)
acpiprt3 at acpi0: bus 2 (RP04)
acpiprt4 at acpi0: bus 3 (RP05)
acpiprt5 at acpi0: bus -1 (PEG0)
acpiprt6 at acpi0: bus -1 (PEG1)
acpiprt7 at acpi0: bus -1 (PEG2)
acpiec0 at acpi0
acpicpu0 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpicpu1 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpicpu2 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpicpu3 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpipwrres0 at acpi0: AMD3, resource for RP05
acpipwrres1 at acpi0: AMD2, resource for RP05
acpipci0 at acpi0 PCI0: 0x00000000 0x00000011 0x00000001
"CIND0C60" at acpi0 not configured
acpibat0 at acpi0: BAT0 serial BAT20101001 oem "Lenovo IdeaPad"
"VPC2004" at acpi0 not configured
acpicmos0 at acpi0
"IDEA0102" at acpi0 not configured
"ETD0624" at acpi0 not configured
acpiac0 at acpi0: AC unit online
acpibtn0 at acpi0: LID0
acpibtn1 at acpi0: PWRB
acpivideo0 at acpi0: GFX0
acpivout0 at acpivideo0: DD1F
cpu0: using VERW MDS workaround (except on vmm entry)
cpu0: Enhanced SpeedStep 1895 MHz: speeds: 2601, 2600, 2500, 2300, 2200, 2000,
1900, 1800, 1600, 1500, 1400, 1200, 1100, 1000, 800, 754 MHz
pci0 at mainbus0 bus 0
pchb0 at pci0 dev 0 function 0 "Intel Core 4G Host" rev 0x0b
inteldrm0 at pci0 dev 2 function 0 "Intel HD Graphics" rev 0x0b
drm0 at inteldrm0
inteldrm0: msi
azalia0 at pci0 dev 3 function 0 "Intel Core 4G HD Audio" rev 0x0b: msi
azalia0: No codecs found
xhci0 at pci0 dev 20 function 0 "Intel 8 Series xHCI" rev 0x04: msi, xHCI 1.0
usb0 at xhci0: USB revision 3.0
uhub0 at usb0 configuration 1 interface 0 "Intel xHCI root hub" rev 3.00/1.00
addr 1
"Intel 8 Series MEI" rev 0x04 at pci0 dev 22 function 0 not configured
azalia1 at pci0 dev 27 function 0 "Intel 8 Series HD Audio" rev 0x04: msi
azalia1: codecs: Conexant/0x510f
audio0 at azalia1
ppb0 at pci0 dev 28 function 0 "Intel 8 Series PCIE" rev 0xe4: msi
pci1 at ppb0 bus 1
re0 at pci1 dev 0 function 0 "Realtek 8168" rev 0x10: RTL8168GU/8111GU
(0x5080), msi, address 68:f7:28:39:b2:85
rgephy0 at re0 phy 7: RTL8251 PHY, rev. 0
ppb1 at pci0 dev 28 function 3 "Intel 8 Series PCIE" rev 0xe4: msi
pci2 at ppb1 bus 2
"Atheros AR9565" rev 0x01 at pci2 dev 0 function 0 not configured
ppb2 at pci0 dev 28 function 4 "Intel 8 Series PCIE" rev 0xe4: msi
pci3 at ppb2 bus 3
3:0:0: rom address conflict 0xfffe0000/0x20000
radeondrm0 at pci3 dev 0 function 0 "ATI Radeon HD 8500M" rev 0x00
drm1 at radeondrm0
radeondrm0: msi
ehci0 at pci0 dev 29 function 0 "Intel 8 Series USB" rev 0x04: apic 2 int 23
usb1 at ehci0: USB revision 2.0
uhub1 at usb1 configuration 1 interface 0 "Intel EHCI root hub" rev 2.00/1.00
addr 1
pcib0 at pci0 dev 31 function 0 "Intel 8 Series LPC" rev 0x04
ahci0 at pci0 dev 31 function 2 "Intel 8 Series AHCI" rev 0x04: msi, AHCI 1.3
ahci0: port 0: 6.0Gb/s
ahci0: port 1: 1.5Gb/s
scsibus1 at ahci0: 32 targets
sd0 at scsibus1 targ 0 lun 0: <ATA, WDC WD10JPCX-24U, 01.0> naa.50014ee60528f927
sd0: 953869MB, 512 bytes/sector, 1953525168 sectors
cd0 at scsibus1 targ 1 lun 0: <PLDS, DVD-RW DA8A6SH, GL61> removable
ichiic0 at pci0 dev 31 function 3 "Intel 8 Series SMBus" rev 0x04: apic 2 int 18
iic0 at ichiic0
spdmem0 at iic0 addr 0x50: 4GB DDR3 SDRAM PC3-12800 SO-DIMM
spdmem1 at iic0 addr 0x52: 4GB DDR3 SDRAM PC3-12800 SO-DIMM
isa0 at pcib0
isadma0 at isa0
pckbc0 at isa0 port 0x60/5 irq 1 irq 12
pckbd0 at pckbc0 (kbd slot)
wskbd0 at pckbd0: console keyboard
pms0 at pckbc0 (aux slot)
wsmouse0 at pms0 mux 0
pms0: Elantech Touchpad, version 4, firmware 0x594f03
pcppi0 at isa0 port 0x61
spkr0 at pcppi0
run0 at uhub0 port 2 configuration 1 interface 0 "Ralink 802.11 n WLAN" rev
2.00/1.01 addr 2
run0: MAC/BBP RT5592 (rev 0x0222), RF RT5592 (MIMO 2T2R), address
e8:94:f6:10:a6:a2
ugen0 at uhub0 port 4 "Generic USB2.0-CRW" rev 2.00/39.60 addr 3
uvideo0 at uhub0 port 6 configuration 1 interface 0 "J58E8R30X Lenovo
EasyCamera" rev 2.00/0.06 addr 4
video0 at uvideo0
ugen1 at uhub0 port 7 "Atheros Communications product 0x3004" rev 1.10/0.01
addr 5
uhub2 at uhub1 port 1 configuration 1 interface 0 "Intel Rate Matching Hub" rev
2.00/0.04 addr 2
vscsi0 at root
scsibus2 at vscsi0: 256 targets
softraid0 at root
scsibus3 at softraid0: 256 targets
sd1 at scsibus3 targ 1 lun 0: <OPENBSD, SR CRYPTO, 006>
sd1: 953866MB, 512 bytes/sector, 1953519473 sectors
root on sd1a (5a23de4c02590db4.a) swap on sd1b dump on sd1b
inteldrm0: 1366x768, 32bpp
wsdisplay0 at inteldrm0 mux 1: console (std, vt100 emulation), using wskbd0
wsdisplay0: screen 1-5 added (std, vt100 emulation)
initializing kernel modesetting (HAINAN 0x1002:0x666F 0x17AA:0x380C 0x00).
drm:pid0:si_init *ERROR* Expecting atombios for cayman GPU
drm:pid0:radeondrm_attachhook *ERROR* Fatal error during GPU init
[TTM] Memory type 2 has not been initialized
drm1 detached
radeondrm0 detached
"ATI Radeon HD 8500M" rev 0x00 at pci3 dev 0 function 0 not configured
OpenBSD 6.6-current (GENERIC.MP) #628: Sat Feb 1 23:32:22 MST 2020
dera...@amd64.openbsd.org:/usr/src/sys/arch/amd64/compile/GENERIC.MP
real mem = 8464887808 (8072MB)
avail mem = 8195850240 (7816MB)
mpath0 at root
scsibus0 at mpath0: 256 targets
mainbus0 at root
bios0 at mainbus0: SMBIOS rev. 2.7 @ 0xe6e40 (38 entries)
bios0: vendor LENOVO version "9ACN29WW" date 10/20/2014
bios0: LENOVO 20351
acpi0 at bios0: ACPI 5.0
acpi0: sleep states S0 S3 S4 S5
acpi0: tables DSDT FACP SLIC UEFI FPDT POAT ASF! HPET APIC MCFG WDAT SSDT BOOT
LPIT ASPT DBGP SSDT SSDT SSDT SSDT
acpi0: wakeup devices P0P1(S4) EHC1(S3) XHC_(S3) HDEF(S4) PXSX(S4) PXSX(S4)
RP03(S4) PXSX(S4) RP04(S4) PXSX(S4) RP05(S4) PEGP(S4) PEGA(S4) PXSX(S4)
PXSX(S4) PXSX(S4) [...]
acpitimer0 at acpi0: 3579545 Hz, 24 bits
acpihpet0 at acpi0: 14318179 Hz
acpimadt0 at acpi0 addr 0xfee00000: PC-AT compat
cpu0 at mainbus0: apid 0 (boot processor)
cpu0: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.94 MHz, 06-45-01
cpu0:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu0: 256KB 64b/line 8-way L2 cache
cpu0: smt 0, core 0, package 0
mtrr: Pentium Pro MTRR support, 10 var ranges, 88 fixed ranges
cpu0: apic clock running at 99MHz
cpu0: mwait min=64, max=64, C-substates=0.2.1.2.4.1.1.1, IBE
cpu1 at mainbus0: apid 1 (application processor)
cpu1: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.62 MHz, 06-45-01
cpu1:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu1: 256KB 64b/line 8-way L2 cache
cpu1: smt 1, core 0, package 0
cpu2 at mainbus0: apid 2 (application processor)
cpu2: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.63 MHz, 06-45-01
cpu2:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu2: 256KB 64b/line 8-way L2 cache
cpu2: smt 0, core 1, package 0
cpu3 at mainbus0: apid 3 (application processor)
cpu3: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.62 MHz, 06-45-01
cpu3:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu3: 256KB 64b/line 8-way L2 cache
cpu3: smt 1, core 1, package 0
ioapic0 at mainbus0: apid 2 pa 0xfec00000, version 20, 40 pins
acpimcfg0 at acpi0
acpimcfg0: addr 0xe0000000, bus 0-255
acpiprt0 at acpi0: bus 0 (PCI0)
acpiprt1 at acpi0: bus -1 (P0P1)
acpiprt2 at acpi0: bus 1 (RP03)
acpiprt3 at acpi0: bus 2 (RP04)
acpiprt4 at acpi0: bus 3 (RP05)
acpiprt5 at acpi0: bus -1 (PEG0)
acpiprt6 at acpi0: bus -1 (PEG1)
acpiprt7 at acpi0: bus -1 (PEG2)
acpiec0 at acpi0
acpicpu0 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpicpu1 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpicpu2 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpicpu3 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpipwrres0 at acpi0: AMD3, resource for RP05
acpipwrres1 at acpi0: AMD2, resource for RP05
acpipci0 at acpi0 PCI0: 0x00000000 0x00000011 0x00000001
"CIND0C60" at acpi0 not configured
acpibat0 at acpi0: BAT0 serial BAT20101001 oem "Lenovo IdeaPad"
"VPC2004" at acpi0 not configured
acpicmos0 at acpi0
"IDEA0102" at acpi0 not configured
"ETD0624" at acpi0 not configured
acpiac0 at acpi0: AC unit online
acpibtn0 at acpi0: LID0
acpibtn1 at acpi0: PWRB
acpivideo0 at acpi0: GFX0
acpivout0 at acpivideo0: DD1F
cpu0: using VERW MDS workaround (except on vmm entry)
cpu0: Enhanced SpeedStep 1895 MHz: speeds: 2601, 2600, 2500, 2300, 2200, 2000,
1900, 1800, 1600, 1500, 1400, 1200, 1100, 1000, 800, 754 MHz
pci0 at mainbus0 bus 0
pchb0 at pci0 dev 0 function 0 "Intel Core 4G Host" rev 0x0b
inteldrm0 at pci0 dev 2 function 0 "Intel HD Graphics" rev 0x0b
drm0 at inteldrm0
inteldrm0: msi
azalia0 at pci0 dev 3 function 0 "Intel Core 4G HD Audio" rev 0x0b: msi
azalia0: No codecs found
xhci0 at pci0 dev 20 function 0 "Intel 8 Series xHCI" rev 0x04: msi, xHCI 1.0
usb0 at xhci0: USB revision 3.0
uhub0 at usb0 configuration 1 interface 0 "Intel xHCI root hub" rev 3.00/1.00
addr 1
"Intel 8 Series MEI" rev 0x04 at pci0 dev 22 function 0 not configured
azalia1 at pci0 dev 27 function 0 "Intel 8 Series HD Audio" rev 0x04: msi
azalia1: codecs: Conexant/0x510f
audio0 at azalia1
ppb0 at pci0 dev 28 function 0 "Intel 8 Series PCIE" rev 0xe4: msi
pci1 at ppb0 bus 1
re0 at pci1 dev 0 function 0 "Realtek 8168" rev 0x10: RTL8168GU/8111GU
(0x5080), msi, address 68:f7:28:39:b2:85
rgephy0 at re0 phy 7: RTL8251 PHY, rev. 0
ppb1 at pci0 dev 28 function 3 "Intel 8 Series PCIE" rev 0xe4: msi
pci2 at ppb1 bus 2
"Atheros AR9565" rev 0x01 at pci2 dev 0 function 0 not configured
ppb2 at pci0 dev 28 function 4 "Intel 8 Series PCIE" rev 0xe4: msi
pci3 at ppb2 bus 3
3:0:0: rom address conflict 0xfffe0000/0x20000
radeondrm0 at pci3 dev 0 function 0 "ATI Radeon HD 8500M" rev 0x00
drm1 at radeondrm0
radeondrm0: msi
ehci0 at pci0 dev 29 function 0 "Intel 8 Series USB" rev 0x04: apic 2 int 23
usb1 at ehci0: USB revision 2.0
uhub1 at usb1 configuration 1 interface 0 "Intel EHCI root hub" rev 2.00/1.00
addr 1
pcib0 at pci0 dev 31 function 0 "Intel 8 Series LPC" rev 0x04
ahci0 at pci0 dev 31 function 2 "Intel 8 Series AHCI" rev 0x04: msi, AHCI 1.3
ahci0: port 0: 6.0Gb/s
ahci0: port 1: 1.5Gb/s
scsibus1 at ahci0: 32 targets
sd0 at scsibus1 targ 0 lun 0: <ATA, WDC WD10JPCX-24U, 01.0> naa.50014ee60528f927
sd0: 953869MB, 512 bytes/sector, 1953525168 sectors
cd0 at scsibus1 targ 1 lun 0: <PLDS, DVD-RW DA8A6SH, GL61> removable
ichiic0 at pci0 dev 31 function 3 "Intel 8 Series SMBus" rev 0x04: apic 2 int 18
iic0 at ichiic0
spdmem0 at iic0 addr 0x50: 4GB DDR3 SDRAM PC3-12800 SO-DIMM
spdmem1 at iic0 addr 0x52: 4GB DDR3 SDRAM PC3-12800 SO-DIMM
isa0 at pcib0
isadma0 at isa0
pckbc0 at isa0 port 0x60/5 irq 1 irq 12
pckbd0 at pckbc0 (kbd slot)
wskbd0 at pckbd0: console keyboard
pms0 at pckbc0 (aux slot)
wsmouse0 at pms0 mux 0
pms0: Elantech Touchpad, version 4, firmware 0x594f03
pcppi0 at isa0 port 0x61
spkr0 at pcppi0
run0 at uhub0 port 2 configuration 1 interface 0 "Ralink 802.11 n WLAN" rev
2.00/1.01 addr 2
run0: MAC/BBP RT5592 (rev 0x0222), RF RT5592 (MIMO 2T2R), address
e8:94:f6:10:a6:a2
ugen0 at uhub0 port 4 "Generic USB2.0-CRW" rev 2.00/39.60 addr 3
uvideo0 at uhub0 port 6 configuration 1 interface 0 "J58E8R30X Lenovo
EasyCamera" rev 2.00/0.06 addr 4
video0 at uvideo0
ugen1 at uhub0 port 7 "Atheros Communications product 0x3004" rev 1.10/0.01
addr 5
uhub2 at uhub1 port 1 configuration 1 interface 0 "Intel Rate Matching Hub" rev
2.00/0.04 addr 2
vscsi0 at root
scsibus2 at vscsi0: 256 targets
softraid0 at root
scsibus3 at softraid0: 256 targets
softraid0: sd1 was not shutdown properly
sd1 at scsibus3 targ 1 lun 0: <OPENBSD, SR CRYPTO, 006>
sd1: 953866MB, 512 bytes/sector, 1953519473 sectors
root on sd1a (5a23de4c02590db4.a) swap on sd1b dump on sd1b
WARNING: / was not properly unmounted
inteldrm0: 1366x768, 32bpp
wsdisplay0 at inteldrm0 mux 1: console (std, vt100 emulation), using wskbd0
wsdisplay0: screen 1-5 added (std, vt100 emulation)
initializing kernel modesetting (HAINAN 0x1002:0x666F 0x17AA:0x380C 0x00).
drm:pid0:si_init *ERROR* Expecting atombios for cayman GPU
drm:pid0:radeondrm_attachhook *ERROR* Fatal error during GPU init
[TTM] Memory type 2 has not been initialized
drm1 detached
radeondrm0 detached
"ATI Radeon HD 8500M" rev 0x00 at pci3 dev 0 function 0 not configured
OpenBSD 6.6-current (GENERIC.MP) #628: Sat Feb 1 23:32:22 MST 2020
dera...@amd64.openbsd.org:/usr/src/sys/arch/amd64/compile/GENERIC.MP
real mem = 8464887808 (8072MB)
avail mem = 8195866624 (7816MB)
mpath0 at root
scsibus0 at mpath0: 256 targets
mainbus0 at root
bios0 at mainbus0: SMBIOS rev. 2.7 @ 0xe6e40 (38 entries)
bios0: vendor LENOVO version "9ACN29WW" date 10/20/2014
bios0: LENOVO 20351
acpi0 at bios0: ACPI 5.0
acpi0: sleep states S0 S3 S4 S5
acpi0: tables DSDT FACP SLIC UEFI FPDT POAT ASF! HPET APIC MCFG WDAT SSDT BOOT
LPIT ASPT DBGP SSDT SSDT SSDT SSDT
acpi0: wakeup devices P0P1(S4) EHC1(S3) XHC_(S3) HDEF(S4) PXSX(S4) PXSX(S4)
RP03(S4) PXSX(S4) RP04(S4) PXSX(S4) RP05(S4) PEGP(S4) PEGA(S4) PXSX(S4)
PXSX(S4) PXSX(S4) [...]
acpitimer0 at acpi0: 3579545 Hz, 24 bits
acpihpet0 at acpi0: 14318179 Hz
acpimadt0 at acpi0 addr 0xfee00000: PC-AT compat
cpu0 at mainbus0: apid 0 (boot processor)
cpu0: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.92 MHz, 06-45-01
cpu0:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu0: 256KB 64b/line 8-way L2 cache
cpu0: smt 0, core 0, package 0
mtrr: Pentium Pro MTRR support, 10 var ranges, 88 fixed ranges
cpu0: apic clock running at 99MHz
cpu0: mwait min=64, max=64, C-substates=0.2.1.2.4.1.1.1, IBE
cpu1 at mainbus0: apid 1 (application processor)
cpu1: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.62 MHz, 06-45-01
cpu1:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu1: 256KB 64b/line 8-way L2 cache
cpu1: smt 1, core 0, package 0
cpu2 at mainbus0: apid 2 (application processor)
cpu2: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.62 MHz, 06-45-01
cpu2:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu2: 256KB 64b/line 8-way L2 cache
cpu2: smt 0, core 1, package 0
cpu3 at mainbus0: apid 3 (application processor)
cpu3: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.62 MHz, 06-45-01
cpu3:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu3: 256KB 64b/line 8-way L2 cache
cpu3: smt 1, core 1, package 0
ioapic0 at mainbus0: apid 2 pa 0xfec00000, version 20, 40 pins
acpimcfg0 at acpi0
acpimcfg0: addr 0xe0000000, bus 0-255
acpiprt0 at acpi0: bus 0 (PCI0)
acpiprt1 at acpi0: bus -1 (P0P1)
acpiprt2 at acpi0: bus 1 (RP03)
acpiprt3 at acpi0: bus 2 (RP04)
acpiprt4 at acpi0: bus 3 (RP05)
acpiprt5 at acpi0: bus -1 (PEG0)
acpiprt6 at acpi0: bus -1 (PEG1)
acpiprt7 at acpi0: bus -1 (PEG2)
acpiec0 at acpi0
acpicpu0 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpicpu1 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpicpu2 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpicpu3 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpipwrres0 at acpi0: AMD3, resource for RP05
acpipwrres1 at acpi0: AMD2, resource for RP05
acpipci0 at acpi0 PCI0: 0x00000000 0x00000011 0x00000001
"CIND0C60" at acpi0 not configured
acpibat0 at acpi0: BAT0 serial BAT20101001 oem "Lenovo IdeaPad"
"VPC2004" at acpi0 not configured
acpicmos0 at acpi0
"IDEA0102" at acpi0 not configured
"ETD0624" at acpi0 not configured
acpiac0 at acpi0: AC unit online
acpibtn0 at acpi0: LID0
acpibtn1 at acpi0: PWRB
acpivideo0 at acpi0: GFX0
acpivout0 at acpivideo0: DD1F
cpu0: using VERW MDS workaround (except on vmm entry)
cpu0: Enhanced SpeedStep 1895 MHz: speeds: 2601, 2600, 2500, 2300, 2200, 2000,
1900, 1800, 1600, 1500, 1400, 1200, 1100, 1000, 800, 754 MHz
pci0 at mainbus0 bus 0
pchb0 at pci0 dev 0 function 0 "Intel Core 4G Host" rev 0x0b
inteldrm0 at pci0 dev 2 function 0 "Intel HD Graphics" rev 0x0b
drm0 at inteldrm0
inteldrm0: msi
azalia0 at pci0 dev 3 function 0 "Intel Core 4G HD Audio" rev 0x0b: msi
azalia0: No codecs found
xhci0 at pci0 dev 20 function 0 "Intel 8 Series xHCI" rev 0x04: msi, xHCI 1.0
usb0 at xhci0: USB revision 3.0
uhub0 at usb0 configuration 1 interface 0 "Intel xHCI root hub" rev 3.00/1.00
addr 1
"Intel 8 Series MEI" rev 0x04 at pci0 dev 22 function 0 not configured
azalia1 at pci0 dev 27 function 0 "Intel 8 Series HD Audio" rev 0x04: msi
azalia1: codecs: Conexant/0x510f
audio0 at azalia1
ppb0 at pci0 dev 28 function 0 "Intel 8 Series PCIE" rev 0xe4: msi
pci1 at ppb0 bus 1
re0 at pci1 dev 0 function 0 "Realtek 8168" rev 0x10: RTL8168GU/8111GU
(0x5080), msi, address 68:f7:28:39:b2:85
rgephy0 at re0 phy 7: RTL8251 PHY, rev. 0
ppb1 at pci0 dev 28 function 3 "Intel 8 Series PCIE" rev 0xe4: msi
pci2 at ppb1 bus 2
"Atheros AR9565" rev 0x01 at pci2 dev 0 function 0 not configured
ppb2 at pci0 dev 28 function 4 "Intel 8 Series PCIE" rev 0xe4: msi
pci3 at ppb2 bus 3
3:0:0: rom address conflict 0xfffe0000/0x20000
radeondrm0 at pci3 dev 0 function 0 "ATI Radeon HD 8500M" rev 0x00
drm1 at radeondrm0
radeondrm0: msi
ehci0 at pci0 dev 29 function 0 "Intel 8 Series USB" rev 0x04: apic 2 int 23
usb1 at ehci0: USB revision 2.0
uhub1 at usb1 configuration 1 interface 0 "Intel EHCI root hub" rev 2.00/1.00
addr 1
pcib0 at pci0 dev 31 function 0 "Intel 8 Series LPC" rev 0x04
ahci0 at pci0 dev 31 function 2 "Intel 8 Series AHCI" rev 0x04: msi, AHCI 1.3
ahci0: port 0: 6.0Gb/s
ahci0: port 1: 1.5Gb/s
scsibus1 at ahci0: 32 targets
sd0 at scsibus1 targ 0 lun 0: <ATA, WDC WD10JPCX-24U, 01.0> naa.50014ee60528f927
sd0: 953869MB, 512 bytes/sector, 1953525168 sectors
cd0 at scsibus1 targ 1 lun 0: <PLDS, DVD-RW DA8A6SH, GL61> removable
ichiic0 at pci0 dev 31 function 3 "Intel 8 Series SMBus" rev 0x04: apic 2 int 18
iic0 at ichiic0
spdmem0 at iic0 addr 0x50: 4GB DDR3 SDRAM PC3-12800 SO-DIMM
spdmem1 at iic0 addr 0x52: 4GB DDR3 SDRAM PC3-12800 SO-DIMM
isa0 at pcib0
isadma0 at isa0
pckbc0 at isa0 port 0x60/5 irq 1 irq 12
pckbd0 at pckbc0 (kbd slot)
wskbd0 at pckbd0: console keyboard
pms0 at pckbc0 (aux slot)
wsmouse0 at pms0 mux 0
pms0: Elantech Touchpad, version 4, firmware 0x594f03
pcppi0 at isa0 port 0x61
spkr0 at pcppi0
run0 at uhub0 port 2 configuration 1 interface 0 "Ralink 802.11 n WLAN" rev
2.00/1.01 addr 2
run0: MAC/BBP RT5592 (rev 0x0222), RF RT5592 (MIMO 2T2R), address
e8:94:f6:10:a6:a2
ugen0 at uhub0 port 4 "Generic USB2.0-CRW" rev 2.00/39.60 addr 3
uvideo0 at uhub0 port 6 configuration 1 interface 0 "J58E8R30X Lenovo
EasyCamera" rev 2.00/0.06 addr 4
video0 at uvideo0
ugen1 at uhub0 port 7 "Atheros Communications product 0x3004" rev 1.10/0.01
addr 5
uhub2 at uhub1 port 1 configuration 1 interface 0 "Intel Rate Matching Hub" rev
2.00/0.04 addr 2
vscsi0 at root
scsibus2 at vscsi0: 256 targets
softraid0 at root
scsibus3 at softraid0: 256 targets
softraid0: sd1 was not shutdown properly
sd1 at scsibus3 targ 1 lun 0: <OPENBSD, SR CRYPTO, 006>
sd1: 953866MB, 512 bytes/sector, 1953519473 sectors
root on sd1a (5a23de4c02590db4.a) swap on sd1b dump on sd1b
WARNING: / was not properly unmounted
inteldrm0: 1366x768, 32bpp
wsdisplay0 at inteldrm0 mux 1: console (std, vt100 emulation), using wskbd0
wsdisplay0: screen 1-5 added (std, vt100 emulation)
initializing kernel modesetting (HAINAN 0x1002:0x666F 0x17AA:0x380C 0x00).
drm:pid0:si_init *ERROR* Expecting atombios for cayman GPU
drm:pid0:radeondrm_attachhook *ERROR* Fatal error during GPU init
[TTM] Memory type 2 has not been initialized
drm1 detached
radeondrm0 detached
"ATI Radeon HD 8500M" rev 0x00 at pci3 dev 0 function 0 not configured
syncing disks... done
rebooting...
OpenBSD 6.6-current (GENERIC.MP) #6: Sun Feb 2 19:35:42 CET 2020
mulander@napalm.local:/sys/arch/amd64/compile/GENERIC.MP
real mem = 8464887808 (8072MB)
avail mem = 8195850240 (7816MB)
mpath0 at root
scsibus0 at mpath0: 256 targets
mainbus0 at root
bios0 at mainbus0: SMBIOS rev. 2.7 @ 0xe6e40 (38 entries)
bios0: vendor LENOVO version "9ACN29WW" date 10/20/2014
bios0: LENOVO 20351
acpi0 at bios0: ACPI 5.0
acpi0: sleep states S0 S3 S4 S5
acpi0: tables DSDT FACP SLIC UEFI FPDT POAT ASF! HPET APIC MCFG WDAT SSDT BOOT
LPIT ASPT DBGP SSDT SSDT SSDT SSDT
acpi0: wakeup devices P0P1(S4) EHC1(S3) XHC_(S3) HDEF(S4) PXSX(S4) PXSX(S4)
RP03(S4) PXSX(S4) RP04(S4) PXSX(S4) RP05(S4) PEGP(S4) PEGA(S4) PXSX(S4)
PXSX(S4) PXSX(S4) [...]
acpitimer0 at acpi0: 3579545 Hz, 24 bits
acpihpet0 at acpi0: 14318179 Hz
acpimadt0 at acpi0 addr 0xfee00000: PC-AT compat
cpu0 at mainbus0: apid 0 (boot processor)
cpu0: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.87 MHz, 06-45-01
cpu0:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu0: 256KB 64b/line 8-way L2 cache
cpu0: smt 0, core 0, package 0
mtrr: Pentium Pro MTRR support, 10 var ranges, 88 fixed ranges
cpu0: apic clock running at 99MHz
cpu0: mwait min=64, max=64, C-substates=0.2.1.2.4.1.1.1, IBE
cpu1 at mainbus0: apid 1 (application processor)
cpu1: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.62 MHz, 06-45-01
cpu1:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu1: 256KB 64b/line 8-way L2 cache
cpu1: smt 1, core 0, package 0
cpu2 at mainbus0: apid 2 (application processor)
cpu2: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.62 MHz, 06-45-01
cpu2:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu2: 256KB 64b/line 8-way L2 cache
cpu2: smt 0, core 1, package 0
cpu3 at mainbus0: apid 3 (application processor)
cpu3: Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz, 1895.62 MHz, 06-45-01
cpu3:
FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CFLUSH,DS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE,SSE3,PCLMUL,DTES64,MWAIT,DS-CPL,VMX,EST,TM2,SSSE3,SDBG,FMA3,CX16,xTPR,PDCM,PCID,SSE4.1,SSE4.2,MOVBE,POPCNT,DEADLINE,AES,XSAVE,AVX,F16C,RDRAND,NXE,PAGE1GB,RDTSCP,LONG,LAHF,ABM,PERF,ITSC,FSGSBASE,TSC_ADJUST,BMI1,AVX2,SMEP,BMI2,ERMS,INVPCID,MD_CLEAR,IBRS,IBPB,STIBP,L1DF,SSBD,SENSOR,ARAT,XSAVEOPT,MELTDOWN
cpu3: 256KB 64b/line 8-way L2 cache
cpu3: smt 1, core 1, package 0
ioapic0 at mainbus0: apid 2 pa 0xfec00000, version 20, 40 pins
acpimcfg0 at acpi0
acpimcfg0: addr 0xe0000000, bus 0-255
acpiprt0 at acpi0: bus 0 (PCI0)
acpiprt1 at acpi0: bus -1 (P0P1)
acpiprt2 at acpi0: bus 1 (RP03)
acpiprt3 at acpi0: bus 2 (RP04)
acpiprt4 at acpi0: bus 3 (RP05)
acpiprt5 at acpi0: bus -1 (PEG0)
acpiprt6 at acpi0: bus -1 (PEG1)
acpiprt7 at acpi0: bus -1 (PEG2)
acpiec0 at acpi0
acpicpu0 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpicpu1 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpicpu2 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpicpu3 at acpi0: C3(200@506 mwait.1@0x60), C2(200@148 mwait.1@0x33),
C1(1000@1 mwait.1), PSS
acpipwrres0 at acpi0: AMD3, resource for RP05
acpipwrres1 at acpi0: AMD2, resource for RP05
acpipci0 at acpi0 PCI0: 0x00000000 0x00000011 0x00000001
"CIND0C60" at acpi0 not configured
acpibat0 at acpi0: BAT0 serial BAT20101001 oem "Lenovo IdeaPad"
"VPC2004" at acpi0 not configured
acpicmos0 at acpi0
"IDEA0102" at acpi0 not configured
"ETD0624" at acpi0 not configured
acpiac0 at acpi0: AC unit online
acpibtn0 at acpi0: LID0
acpibtn1 at acpi0: PWRB
acpivideo0 at acpi0: GFX0
acpivout0 at acpivideo0: DD1F
cpu0: using VERW MDS workaround (except on vmm entry)
cpu0: Enhanced SpeedStep 1895 MHz: speeds: 2601, 2600, 2500, 2300, 2200, 2000,
1900, 1800, 1600, 1500, 1400, 1200, 1100, 1000, 800, 754 MHz
pci0 at mainbus0 bus 0
pchb0 at pci0 dev 0 function 0 "Intel Core 4G Host" rev 0x0b
inteldrm0 at pci0 dev 2 function 0 "Intel HD Graphics" rev 0x0b
drm0 at inteldrm0
inteldrm0: msi
azalia0 at pci0 dev 3 function 0 "Intel Core 4G HD Audio" rev 0x0b: msi
azalia0: No codecs found
xhci0 at pci0 dev 20 function 0 "Intel 8 Series xHCI" rev 0x04: msi, xHCI 1.0
usb0 at xhci0: USB revision 3.0
uhub0 at usb0 configuration 1 interface 0 "Intel xHCI root hub" rev 3.00/1.00
addr 1
"Intel 8 Series MEI" rev 0x04 at pci0 dev 22 function 0 not configured
azalia1 at pci0 dev 27 function 0 "Intel 8 Series HD Audio" rev 0x04: msi
azalia1: codecs: Conexant/0x510f
audio0 at azalia1
ppb0 at pci0 dev 28 function 0 "Intel 8 Series PCIE" rev 0xe4: msi
pci1 at ppb0 bus 1
re0 at pci1 dev 0 function 0 "Realtek 8168" rev 0x10: RTL8168GU/8111GU
(0x5080), msi, address 68:f7:28:39:b2:85
rgephy0 at re0 phy 7: RTL8251 PHY, rev. 0
ppb1 at pci0 dev 28 function 3 "Intel 8 Series PCIE" rev 0xe4: msi
pci2 at ppb1 bus 2
"Atheros AR9565" rev 0x01 at pci2 dev 0 function 0 not configured
ppb2 at pci0 dev 28 function 4 "Intel 8 Series PCIE" rev 0xe4: msi
pci3 at ppb2 bus 3
3:0:0: rom address conflict 0xfffe0000/0x20000
radeondrm0 at pci3 dev 0 function 0 "ATI Radeon HD 8500M" rev 0x00
drm1 at radeondrm0
radeondrm0: msi
ehci0 at pci0 dev 29 function 0 "Intel 8 Series USB" rev 0x04: apic 2 int 23
usb1 at ehci0: USB revision 2.0
uhub1 at usb1 configuration 1 interface 0 "Intel EHCI root hub" rev 2.00/1.00
addr 1
pcib0 at pci0 dev 31 function 0 "Intel 8 Series LPC" rev 0x04
ahci0 at pci0 dev 31 function 2 "Intel 8 Series AHCI" rev 0x04: msi, AHCI 1.3
ahci0: port 0: 6.0Gb/s
ahci0: port 1: 1.5Gb/s
scsibus1 at ahci0: 32 targets
sd0 at scsibus1 targ 0 lun 0: <ATA, WDC WD10JPCX-24U, 01.0> naa.50014ee60528f927
sd0: 953869MB, 512 bytes/sector, 1953525168 sectors
cd0 at scsibus1 targ 1 lun 0: <PLDS, DVD-RW DA8A6SH, GL61> removable
ichiic0 at pci0 dev 31 function 3 "Intel 8 Series SMBus" rev 0x04: apic 2 int 18
iic0 at ichiic0
spdmem0 at iic0 addr 0x50: 4GB DDR3 SDRAM PC3-12800 SO-DIMM
spdmem1 at iic0 addr 0x52: 4GB DDR3 SDRAM PC3-12800 SO-DIMM
isa0 at pcib0
isadma0 at isa0
pckbc0 at isa0 port 0x60/5 irq 1 irq 12
pckbd0 at pckbc0 (kbd slot)
wskbd0 at pckbd0: console keyboard
pms0 at pckbc0 (aux slot)
wsmouse0 at pms0 mux 0
pms0: Elantech Touchpad, version 4, firmware 0x594f03
pcppi0 at isa0 port 0x61
spkr0 at pcppi0
run0 at uhub0 port 2 configuration 1 interface 0 "Ralink 802.11 n WLAN" rev
2.00/1.01 addr 2
run0: MAC/BBP RT5592 (rev 0x0222), RF RT5592 (MIMO 2T2R), address
e8:94:f6:10:a6:a2
ugen0 at uhub0 port 4 "Generic USB2.0-CRW" rev 2.00/39.60 addr 3
uvideo0 at uhub0 port 6 configuration 1 interface 0 "J58E8R30X Lenovo
EasyCamera" rev 2.00/0.06 addr 4
video0 at uvideo0
ugen1 at uhub0 port 7 "Atheros Communications product 0x3004" rev 1.10/0.01
addr 5
uhub2 at uhub1 port 1 configuration 1 interface 0 "Intel Rate Matching Hub" rev
2.00/0.04 addr 2
vscsi0 at root
scsibus2 at vscsi0: 256 targets
softraid0 at root
scsibus3 at softraid0: 256 targets
sd1 at scsibus3 targ 1 lun 0: <OPENBSD, SR CRYPTO, 006>
sd1: 953866MB, 512 bytes/sector, 1953519473 sectors
root on sd1a (5a23de4c02590db4.a) swap on sd1b dump on sd1b
inteldrm0: 1366x768, 32bpp
wsdisplay0 at inteldrm0 mux 1: console (std, vt100 emulation), using wskbd0
wsdisplay0: screen 1-5 added (std, vt100 emulation)
initializing kernel modesetting (HAINAN 0x1002:0x666F 0x17AA:0x380C 0x00).
drm:pid0:si_init *ERROR* Expecting atombios for cayman GPU
drm:pid0:radeondrm_attachhook *ERROR* Fatal error during GPU init
[TTM] Memory type 2 has not been initialized
drm1 detached
radeondrm0 detached
"ATI Radeon HD 8500M" rev 0x00 at pci3 dev 0 function 0 not configured
