seanghaeli opened a new pull request, #66610:
URL: https://github.com/apache/airflow/pull/66610
## Summary
Make deadline callback logs visible in the Airflow UI. When a deadline is
missed and a callback fires, users can now view the callback's execution logs
directly from the web interface.
## Changes
**Backend:**
- New `CallbackLogReader` utility
(`airflow-core/src/airflow/utils/log/callback_log_reader.py`) — reads callback
logs from remote or local storage using the same `RemoteLogIO` infrastructure
as task logs
- New API endpoint `GET
/ui/dags/{dag_id}/dagRuns/{dag_run_id}/callbacks/{callback_id}/logs` on the
deadlines UI router
- Updated `DeadlineResponse` datamodel — added `callback_id` and
`callback_state` fields
**Frontend:**
- `CallbackLogViewer.tsx` component — fetches and displays callback
execution logs in a modal dialog
- Simplified deadline status display: inline "Missed" badge + "Callback
Logs" button + expected/actual times (no success badge, no "Finished late"
text, no alert name)
## Motivation
Kaxil requested this: "Some way to know if a deadline didn't fire and it
failed: something on UI would be great, like Task log. If deadlines are
visible, it would be even better experience than previous SLAs."
## Dependencies
- Builds on #66379 (remote log upload for callbacks) which uploads the logs
to storage
- The log path format is `executor_callbacks/{dag_id}/{run_id}/{callback_id}`
---
##### Was generative AI tooling used to co-author this PR?
- [X] Yes — Claude Code (Opus 4.6)
Generated-by: Claude Code (Opus 4.6) following [the
guidelines](https://github.com/apache/airflow/blob/main/contributing-docs/05_pull_requests.rst#gen-ai-assisted-contributions)
## End-to-End Verification
Verified in breeze with full Airflow stack (scheduler + dag-processor +
triggerer + API server + LocalExecutor). A test DAG with a `SyncCallback`
deadline was parsed, unpaused, scheduled, and the deadline missed naturally.
The callback executed through `supervise_callback()` and produced real
structured logs.

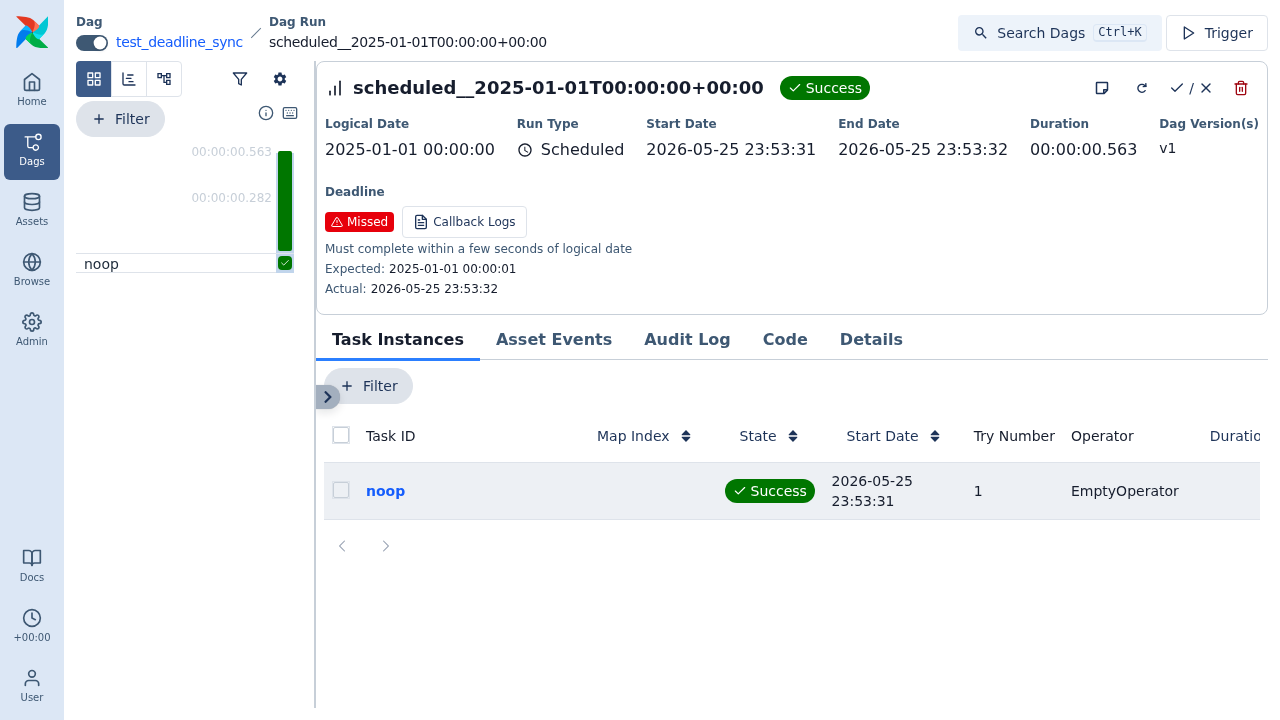

### Dag Run Page — Deadline Status with Callback

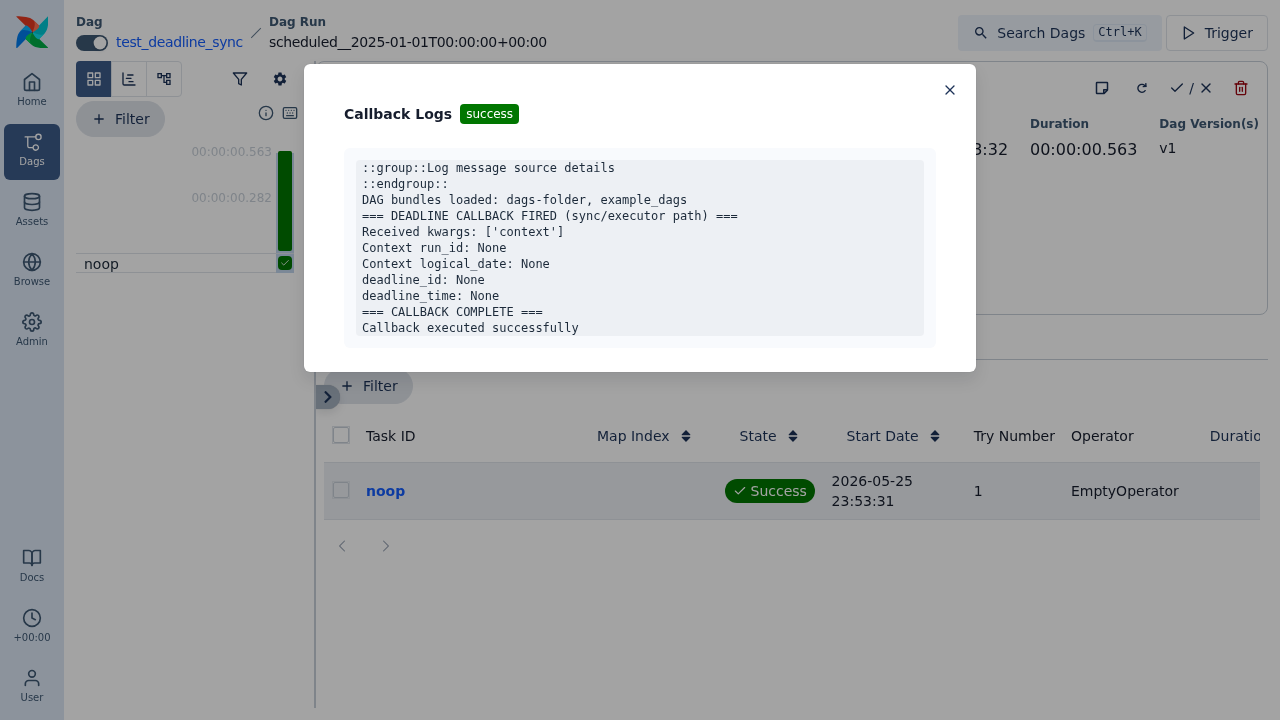

### Callback Logs Modal
**Verified:**
- 6/6 API unit tests pass (`test_callback_logs.py`)
- 12/12 log reader unit tests pass (`test_callback_log_reader.py`)
- Path traversal protection via regex validation + `os.path.commonpath`
containment check
- Stress tested with 10K-100K line logs: 10K lines renders in 0.23s,
acceptable for realistic callback output
--
