deepujain opened a new pull request, #75725:
URL: https://github.com/apache/airflow/pull/75725

   **Title:** Apply Gantt date filters to mapped tasks and task groups

   ## Summary

   After clearing and rerunning tasks, a Gantt date filter can hide old
individual attempts while mapped-task and task-group bars still span the old
dates. For example, selecting a two-hour attempt on 31 December can leave an
aggregate bar stretching back to 1 December. The aggregate bars now use the
same date window as individual attempts.

   ## Changes

   The summary stream receives the selected bounds and filters attempts before
aggregation. It includes matching archived attempts, omits pending retry
placeholders and uses the current run's live Dag structure. An empty result
replaces the previous summary so bars disappear when nothing matches. Clearing
the filter restores the existing unfiltered behavior.

   #73555 added the selector and individual-attempt filtering; this completes
the aggregate-bar limitation it documented. Earlier proposals #64204, #64387
and #74013 closed without merging.

   ## Visual evidence

   The same browser fixture uses the production Gantt component and HTTP hooks
with attempts on 1 and 31 December. With Start Date set to 31 December, the
axis spans roughly 30 days before the fix and two hours afterward. This fixture
does not run a live scheduler.

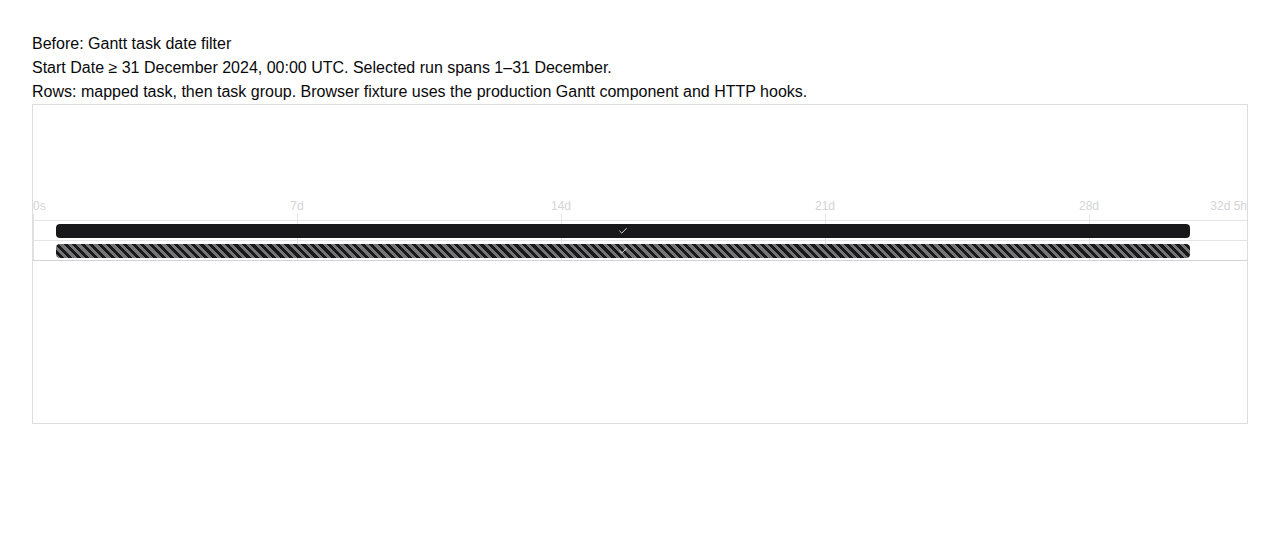

   Before:

   ![Gantt date window before the
fix](https://raw.githubusercontent.com/deepujain/airflow/7c1530aab889cdf1cc05aa0dbc875157e69baa33/files/gantt-before.png)

   After:

   ![Gantt date window after the
fix](https://raw.githubusercontent.com/deepujain/airflow/7c1530aab889cdf1cc05aa0dbc875157e69baa33/files/gantt-after.png)

   ## Test plan

   - [x] Reproduced missing request bounds and the incorrect aggregate start
date with failing tests.
   - [x] Covered mapped tasks, groups, archived attempts, pending retries,
version changes and empty results. The stream regression also clears and
reapplies filters.
   - [x] Passed the full UI suite: 257 files, 2,181 tests passed and 4 skipped,
using Node 22.19.
   - [x] Passed the SimpleAuthManager UI test, scoped pre-commit and manual
checks, and TypeScript compilation.
   - [x] Passed the selected API/Always suites: 6,469 database tests and 1,255
non-DB tests. Passed the selected common.compat/fab suites: 415 database tests
and 615 non-DB tests. Existing skips and one expected failure retain their
repository-defined reasons.
   - [x] Built the core, common.compat and fab documentation.
   - [x] Repeated all 125 focused API tests on the current head after rebasing
onto current main. The broader suites above ran before that rebase; all files
in this fix are unchanged.
   - [ ] Hosted CI and review.

   closes: #63715

   ---

   ##### Was generative AI tooling used to co-author this PR?

   - [X] Yes (OpenAI Codex)

   Generated-by: OpenAI Codex following [the
guidelines](https://github.com/apache/airflow/blob/main/contributing-docs/05_pull_requests.rst#gen-ai-assisted-contributions)



--
