yefei-ddyw opened a new issue #3910:
URL: https://github.com/apache/incubator-dolphinscheduler/issues/3910


   *For better global communication, please give priority to using English
description, thx! *

   *Please review
https://dolphinscheduler.apache.org/en-us/docs/development/issue.html when
describe an issue.*

   **Describe the question**
   Why my pool of yarn couldn't shows the same and DS queue?


   **Which version of DolphinScheduler:**
    -[1.3.2-preview]

   **Which version of CDH:**
   6.2.1

   **Additional context**
   I have some questions about the queue of ds.The document shows the queue of
ds is due to MapReduce,Spark and so on.But,I find that the logs of
yarn(host:19888) shows the queue is tenant code of ds,not the queue of ds.Why ?
   And the document shows the tenant code is the user of Linux.So,the queue of
yarn is the tenant code?
   Therefore,I test the tenant and queue of ds.Here are the results.
   The following is the configuration of DS and Resources Pools of yarn.

![DS队列管理](https://user-images.githubusercontent.com/68679394/95965568-a8568080-0e3c-11eb-8ae9-930c376428c7.jpg)

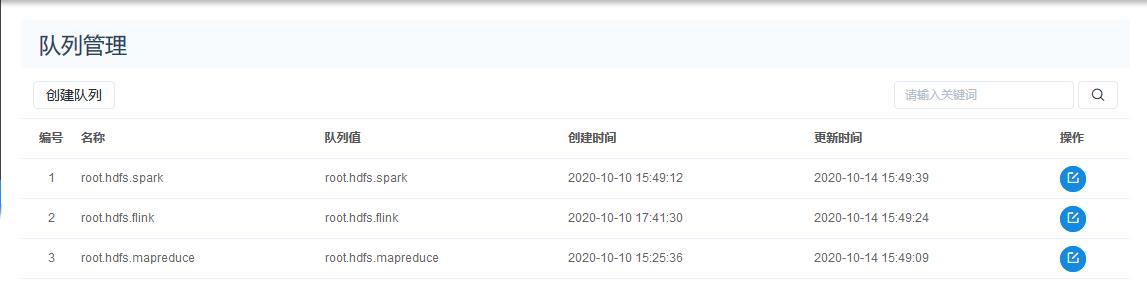

   The image is the queue of DS.

![DS用户管理](https://user-images.githubusercontent.com/68679394/95965759-e2278700-0e3c-11eb-806e-abfcd062acaf.jpg)
   The image is the users of DS.

![DS租户管理](https://user-images.githubusercontent.com/68679394/95965807-ece21c00-0e3c-11eb-8d45-6a8245145408.jpg)

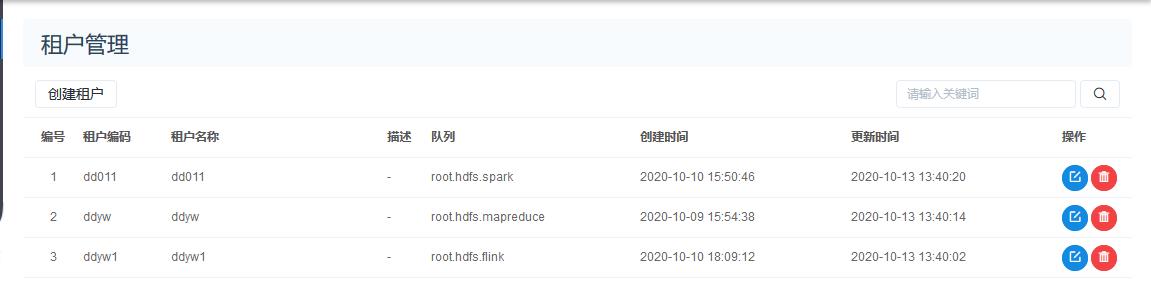

   The image is the tenant of DS.

![yarn所有资源池](https://user-images.githubusercontent.com/68679394/95965860-04210980-0e3d-11eb-8359-3dd38e5c3eda.jpg)
   The image is all the pools of yarn.

![yarn资源池放置规则1](https://user-images.githubusercontent.com/68679394/95965991-30d52100-0e3d-11eb-9ee1-2bf6ad6323b8.jpg)

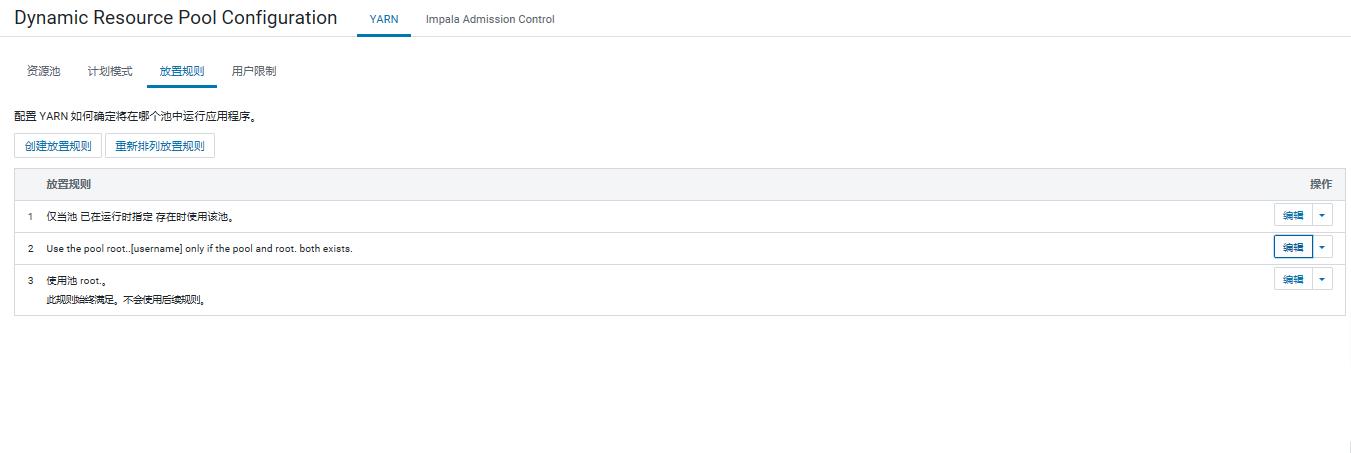

   The image is the resource pool placement rules of yarn.

![yarn资源池放置规则2](https://user-images.githubusercontent.com/68679394/95966174-6843cd80-0e3d-11eb-8108-0cd035492f63.jpg)

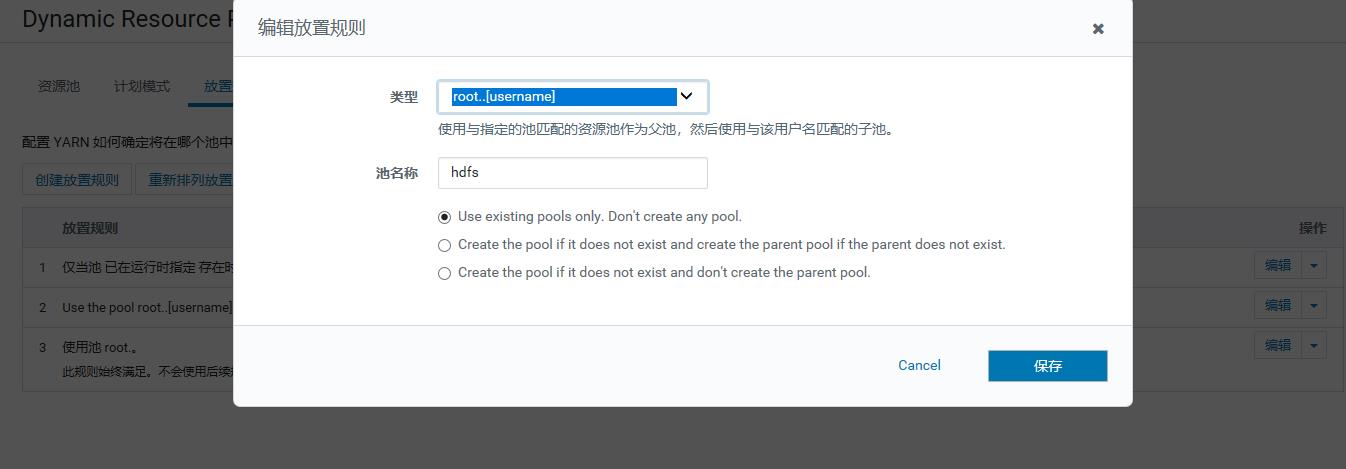

   The image is the resource pool placement rules of yarn also.

![yarn日志](https://user-images.githubusercontent.com/68679394/95966233-77c31680-0e3d-11eb-8fd5-7782cba510fe.jpg)

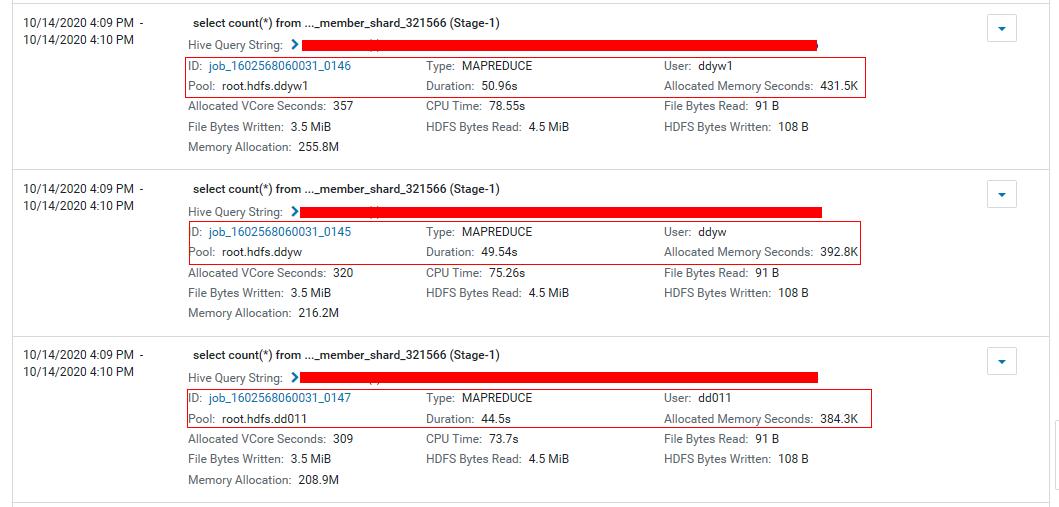

   The image is the logs of yarn.

   **Requirement or improvement**
   - Please describe about your requirements or improvement suggestions.



----------------------------------------------------------------
