GitHub user danny0405 opened a pull request:
https://github.com/apache/storm/pull/2389
Storm heartbeats promotion
Storm now doesn't support large cluster[ for example thousand of
supervisors] very well, for our production, topology submission/killing is very
ineffective when cluster grows to be large, i checkout the heartbeats strategy
and find that actually it can be promoted.

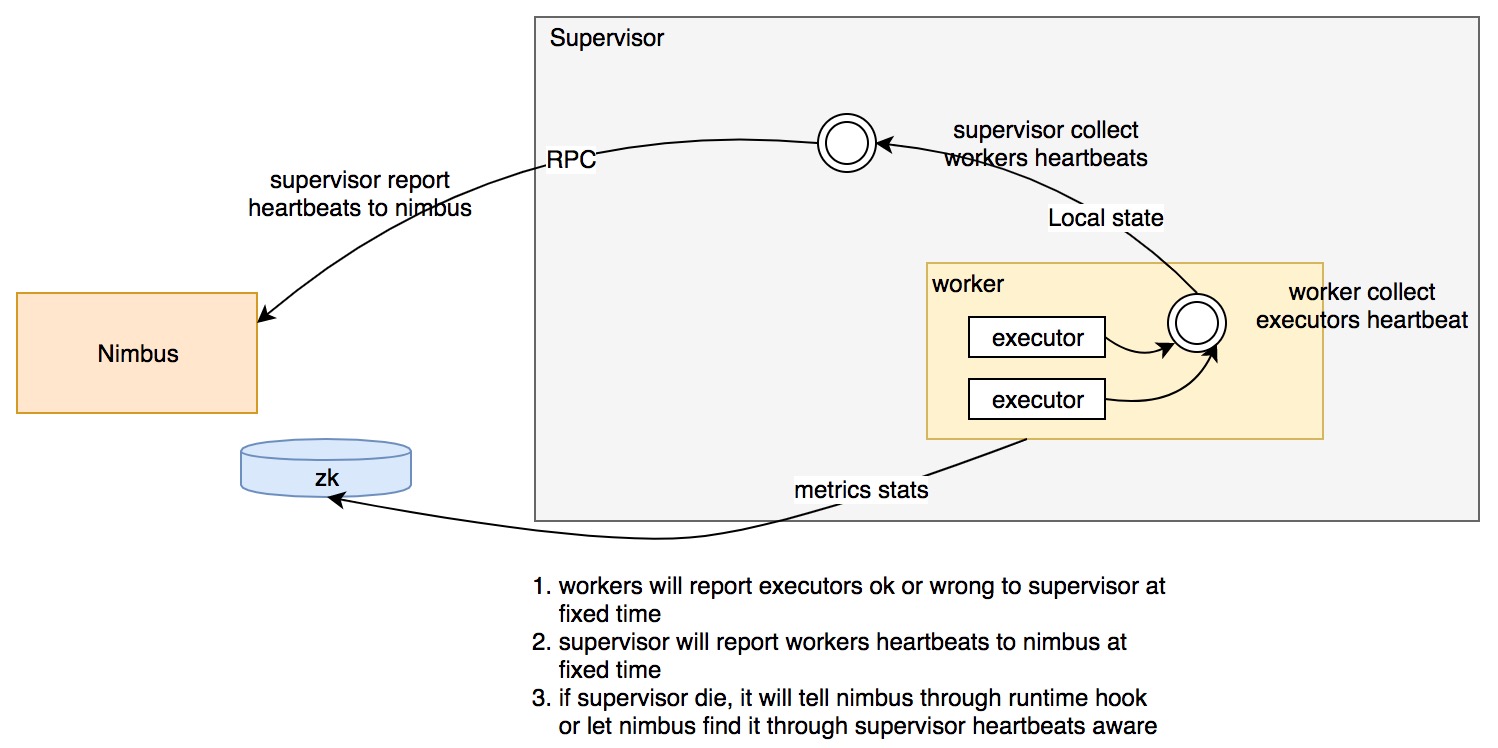

For heartbeats promotion:
1. Nimbus will not collect heartbeats info from zookeeper every scheduling
round any more, instead, it will use directly an updated cache which is updated
when a heartbeat reports
2. Report heartbeats through supervisor RPC [supervisor will collect local
heartbeats from local workers reported state which is in local state store]
3. Separate metrics data and heartbeats, which means that the new heartbeat
will not contains metrics info now, so it is very lightweight and efficient
4. Metrics data will still be reported to zookeeper, we only use it for
collecting UI stats info [in the old mode, UI stats is got from heartbeats
cache, the new mode will fetch it from zookeeper directly]
With this new heartbeats mode, heartbeats will be reported very
efficiently, for our production, we have about 30 workers per node/supervisor,

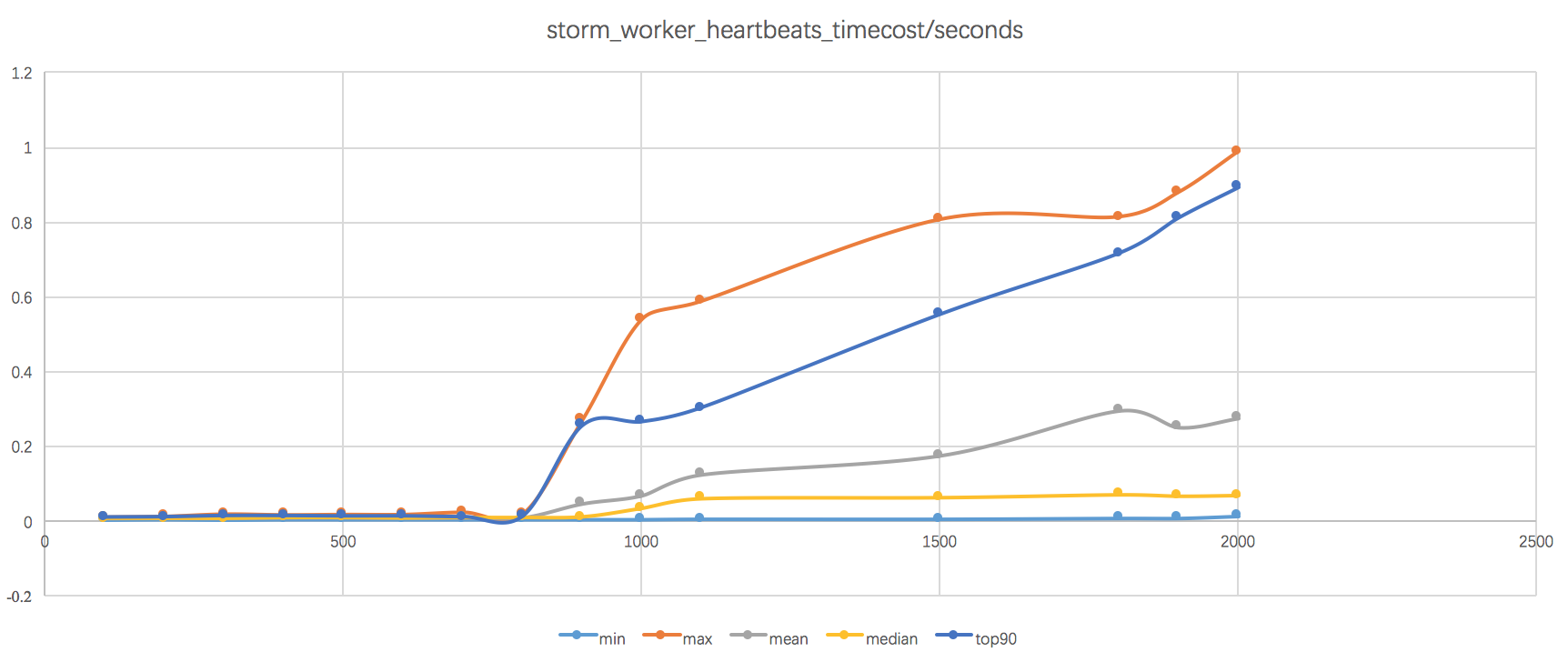

so i mock the data and did a pressure test for nimbus heartbeats response time:
We can see that for a 1 second heartbeat report frequency, nimbus will
support at least 2000 nodes, for our production, we set the worker heartbeats
reporting interval to 5 seconds, so it means that we can have a 5* 2000 nodes
cluster for just one cluster
Because we do not need to collect all heartbeats data and compute
alive/free slots for every scheduling round[ use a computed cache directly], we
schedule topologies very efficiently[ only 2 minutes for 5000 topologies]
About robustness:
1. when nimbus collapse, workers works fine[ like the original ], when
leader starts up, it will wait for a complete heartbeats for all node and
start to work again, i also make the strategy pluggable, user can override the
default one
2. when supervisor goes down, workers still workers fine,[ it will report
heartbeat directly to nimbus through RPC], when supervisor goes up, it will
just collect the heartbeats and reports to nimbus
3. when zk is unstable, it will not affect the heartbeats[which will cause
workers all collapse for old mode] any more
This is my JIRA task: https://issues.apache.org/jira/browse/STORM-2693
This is the assignments promotion PR:
https://github.com/apache/storm/pull/2319
You can merge this pull request into a Git repository by running:
$ git pull https://github.com/danny0405/storm heartbeats-promotion
Alternatively you can review and apply these changes as the patch at:
https://github.com/apache/storm/pull/2389.patch
To close this pull request, make a commit to your master/trunk branch
with (at least) the following in the commit message:
This closes #2389
----
