This is an automated email from the ASF dual-hosted git repository.
pingsutw pushed a commit to branch master
in repository https://gitbox.apache.org/repos/asf/submarine.git
The following commit(s) were added to refs/heads/master by this push:
new dee3a83 SUBMARINE-1006. Upgrade tensorflow to version 2.6
dee3a83 is described below
commit dee3a837b13c030d35bddf14b5293d21da064e66
Author: featherchen <garychen0975321...@gmail.com>
AuthorDate: Tue Oct 12 12:16:58 2021 +0800
SUBMARINE-1006. Upgrade tensorflow to version 2.6
### What is this PR for?
<!-- A few sentences describing the overall goals of the pull request's
commits.
First time? Check out the contributing guide -
https://submarine.apache.org/contribution/contributions.html
-->
Upgrade tensorflow to 2.6 and update the test.
In this PR , I used tf.compat.v1 to support tensorflow2.0, and ignored
distributive training(since the config is a little different to tf1). This is a
temporary step, and I will use primitive tf2 functions to rewrite it and solve
the distributive training problem in the future.
### What type of PR is it?
Feature
### Todos
### What is the Jira issue?
<!-- * Open an issue on Jira
https://issues.apache.org/jira/browse/SUBMARINE/
* Put link here, and add [SUBMARINE-*Jira number*] in PR title, eg.
`SUBMARINE-23. PR title`
-->
https://issues.apache.org/jira/projects/SUBMARINE/issues/SUBMARINE-1006?filter=myopenissues
### How should this be tested?
<!--
* First time? Setup Travis CI as described on
https://submarine.apache.org/contribution/contributions.html#continuous-integration
* Strongly recommended: add automated unit tests for any new or changed
behavior
* Outline any manual steps to test the PR here.
-->
Use the tests in pysubmarine/tests/ml/tensorflow_v2

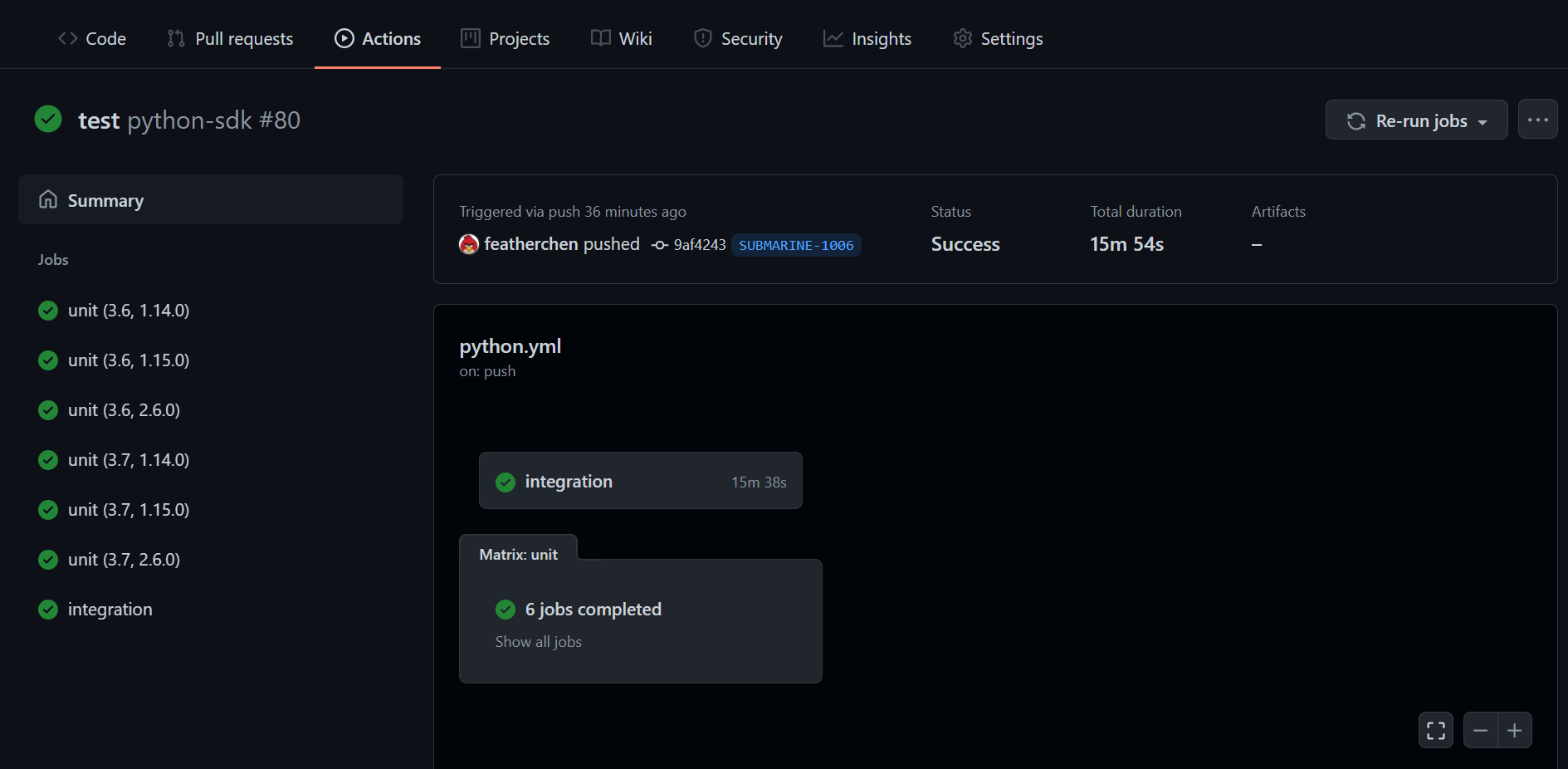

### Screenshots (if appropriate)
### Questions:
* Do the license files need updating? No
* Are there breaking changes for older versions? No
* Does this need new documentation? No
Author: featherchen <garychen0975321...@gmail.com>
Signed-off-by: Kevin <pings...@apache.org>
Closes #776 from featherchen/SUBMARINE-1006 and squashes the following
commits:
da56496e [featherchen] SUBMARINE-1006. Add tf2 sdk
cd8d37ea [featherchen] SUBMARINE-1006. format and workflow
e7a48437 [featherchen] SUBMARINE-1006. add tf_v2 and corresponding tests
---
.github/workflows/python.yml | 7 +-
submarine-sdk/pysubmarine/setup.py | 2 +-
.../ml/tensorflow_v2/__init__.py} | 11 -
.../ml/tensorflow_v2/input/__init__.py} | 11 +-
.../submarine/ml/tensorflow_v2/input/input.py | 58 +++++
.../ml/tensorflow_v2/layers/__init__.py} | 11 -
.../submarine/ml/tensorflow_v2/layers/core.py | 248 +++++++++++++++++++++
.../ml/tensorflow_v2/model/__init__.py} | 14 +-
.../ml/tensorflow_v2/model/base_tf_model.py | 106 +++++++++
.../submarine/ml/tensorflow_v2/model/ccpm.py | 73 ++++++
.../submarine/ml/tensorflow_v2/model/deepfm.py | 60 +++++
.../submarine/ml/tensorflow_v2/model/fm.py | 45 ++++
.../submarine/ml/tensorflow_v2/model/nfm.py | 52 +++++
.../submarine/ml/tensorflow_v2/optimizer.py | 49 ++++
.../ml/tensorflow_v2/parameters.py} | 35 ++-
.../ml/tensorflow_v2/registries.py} | 11 +-
.../pysubmarine/submarine/utils/tf_utils_v2.py | 146 ++++++++++++
.../tensorflow/{model/test_fm.py => __init__.py} | 11 -
.../tensorflow/model/{test_fm.py => __init__.py} | 11 -
.../ml/tensorflow/model/test_base_tf_model.py | 2 +
.../tests/ml/tensorflow/model/test_ccpm.py | 4 +
.../tests/ml/tensorflow/model/test_deepfm.py | 4 +
.../tests/ml/tensorflow/model/test_fm.py | 4 +
.../tests/ml/tensorflow/model/test_nfm.py | 4 +
.../tests/ml/tensorflow/test_optimizer.py | 2 +
.../model/test_fm.py => tensorflow_v2/__init__.py} | 11 -
.../tests/ml/tensorflow_v2/model/conftest.py | 50 +++++
.../model/test_base_tf_model.py | 4 +-
.../model/test_ccpm.py | 6 +-
.../model/test_deepfm.py | 6 +-
.../{tensorflow => tensorflow_v2}/model/test_fm.py | 6 +-
.../model/test_nfm.py | 6 +-
.../test_optimizer.py | 4 +-
.../pysubmarine/tests/utils/test_tf_utils.py | 2 +
.../{test_tf_utils.py => test_tf_utils_v2.py} | 19 +-
35 files changed, 988 insertions(+), 107 deletions(-)
diff --git a/.github/workflows/python.yml b/.github/workflows/python.yml
index a741316..f5b6b64 100644
--- a/.github/workflows/python.yml
+++ b/.github/workflows/python.yml
@@ -25,7 +25,7 @@ jobs:
strategy:
matrix:
python-version: [3.6, 3.7]
- tf-version: [1.14.0, 1.15.0]
+ tf-version: [1.14.0, 1.15.0, 2.6.0]
fail-fast: false
steps:
- uses: actions/checkout@v2
@@ -38,6 +38,8 @@ jobs:
pip install --upgrade pip
pip install --no-cache-dir tensorflow==${{ matrix.tf-version }}
pip install --no-cache-dir torch==1.5.0
+ pip install --no-cache-dir tensorflow-addons
+ pip install --no-cache-dir tf_slim
pip install --no-cache-dir ./submarine-sdk/pysubmarine/.
pip install -r
./submarine-sdk/pysubmarine/github-actions/test-requirements.txt
pip install -r ./dev-support/style-check/python/lint-requirements.txt
@@ -46,6 +48,7 @@ jobs:
run: ./dev-support/style-check/python/lint.sh
- name: Run unit test
run: pytest --cov=submarine -vs -m "not e2e"
+
integration:
runs-on: ubuntu-latest
timeout-minutes: 60
@@ -93,6 +96,8 @@ jobs:
run: |
pip install --upgrade pip
pip install --no-cache-dir -e
./submarine-sdk/pysubmarine/.[tf,pytorch]
+ pip install --no-cache-dir tensorflow-addons
+ pip install --no-cache-dir tf_slim
pip install -r
./submarine-sdk/pysubmarine/github-actions/test-requirements.txt
- name: Run integration test
working-directory: ./submarine-sdk/pysubmarine
diff --git a/submarine-sdk/pysubmarine/setup.py
b/submarine-sdk/pysubmarine/setup.py
index 6355434..eb2a687 100644
--- a/submarine-sdk/pysubmarine/setup.py
+++ b/submarine-sdk/pysubmarine/setup.py
@@ -43,7 +43,7 @@ setup(
],
extras_require={
"tf": ["tensorflow>=1.14.0,<2.0.0"],
- "tf-latest": ["tensorflow"],
+ "tf2": ["tensorflow==2.6.0", "tf_slim==1.1.0",
"tensorflow-addons==0.14.0"],
"pytorch": ["torch>=1.5.0", "torchvision>=0.6.0"],
},
classifiers=[
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/__init__.py
similarity index 78%
copy from submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
copy to submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/__init__.py
index bedda94..a6eb1b5 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
+++ b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/__init__.py
@@ -12,14 +12,3 @@
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
-
-from submarine.ml.tensorflow.model import FM
-
-
-def test_run_fm(get_model_param):
- params = get_model_param
-
- model = FM(model_params=params)
- model.train()
- model.evaluate()
- model.predict()
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/input/__init__.py
similarity index 79%
copy from submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
copy to submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/input/__init__.py
index bedda94..11f1374 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
+++ b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/input/__init__.py
@@ -13,13 +13,6 @@
# See the License for the specific language governing permissions and
# limitations under the License.
-from submarine.ml.tensorflow.model import FM
+from .input import libsvm_input_fn
-
-def test_run_fm(get_model_param):
- params = get_model_param
-
- model = FM(model_params=params)
- model.train()
- model.evaluate()
- model.predict()
+__all__ = ["libsvm_input_fn"]
diff --git
a/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/input/input.py
b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/input/input.py
new file mode 100644
index 0000000..0cf98ae
--- /dev/null
+++ b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/input/input.py
@@ -0,0 +1,58 @@
+# Licensed to the Apache Software Foundation (ASF) under one or more
+# contributor license agreements. See the NOTICE file distributed with
+# this work for additional information regarding copyright ownership.
+# The ASF licenses this file to You under the Apache License, Version 2.0
+# (the "License"); you may not use this file except in compliance with
+# the License. You may obtain a copy of the License at
+#
+# http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+import logging
+
+import tensorflow as tf
+
+logger = logging.getLogger(__name__)
+
+AUTOTUNE = tf.data.experimental.AUTOTUNE
+
+
+def libsvm_input_fn(
+ filepath,
+ batch_size=256,
+ num_epochs=3, # pylint: disable=W0613
+ perform_shuffle=False,
+ delimiter=" ",
+ **kwargs
+):
+ def _input_fn():
+ def decode_libsvm(line):
+ columns = tf.compat.v1.string_split([line], delimiter)
+ labels = tf.strings.to_number(columns.values[0],
out_type=tf.float32)
+ splits = tf.compat.v1.string_split(columns.values[1:], ":")
+ id_vals = tf.reshape(splits.values, splits.dense_shape)
+ feat_ids, feat_vals = tf.split(id_vals, num_or_size_splits=2,
axis=1)
+ feat_ids = tf.strings.to_number(feat_ids, out_type=tf.int32)
+ feat_vals = tf.strings.to_number(feat_vals, out_type=tf.float32)
+ return {"feat_ids": feat_ids, "feat_vals": feat_vals}, labels
+
+ dataset = (
+ tf.data.TextLineDataset(filepath)
+ .map(decode_libsvm, num_parallel_calls=AUTOTUNE)
+ .prefetch(AUTOTUNE)
+ )
+
+ if perform_shuffle:
+ dataset = dataset.shuffle(buffer_size=batch_size)
+
+ dataset = dataset.repeat(num_epochs)
+ dataset = dataset.batch(batch_size)
+
+ return dataset
+
+ return _input_fn
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/layers/__init__.py
similarity index 78%
copy from submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
copy to submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/layers/__init__.py
index bedda94..a6eb1b5 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
+++ b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/layers/__init__.py
@@ -12,14 +12,3 @@
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
-
-from submarine.ml.tensorflow.model import FM
-
-
-def test_run_fm(get_model_param):
- params = get_model_param
-
- model = FM(model_params=params)
- model.train()
- model.evaluate()
- model.predict()
diff --git
a/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/layers/core.py
b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/layers/core.py
new file mode 100644
index 0000000..a75ff71
--- /dev/null
+++ b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/layers/core.py
@@ -0,0 +1,248 @@
+# Licensed to the Apache Software Foundation (ASF) under one or more
+# contributor license agreements. See the NOTICE file distributed with
+# this work for additional information regarding copyright ownership.
+# The ASF licenses this file to You under the Apache License, Version 2.0
+# (the "License"); you may not use this file except in compliance with
+# the License. You may obtain a copy of the License at
+#
+# http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+import tensorflow as tf
+import tf_slim as slim
+from tensorflow.keras.layers import Layer
+
+tf.compat.v1.disable_v2_behavior()
+
+
+def batch_norm_layer(x, train_phase, scope_bn, batch_norm_decay):
+ bn_train = slim.batch_norm(
+ x,
+ decay=batch_norm_decay,
+ center=True,
+ scale=True,
+ updates_collections=None,
+ is_training=True,
+ reuse=None,
+ scope=scope_bn,
+ )
+ bn_infer = slim.batch_norm(
+ x,
+ decay=batch_norm_decay,
+ center=True,
+ scale=True,
+ updates_collections=None,
+ is_training=False,
+ reuse=True,
+ scope=scope_bn,
+ )
+ return tf.cond(
+ pred=tf.cast(train_phase, tf.bool), true_fn=lambda: bn_train,
false_fn=lambda: bn_infer
+ )
+
+
+def dnn_layer(
+ inputs,
+ estimator_mode,
+ batch_norm,
+ deep_layers,
+ dropout,
+ batch_norm_decay=0.9,
+ l2_reg=0,
+ **kwargs
+):
+ """
+ The Multi Layer Perceptron
+ :param inputs: A tensor of at least rank 2 and static value for the last
dimension; i.e.
+ [batch_size, depth], [None, None, None, channels].
+ :param estimator_mode: Standard names for Estimator model modes. `TRAIN`,
`EVAL`, `PREDICT`
+ :param batch_norm: Whether use BatchNormalization before activation or not.
+ :param batch_norm_decay: Decay for the moving average.
+ Reasonable values for decay are close to 1.0, typically in the
+ multiple-nines range: 0.999, 0.99, 0.9, etc.
+ :param deep_layers: list of positive integer, the layer number and units
in each layer.
+ :param dropout: float in [0,1). Fraction of the units to dropout.
+ :param l2_reg: float between 0 and 1.
+ L2 regularizer strength applied to the kernel weights matrix.
+ """
+ with tf.compat.v1.variable_scope("DNN_Layer"):
+ if batch_norm:
+
+ if estimator_mode == tf.estimator.ModeKeys.TRAIN:
+ train_phase = True
+ else:
+ train_phase = False
+
+ for i in range(len(deep_layers)):
+ deep_inputs = slim.fully_connected(
+ inputs=inputs,
+ num_outputs=deep_layers[i],
+ weights_regularizer=tf.keras.regularizers.l2(0.5 * (l2_reg)),
+ scope="mlp%d" % i,
+ )
+ if batch_norm:
+ deep_inputs = batch_norm_layer(
+ deep_inputs,
+ train_phase=train_phase,
+ scope_bn="bn_%d" % i,
+ batch_norm_decay=batch_norm_decay,
+ )
+ if estimator_mode == tf.estimator.ModeKeys.TRAIN:
+ deep_inputs = tf.nn.dropout(deep_inputs, rate=1 - (dropout[i]))
+
+ deep_out = slim.fully_connected(
+ inputs=deep_inputs,
+ num_outputs=1,
+ activation_fn=tf.identity,
+ weights_regularizer=tf.keras.regularizers.l2(0.5 * (l2_reg)),
+ scope="deep_out",
+ )
+ deep_out = tf.reshape(deep_out, shape=[-1])
+ return deep_out
+
+
+def linear_layer(features, feature_size, field_size, l2_reg=0, **kwargs):
+ """
+ Layer which represents linear function.
+ :param features: input features
+ :param feature_size: size of features
+ :param field_size: number of fields in the features
+ :param l2_reg: float between 0 and 1.
+ L2 regularizer strength applied to the kernel weights matrix.
+ """
+ feat_ids = features["feat_ids"]
+ feat_ids = tf.reshape(feat_ids, shape=[-1, field_size])
+ feat_vals = features["feat_vals"]
+ feat_vals = tf.reshape(feat_vals, shape=[-1, field_size])
+
+ regularizer = tf.keras.regularizers.l2(0.5 * (l2_reg))
+ with tf.compat.v1.variable_scope("LinearLayer_Layer"):
+ linear_bias = tf.compat.v1.get_variable(
+ name="linear_bias", shape=[1],
initializer=tf.compat.v1.constant_initializer(0.0)
+ )
+ linear_weight = tf.compat.v1.get_variable(
+ name="linear_weight",
+ shape=[feature_size],
+ initializer=tf.compat.v1.glorot_normal_initializer(),
+ regularizer=regularizer,
+ )
+
+ feat_weights = tf.nn.embedding_lookup(params=linear_weight,
ids=feat_ids)
+ linear_out = (
+ tf.reduce_sum(input_tensor=tf.multiply(feat_weights, feat_vals),
axis=1) + linear_bias
+ )
+ return linear_out
+
+
+def embedding_layer(features, feature_size, field_size, embedding_size,
l2_reg=0, **kwargs):
+ """
+ Turns positive integers (indexes) into dense vectors of fixed size.
+ eg. [[4], [20]] -> [[0.25, 0.1], [0.6, -0.2]]
+ :param features: input features
+ :param feature_size: size of features
+ :param field_size: number of fields in the features
+ :param embedding_size: sparse feature embedding_size
+ :param l2_reg: float between 0 and 1.
+ L2 regularizer strength applied to the kernel weights matrix.
+ """
+ feat_ids = features["feat_ids"]
+ feat_ids = tf.reshape(feat_ids, shape=[-1, field_size])
+ feat_vals = features["feat_vals"]
+ feat_vals = tf.reshape(feat_vals, shape=[-1, field_size])
+
+ with tf.compat.v1.variable_scope("Embedding_Layer"):
+ regularizer = tf.keras.regularizers.l2(0.5 * (l2_reg))
+ embedding_dict = tf.compat.v1.get_variable(
+ name="embedding_dict",
+ shape=[feature_size, embedding_size],
+ initializer=tf.compat.v1.glorot_normal_initializer(),
+ regularizer=regularizer,
+ )
+ embeddings = tf.nn.embedding_lookup(params=embedding_dict,
ids=feat_ids)
+ feat_vals = tf.reshape(feat_vals, shape=[-1, field_size, 1])
+ embedding_out = tf.multiply(embeddings, feat_vals)
+ return embedding_out
+
+
+def bilinear_layer(inputs, **kwargs):
+ """
+ Bi-Interaction Layer used in Neural FM,compress the pairwise element-wise
product of features
+ into one single vector.
+ :param inputs: input features
+ """
+
+ with tf.compat.v1.variable_scope("BilinearLayer_Layer"):
+ sum_square = tf.square(tf.reduce_sum(input_tensor=inputs, axis=1))
+ square_sum = tf.reduce_sum(input_tensor=tf.square(inputs), axis=1)
+ bilinear_out = 0.5 * tf.subtract(sum_square, square_sum)
+ return bilinear_out
+
+
+def fm_layer(inputs, **kwargs):
+ """
+ Factorization Machine models pairwise (order-2) feature interactions
+ without linear term and bias.
+ :param inputs: input features
+ """
+ with tf.compat.v1.variable_scope("FM_Layer"):
+ sum_square = tf.square(tf.reduce_sum(input_tensor=inputs, axis=1))
+ square_sum = tf.reduce_sum(input_tensor=tf.square(inputs), axis=1)
+ fm_out = 0.5 * tf.reduce_sum(input_tensor=tf.subtract(sum_square,
square_sum), axis=1)
+ return fm_out
+
+
+class KMaxPooling(Layer):
+ """K Max pooling that selects the k biggest value along the specific axis.
+ Input shape
+ - nD tensor with shape: ``(batch_size, ..., input_dim)``.
+ Output shape
+ - nD tensor with shape: ``(batch_size, ..., output_dim)``.
+ Arguments
+ - **k**: positive integer, number of top elements to look for along the
``axis`` dimension.
+ - **axis**: positive integer, the dimension to look for elements.
+ """
+
+ def __init__(self, k=1, axis=-1, **kwargs):
+
+ self.dims = 1
+ self.k = k
+ self.axis = axis
+ super(KMaxPooling, self).__init__(**kwargs)
+
+ def build(self, input_shape):
+
+ if self.axis < 1 or self.axis > len(input_shape):
+ raise ValueError("axis must be 1~%d,now is %d" %
(len(input_shape), self.axis))
+
+ if self.k < 1 or self.k > input_shape[self.axis]:
+ raise ValueError("k must be in 1 ~ %d,now k is %d" %
(input_shape[self.axis], self.k))
+ self.dims = len(input_shape)
+ super(KMaxPooling, self).build(input_shape)
+
+ def call(self, inputs):
+
+ perm = list(range(self.dims))
+ perm[-1], perm[self.axis] = perm[self.axis], perm[-1]
+ shifted_input = tf.transpose(a=inputs, perm=perm)
+
+ top_k = tf.nn.top_k(shifted_input, k=self.k, sorted=True, name=None)[0]
+ output = tf.transpose(a=top_k, perm=perm)
+
+ return output
+
+ def compute_output_shape(self, input_shape):
+ output_shape = list(input_shape)
+ output_shape[self.axis] = self.k
+ return tuple(output_shape)
+
+ def get_config(
+ self,
+ ):
+ config = {"k": self.k, "axis": self.axis}
+ base_config = super(KMaxPooling, self).get_config()
+ return dict(list(base_config.items()) + list(config.items()))
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/model/__init__.py
similarity index 79%
copy from submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
copy to submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/model/__init__.py
index bedda94..6651f47 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
+++ b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/model/__init__.py
@@ -13,13 +13,9 @@
# See the License for the specific language governing permissions and
# limitations under the License.
-from submarine.ml.tensorflow.model import FM
+from .ccpm import CCPM
+from .deepfm import DeepFM
+from .fm import FM
+from .nfm import NFM
-
-def test_run_fm(get_model_param):
- params = get_model_param
-
- model = FM(model_params=params)
- model.train()
- model.evaluate()
- model.predict()
+__all__ = ["DeepFM", "FM", "NFM", "CCPM"]
diff --git
a/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/model/base_tf_model.py
b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/model/base_tf_model.py
new file mode 100644
index 0000000..eeb2cd4
--- /dev/null
+++
b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/model/base_tf_model.py
@@ -0,0 +1,106 @@
+# Licensed to the Apache Software Foundation (ASF) under one or more
+# contributor license agreements. See the NOTICE file distributed with
+# this work for additional information regarding copyright ownership.
+# The ASF licenses this file to You under the Apache License, Version 2.0
+# (the "License"); you may not use this file except in compliance with
+# the License. You may obtain a copy of the License at
+#
+# http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+import logging
+from abc import ABC
+
+import numpy as np
+import tensorflow as tf
+
+from submarine.ml.abstract_model import AbstractModel
+from submarine.ml.tensorflow_v2.parameters import default_parameters
+from submarine.ml.tensorflow_v2.registries import input_fn_registry
+from submarine.utils.env import get_from_dicts, get_from_json,
get_from_registry
+from submarine.utils.tf_utils_v2 import get_tf_config
+
+logger = logging.getLogger(__name__)
+
+
+# pylint: disable=W0221
+class BaseTFModel(AbstractModel, ABC):
+ def __init__(self, model_params=None, json_path=None):
+ super().__init__()
+ self.model_params = get_from_dicts(model_params, default_parameters)
+ self.model_params = get_from_json(json_path, self.model_params)
+ self._sanity_checks()
+ logging.info("Model parameters : %s", self.model_params)
+ self.input_type = self.model_params["input"]["type"]
+ self.model_dir = self.model_params["output"]["save_model_dir"]
+ self.config = get_tf_config(self.model_params)
+ self.model = tf.estimator.Estimator(
+ model_fn=self.model_fn,
+ model_dir=self.model_dir,
+ params=self.model_params,
+ config=self.config,
+ )
+
+ def train(self, train_input_fn=None, eval_input_fn=None, **kwargs):
+ """
+ Trains a pre-defined tensorflow estimator model with given training
data
+ :param train_input_fn: A function that provides input data for
training.
+ :param eval_input_fn: A function that provides input data for
evaluating.
+ :return: None
+ """
+ if train_input_fn is None:
+ train_input_fn = get_from_registry(self.input_type,
input_fn_registry)(
+ filepath=self.model_params["input"]["train_data"],
**self.model_params["training"]
+ )
+ if eval_input_fn is None:
+ eval_input_fn = get_from_registry(self.input_type,
input_fn_registry)(
+ filepath=self.model_params["input"]["valid_data"],
**self.model_params["training"]
+ )
+
+ train_spec = tf.estimator.TrainSpec(input_fn=train_input_fn)
+ eval_spec = tf.estimator.EvalSpec(input_fn=eval_input_fn)
+ tf.estimator.train_and_evaluate(self.model, train_spec, eval_spec,
**kwargs)
+
+ def evaluate(self, eval_input_fn=None, **kwargs):
+ """
+ Evaluates a pre-defined Tensorflow estimator model with given evaluate
data
+ :param eval_input_fn: A function that provides input data for
evaluating.
+ :return: A dict containing the evaluation metrics specified in
`eval_input_fn` keyed by
+ name, as well as an entry `global_step` which contains the value of the
+ global step for which this evaluation was performed
+ """
+ if eval_input_fn is None:
+ eval_input_fn = get_from_registry(self.input_type,
input_fn_registry)(
+ filepath=self.model_params["input"]["valid_data"],
**self.model_params["training"]
+ )
+
+ return self.model.evaluate(input_fn=eval_input_fn, **kwargs)
+
+ def predict(self, predict_input_fn=None, **kwargs):
+ """
+ Yields predictions with given features.
+ :param predict_input_fn: A function that constructs the features.
+ Prediction continues until input_fn raises an end-of-input exception
+ :return: Evaluated values of predictions tensors.
+ """
+ if predict_input_fn is None:
+ predict_input_fn = get_from_registry(self.input_type,
input_fn_registry)(
+ filepath=self.model_params["input"]["test_data"],
**self.model_params["training"]
+ )
+
+ return self.model.predict(input_fn=predict_input_fn, **kwargs)
+
+ def _sanity_checks(self):
+ assert "input" in self.model_params, "Does not define any input
parameters"
+ assert "type" in self.model_params["input"], "Does not define any
input type"
+ assert "output" in self.model_params, "Does not define any output
parameters"
+
+ def model_fn(self, features, labels, mode, params):
+ seed = params["training"]["seed"]
+ np.random.seed(seed)
+ tf.compat.v1.set_random_seed(seed)
diff --git a/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/model/ccpm.py
b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/model/ccpm.py
new file mode 100644
index 0000000..5657294
--- /dev/null
+++ b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/model/ccpm.py
@@ -0,0 +1,73 @@
+# Licensed to the Apache Software Foundation (ASF) under one or more
+# contributor license agreements. See the NOTICE file distributed with
+# this work for additional information regarding copyright ownership.
+# The ASF licenses this file to You under the Apache License, Version 2.0
+# (the "License"); you may not use this file except in compliance with
+# the License. You may obtain a copy of the License at
+#
+# http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+import logging
+
+import tensorflow as tf
+
+from submarine.ml.tensorflow_v2.layers.core import (
+ KMaxPooling,
+ dnn_layer,
+ embedding_layer,
+ linear_layer,
+)
+from submarine.ml.tensorflow_v2.model.base_tf_model import BaseTFModel
+from submarine.utils.tf_utils_v2 import get_estimator_spec
+
+logger = logging.getLogger(__name__)
+
+
+class CCPM(BaseTFModel):
+ def model_fn(self, features, labels, mode, params):
+ super().model_fn(features, labels, mode, params)
+
+ if len(params["training"]["conv_kernel_width"]) !=
len(params["training"]["conv_filters"]):
+ raise ValueError("conv_kernel_width must have same element with
conv_filters")
+
+ linear_logit = linear_layer(features, **params["training"])
+ embedding_outputs = embedding_layer(features, **params["training"])
+ conv_filters = params["training"]["conv_filters"]
+ conv_kernel_width = params["training"]["conv_kernel_width"]
+
+ n = params["training"]["embedding_size"]
+ conv_filters_len = len(conv_filters)
+ conv_input = tf.concat(embedding_outputs, axis=1)
+
+ pooling_result = tf.keras.layers.Lambda(lambda x: tf.expand_dims(x,
axis=3))(conv_input)
+
+ for i in range(1, conv_filters_len + 1):
+ filters = conv_filters[i - 1]
+ width = conv_kernel_width[i - 1]
+ p = pow(i / conv_filters_len, conv_filters_len - i)
+ k = max(1, int((1 - p) * n)) if i < conv_filters_len else 3
+
+ conv_result = tf.keras.layers.Conv2D(
+ filters=filters,
+ kernel_size=(width, 1),
+ strides=(1, 1),
+ padding="same",
+ activation="tanh",
+ use_bias=True,
+ )(pooling_result)
+
+ pooling_result = KMaxPooling(k=min(k, int(conv_result.shape[1])),
axis=1)(conv_result)
+
+ flatten_result = tf.keras.layers.Flatten()(pooling_result)
+ deep_logit = dnn_layer(flatten_result, mode, **params["training"])
+
+ with tf.compat.v1.variable_scope("CCPM_out"):
+ logit = linear_logit + deep_logit
+
+ return get_estimator_spec(logit, labels, mode, params)
diff --git
a/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/model/deepfm.py
b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/model/deepfm.py
new file mode 100644
index 0000000..397ac4f
--- /dev/null
+++ b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/model/deepfm.py
@@ -0,0 +1,60 @@
+# Licensed to the Apache Software Foundation (ASF) under one or more
+# contributor license agreements. See the NOTICE file distributed with
+# this work for additional information regarding copyright ownership.
+# The ASF licenses this file to You under the Apache License, Version 2.0
+# (the "License"); you may not use this file except in compliance with
+# the License. You may obtain a copy of the License at
+#
+# http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+"""
+Tensorflow implementation of DeepFM
+
+Reference:
+[1] DeepFM: A Factorization-Machine based Neural Network for CTR Prediction,
+ Huifeng Guo, Ruiming Tang, Yunming Yey, Zhenguo Li, Xiuqiang He
+[2] Tensorflow implementation of DeepFM for CTR prediction
+ https://github.com/ChenglongChen/tensorflow-DeepFM
+[3] DeepCTR implementation of DeepFM for CTR prediction
+ https://github.com/shenweichen/DeepCTR
+"""
+
+import logging
+
+import tensorflow as tf
+
+from submarine.ml.tensorflow_v2.layers.core import (
+ dnn_layer,
+ embedding_layer,
+ fm_layer,
+ linear_layer,
+)
+from submarine.ml.tensorflow_v2.model.base_tf_model import BaseTFModel
+from submarine.utils.tf_utils_v2 import get_estimator_spec
+
+logger = logging.getLogger(__name__)
+
+
+class DeepFM(BaseTFModel):
+ def model_fn(self, features, labels, mode, params):
+ super().model_fn(features, labels, mode, params)
+
+ linear_logit = linear_layer(features, **params["training"])
+
+ embedding_outputs = embedding_layer(features, **params["training"])
+ fm_logit = fm_layer(embedding_outputs, **params["training"])
+
+ field_size = params["training"]["field_size"]
+ embedding_size = params["training"]["embedding_size"]
+ deep_inputs = tf.reshape(embedding_outputs, shape=[-1, field_size *
embedding_size])
+ deep_logit = dnn_layer(deep_inputs, mode, **params["training"])
+
+ with tf.compat.v1.variable_scope("DeepFM_out"):
+ logit = linear_logit + fm_logit + deep_logit
+
+ return get_estimator_spec(logit, labels, mode, params)
diff --git a/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/model/fm.py
b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/model/fm.py
new file mode 100644
index 0000000..e94a15e
--- /dev/null
+++ b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/model/fm.py
@@ -0,0 +1,45 @@
+# Licensed to the Apache Software Foundation (ASF) under one or more
+# contributor license agreements. See the NOTICE file distributed with
+# this work for additional information regarding copyright ownership.
+# The ASF licenses this file to You under the Apache License, Version 2.0
+# (the "License"); you may not use this file except in compliance with
+# the License. You may obtain a copy of the License at
+#
+# http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+"""
+TensorFlow implementation of FM
+
+Reference:
+[1] Factorization machines for CTR Prediction,
+ Steffen Rendle
+"""
+
+import logging
+
+import tensorflow as tf
+
+from submarine.ml.tensorflow_v2.layers.core import embedding_layer, fm_layer,
linear_layer
+from submarine.ml.tensorflow_v2.model.base_tf_model import BaseTFModel
+from submarine.utils.tf_utils_v2 import get_estimator_spec
+
+logger = logging.getLogger(__name__)
+
+
+class FM(BaseTFModel):
+ def model_fn(self, features, labels, mode, params):
+ super().model_fn(features, labels, mode, params)
+
+ linear_logit = linear_layer(features, **params["training"])
+ embedding_outputs = embedding_layer(features, **params["training"])
+ fm_logit = fm_layer(embedding_outputs, **params["training"])
+
+ with tf.compat.v1.variable_scope("FM_out"):
+ logit = linear_logit + fm_logit
+
+ return get_estimator_spec(logit, labels, mode, params)
diff --git a/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/model/nfm.py
b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/model/nfm.py
new file mode 100644
index 0000000..19f0a58
--- /dev/null
+++ b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/model/nfm.py
@@ -0,0 +1,52 @@
+# Licensed to the Apache Software Foundation (ASF) under one or more
+# contributor license agreements. See the NOTICE file distributed with
+# this work for additional information regarding copyright ownership.
+# The ASF licenses this file to You under the Apache License, Version 2.0
+# (the "License"); you may not use this file except in compliance with
+# the License. You may obtain a copy of the License at
+#
+# http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+"""
+TensorFlow implementation of NFM
+
+Reference:
+ [1] He X, Chua T S. Neural factorization machines for sparse predictive
+ analytics[C]//Proceedings of the 40th International ACM SIGIR conference
on Research and
+ Development in Information Retrieval. ACM, 2017: 355-364.
(https://arxiv.org/abs/1708.05027)
+"""
+
+import logging
+
+import tensorflow as tf
+
+from submarine.ml.tensorflow_v2.layers.core import (
+ bilinear_layer,
+ dnn_layer,
+ embedding_layer,
+ linear_layer,
+)
+from submarine.ml.tensorflow_v2.model.base_tf_model import BaseTFModel
+from submarine.utils.tf_utils_v2 import get_estimator_spec
+
+logger = logging.getLogger(__name__)
+
+
+class NFM(BaseTFModel):
+ def model_fn(self, features, labels, mode, params):
+ super().model_fn(features, labels, mode, params)
+
+ linear_logit = linear_layer(features, **params["training"])
+ embedding_outputs = embedding_layer(features, **params["training"])
+ deep_inputs = bilinear_layer(embedding_outputs, **params["training"])
+ deep_logit = dnn_layer(deep_inputs, mode, **params["training"])
+
+ with tf.compat.v1.variable_scope("NFM_out"):
+ logit = linear_logit + deep_logit
+
+ return get_estimator_spec(logit, labels, mode, params)
diff --git a/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/optimizer.py
b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/optimizer.py
new file mode 100644
index 0000000..bdba587
--- /dev/null
+++ b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/optimizer.py
@@ -0,0 +1,49 @@
+# Licensed to the Apache Software Foundation (ASF) under one or more
+# contributor license agreements. See the NOTICE file distributed with
+# this work for additional information regarding copyright ownership.
+# The ASF licenses this file to You under the Apache License, Version 2.0
+# (the "License"); you may not use this file except in compliance with
+# the License. You may obtain a copy of the License at
+#
+# http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+import logging
+
+import tensorflow as tf
+
+logger = logging.getLogger(__name__)
+
+
+class OptimizerKey(object):
+ """Optimizer key strings."""
+
+ ADAM = "adam"
+ ADAGRAD = "adagrad"
+ MOMENTUM = "momentum"
+ FTRL = "ftrl"
+
+
+def get_optimizer(optimizer_key, learning_rate):
+ optimizer_key = optimizer_key.lower()
+
+ if optimizer_key == OptimizerKey.ADAM:
+ op = tf.compat.v1.train.AdamOptimizer(
+ learning_rate=learning_rate, beta1=0.9, beta2=0.999, epsilon=1e-8
+ )
+ elif optimizer_key == OptimizerKey.ADAGRAD:
+ op = tf.compat.v1.train.AdagradOptimizer(
+ learning_rate=learning_rate, initial_accumulator_value=1e-8
+ )
+ elif optimizer_key == OptimizerKey.MOMENTUM:
+ op = tf.compat.v1.train.MomentumOptimizer(learning_rate=learning_rate,
momentum=0.95)
+ elif optimizer_key == OptimizerKey.FTRL:
+ op = tf.compat.v1.train.FtrlOptimizer(learning_rate)
+ else:
+ raise ValueError("Invalid optimizer_key :", optimizer_key)
+ return op
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_deepfm.py
b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/parameters.py
similarity index 50%
copy from submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_deepfm.py
copy to submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/parameters.py
index 55f8e37..261f62b 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_deepfm.py
+++ b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/parameters.py
@@ -13,13 +13,28 @@
# See the License for the specific language governing permissions and
# limitations under the License.
-from submarine.ml.tensorflow.model import DeepFM
-
-
-def test_run_deepfm(get_model_param):
- params = get_model_param
-
- model = DeepFM(model_params=params)
- model.train()
- model.evaluate()
- model.predict()
+default_parameters = {
+ "output": {"save_model_dir": "./experiment", "metric": "auc"},
+ "training": {
+ "batch_size": 512,
+ "field_size": 39,
+ "num_epochs": 3,
+ "feature_size": 117581,
+ "embedding_size": 256,
+ "learning_rate": 0.0005,
+ "batch_norm_decay": 0.9,
+ "l2_reg": 0.0001,
+ "deep_layers": [400, 400, 400],
+ "conv_kernel_width": [6, 5],
+ "conv_filters": [4, 4],
+ "dropout": [0.3, 0.3, 0.3],
+ "batch_norm": "false",
+ "optimizer": "adam",
+ "log_steps": 10,
+ "num_threads": 4,
+ "num_gpu": 0,
+ "seed": 77,
+ "mode": "local",
+ },
+ "resource": {"num_cpu": 4, "num_gpu": 0, "num_thread": 0}, # tf
determines automatically
+}
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/registries.py
similarity index 79%
copy from submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
copy to submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/registries.py
index bedda94..2dca91f 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
+++ b/submarine-sdk/pysubmarine/submarine/ml/tensorflow_v2/registries.py
@@ -13,13 +13,8 @@
# See the License for the specific language governing permissions and
# limitations under the License.
-from submarine.ml.tensorflow.model import FM
+from submarine.ml.tensorflow_v2.input import libsvm_input_fn
+LIBSVM = "libsvm"
-def test_run_fm(get_model_param):
- params = get_model_param
-
- model = FM(model_params=params)
- model.train()
- model.evaluate()
- model.predict()
+input_fn_registry = {LIBSVM: libsvm_input_fn}
diff --git a/submarine-sdk/pysubmarine/submarine/utils/tf_utils_v2.py
b/submarine-sdk/pysubmarine/submarine/utils/tf_utils_v2.py
new file mode 100644
index 0000000..3c776ef
--- /dev/null
+++ b/submarine-sdk/pysubmarine/submarine/utils/tf_utils_v2.py
@@ -0,0 +1,146 @@
+# Licensed to the Apache Software Foundation (ASF) under one or more
+# contributor license agreements. See the NOTICE file distributed with
+# this work for additional information regarding copyright ownership.
+# The ASF licenses this file to You under the Apache License, Version 2.0
+# (the "License"); you may not use this file except in compliance with
+# the License. You may obtain a copy of the License at
+#
+# http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+import json
+import os
+
+import tensorflow as tf
+
+from submarine.ml.tensorflow_v2.optimizer import get_optimizer
+
+
+def _get_session_config_from_env_var(params):
+ """Returns a tf.ConfigProto instance with appropriate device_filters
set."""
+ tf.compat.v1.disable_v2_behavior()
+ tf_config = json.loads(os.environ.get("TF_CONFIG", "{}"))
+
+ if (
+ tf_config
+ and "task" in tf_config
+ and "type" in tf_config["task"]
+ and "index" in tf_config["task"]
+ ):
+ # Master should only communicate with itself and ps.
+ if tf_config["task"]["type"] == "master":
+ return tf.compat.v1.ConfigProto(
+ device_filters=["/job:ps", "/job:master"],
+ intra_op_parallelism_threads=params["resource"]["num_thread"],
+ inter_op_parallelism_threads=params["resource"]["num_thread"],
+ )
+ # Worker should only communicate with itself and ps.
+ elif tf_config["task"]["type"] == "worker":
+ return tf.compat.v1.ConfigProto( # gpu_options=gpu_options,
+ device_filters=["/job:ps", "/job:worker/task:%d" %
tf_config["task"]["index"]],
+ intra_op_parallelism_threads=params["resource"]["num_thread"],
+ inter_op_parallelism_threads=params["resource"]["num_thread"],
+ )
+ return None
+
+
+def get_tf_config(params):
+ """
+ Get TF_CONFIG to run local or distributed training, If user don't set
TF_CONFIG environment
+ variables, by default set local mode
+ :param params: model parameters that contain total number of gpu or cpu
the model
+ intends to use
+ :type params: Dictionary
+ :return: The class specifies the configurations for an Estimator run
+ """
+ if params["training"]["mode"] == "local": # local mode
+ tf.compat.v1.disable_v2_behavior()
+ tf_config = tf.estimator.RunConfig().replace(
+ session_config=tf.compat.v1.ConfigProto(
+ device_count={
+ "GPU": params["resource"]["num_gpu"],
+ "CPU": params["resource"]["num_cpu"],
+ },
+ intra_op_parallelism_threads=params["resource"]["num_thread"],
+ inter_op_parallelism_threads=params["resource"]["num_thread"],
+ ),
+ log_step_count_steps=params["training"]["log_steps"],
+ save_summary_steps=params["training"]["log_steps"],
+ )
+
+ elif params["training"]["mode"] == "distributed":
+ pass
+ # need to be rewrite via tf2
+ # ParameterServerStrategy =
tf.distribute.experimental.ParameterServerStrategy()
+ # tf_config = tf.estimator.RunConfig(
+ # train_distribute=ParameterServerStrategy,
+ # eval_distribute=ParameterServerStrategy,
+ # session_config=_get_session_config_from_env_var(params),
+ # save_summary_steps=params["training"]["log_steps"],
+ # log_step_count_steps=params["training"]["log_steps"],
+ # )
+ else:
+ raise ValueError("mode should be local or distributed")
+ return tf_config
+
+
+def get_estimator_spec(logit, labels, mode, params):
+ """
+ Returns `EstimatorSpec` that a model_fn can return.
+ :param logit: logits `Tensor` to be used.
+ :param labels: Labels `Tensor`, or `dict` of same.
+ :param mode: Estimator's `ModeKeys`.
+ :param params: Optional dict of hyperparameters. Will receive what is
passed to Estimator
+ in params parameter.
+ :return:
+ """
+ learning_rate = params["training"]["learning_rate"]
+ optimizer = params["training"]["optimizer"]
+ metric = params["output"]["metric"]
+
+ output = tf.sigmoid(logit)
+ predictions = {"probabilities": output}
+ export_outputs = {
+ # https://github.com/psf/black/issues/2434
+ # fmt: off
+ tf.saved_model.DEFAULT_SERVING_SIGNATURE_DEF_KEY:
+ tf.estimator.export.PredictOutput(predictions)
+ # fmt: on
+ }
+ # Provide an estimator spec for `ModeKeys.PREDICT`
+ if mode == tf.estimator.ModeKeys.PREDICT:
+ return tf.estimator.EstimatorSpec(
+ mode=mode, predictions=predictions, export_outputs=export_outputs
+ )
+
+ with tf.compat.v1.name_scope("Loss"):
+ loss = tf.reduce_mean(
+ input_tensor=tf.nn.sigmoid_cross_entropy_with_logits(logits=logit,
labels=labels)
+ )
+
+ # Provide an estimator spec for `ModeKeys.EVAL`
+ eval_metric_ops = {}
+ if metric == "auc":
+ eval_metric_ops["auc"] = tf.compat.v1.metrics.auc(labels, output)
+ else:
+ raise TypeError("Invalid metric :", metric)
+
+ if mode == tf.estimator.ModeKeys.EVAL:
+ return tf.estimator.EstimatorSpec(
+ mode=mode, predictions=predictions, loss=loss,
eval_metric_ops=eval_metric_ops
+ )
+
+ with tf.compat.v1.name_scope("Train"):
+ op = get_optimizer(optimizer, learning_rate)
+ train_op = op.minimize(loss,
global_step=tf.compat.v1.train.get_global_step())
+
+ # Provide an estimator spec for `ModeKeys.TRAIN` modes
+ if mode == tf.estimator.ModeKeys.TRAIN:
+ return tf.estimator.EstimatorSpec(
+ mode=mode, predictions=predictions, loss=loss, train_op=train_op
+ )
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
b/submarine-sdk/pysubmarine/tests/ml/tensorflow/__init__.py
similarity index 78%
copy from submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
copy to submarine-sdk/pysubmarine/tests/ml/tensorflow/__init__.py
index bedda94..a6eb1b5 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
+++ b/submarine-sdk/pysubmarine/tests/ml/tensorflow/__init__.py
@@ -12,14 +12,3 @@
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
-
-from submarine.ml.tensorflow.model import FM
-
-
-def test_run_fm(get_model_param):
- params = get_model_param
-
- model = FM(model_params=params)
- model.train()
- model.evaluate()
- model.predict()
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
b/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/__init__.py
similarity index 78%
copy from submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
copy to submarine-sdk/pysubmarine/tests/ml/tensorflow/model/__init__.py
index bedda94..a6eb1b5 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
+++ b/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/__init__.py
@@ -12,14 +12,3 @@
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
-
-from submarine.ml.tensorflow.model import FM
-
-
-def test_run_fm(get_model_param):
- params = get_model_param
-
- model = FM(model_params=params)
- model.train()
- model.evaluate()
- model.predict()
diff --git
a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_base_tf_model.py
b/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_base_tf_model.py
index 9c31908..8bf7915 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_base_tf_model.py
+++ b/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_base_tf_model.py
@@ -14,10 +14,12 @@
# limitations under the License.
import pytest
+import tensorflow as tf
from submarine.ml.tensorflow.model.base_tf_model import BaseTFModel
+@pytest.mark.skipif(tf.__version__ >= "2.0.0", reason="requires tf1")
def test_create_base_tf_model():
params = {"learning rate": 0.05}
with pytest.raises(AssertionError, match="Does not define any input
parameters"):
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_ccpm.py
b/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_ccpm.py
index 536c049..bc0fa87 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_ccpm.py
+++ b/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_ccpm.py
@@ -13,9 +13,13 @@
# See the License for the specific language governing permissions and
# limitations under the License.
+import pytest
+import tensorflow as tf
+
from submarine.ml.tensorflow.model import CCPM
+@pytest.mark.skipif(tf.__version__ >= "2.0.0", reason="requires tf1")
def test_run_ccpm(get_model_param):
params = get_model_param
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_deepfm.py
b/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_deepfm.py
index 55f8e37..2a6bd8d 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_deepfm.py
+++ b/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_deepfm.py
@@ -13,9 +13,13 @@
# See the License for the specific language governing permissions and
# limitations under the License.
+import pytest
+import tensorflow as tf
+
from submarine.ml.tensorflow.model import DeepFM
+@pytest.mark.skipif(tf.__version__ >= "2.0.0", reason="requires tf1")
def test_run_deepfm(get_model_param):
params = get_model_param
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
b/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
index bedda94..fb5abb8 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
+++ b/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
@@ -13,9 +13,13 @@
# See the License for the specific language governing permissions and
# limitations under the License.
+import pytest
+import tensorflow as tf
+
from submarine.ml.tensorflow.model import FM
+@pytest.mark.skipif(tf.__version__ >= "2.0.0", reason="requires tf1")
def test_run_fm(get_model_param):
params = get_model_param
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_nfm.py
b/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_nfm.py
index dab76b5..5000810 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_nfm.py
+++ b/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_nfm.py
@@ -13,9 +13,13 @@
# See the License for the specific language governing permissions and
# limitations under the License.
+import pytest
+import tensorflow as tf
+
from submarine.ml.tensorflow.model import NFM
+@pytest.mark.skipif(tf.__version__ >= "2.0.0", reason="requires tf1")
def test_run_nfm(get_model_param):
params = get_model_param
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/test_optimizer.py
b/submarine-sdk/pysubmarine/tests/ml/tensorflow/test_optimizer.py
index 831d427..776ed49 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/test_optimizer.py
+++ b/submarine-sdk/pysubmarine/tests/ml/tensorflow/test_optimizer.py
@@ -14,10 +14,12 @@
# limitations under the License.
import pytest
+import tensorflow as tf
from submarine.ml.tensorflow.optimizer import get_optimizer
+@pytest.mark.skipif(tf.__version__ >= "2.0.0", reason="requires tf1")
def test_get_optimizer():
optimizer_keys = ["adam", "adagrad", "momentum", "ftrl"]
invalid_optimizer_keys = ["adddam"]
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
b/submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/__init__.py
similarity index 78%
copy from submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
copy to submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/__init__.py
index bedda94..a6eb1b5 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
+++ b/submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/__init__.py
@@ -12,14 +12,3 @@
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
-
-from submarine.ml.tensorflow.model import FM
-
-
-def test_run_fm(get_model_param):
- params = get_model_param
-
- model = FM(model_params=params)
- model.train()
- model.evaluate()
- model.predict()
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/model/conftest.py
b/submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/model/conftest.py
new file mode 100644
index 0000000..132bdea
--- /dev/null
+++ b/submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/model/conftest.py
@@ -0,0 +1,50 @@
+# Licensed to the Apache Software Foundation (ASF) under one or more
+# contributor license agreements. See the NOTICE file distributed with
+# this work for additional information regarding copyright ownership.
+# The ASF licenses this file to You under the Apache License, Version 2.0
+# (the "License"); you may not use this file except in compliance with
+# the License. You may obtain a copy of the License at
+#
+# http://www.apache.org/licenses/LICENSE-2.0
+#
+# Unless required by applicable law or agreed to in writing, software
+# distributed under the License is distributed on an "AS IS" BASIS,
+# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+# See the License for the specific language governing permissions and
+# limitations under the License.
+
+import os
+
+import pytest
+
+LIBSVM_DATA = """1 1:0 2:0.051495 3:0.5 4:0.1 5:0.113437 6:0.874 7:0.01 8:0.08
9:0.028 10:0
+1 1:1.35 2:0.031561 3:0.45 4:0.56 5:0.000031 6:0.056 7:0.27 8:0.58 9:0.056
10:0.166667
+1 1:0.05 2:0.004983 3:0.19 4:0.14 5:0.000016 6:0.006 7:0.01 8:0.14 9:0.014
10:0.166667
+1 1:0.2 2:0.004983 3:0 4:0.12 5:0.016422 6:0.268 7:0.04 8:0.7 9:0.144
10:0.166667
+1 1:0 2:0.051495 3:0.5 4:0.1 5:0.113437 6:0.874 7:0.01 8:0.08 9:0.028 10:0
+1 1:1.35 2:0.031561 3:0.45 4:0.56 5:0.000031 6:0.056 7:0.27 8:0.58 9:0.056
10:0.166667
+1 1:0.05 2:0.004983 3:0.19 4:0.14 5:0.000016 6:0.006 7:0.01 8:0.14 9:0.014
10:0.166667
+1 1:0.2 2:0.004983 3:0 4:0.12 5:0.016422 6:0.268 7:0.04 8:0.7 9:0.144
10:0.166667
+"""
+
+
+@pytest.fixture
+def get_model_param(tmpdir):
+ data_file = os.path.join(str(tmpdir), "libsvm.txt")
+ save_model_dir = os.path.join(str(tmpdir), "experiment")
+ with open(data_file, "wt") as writer:
+ writer.write(LIBSVM_DATA)
+
+ params = {
+ "input": {
+ "train_data": data_file,
+ "valid_data": data_file,
+ "test_data": data_file,
+ "type": "libsvm",
+ },
+ "output": {"save_model_dir": save_model_dir, "metric": "auc"},
+ "training": {"batch_size": 256, "num_epochs": 1, "field_size": 10,
"feature_size": 1000},
+ }
+
+ yield params
+ os.remove(data_file)
diff --git
a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_base_tf_model.py
b/submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/model/test_base_tf_model.py
similarity index 88%
copy from
submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_base_tf_model.py
copy to
submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/model/test_base_tf_model.py
index 9c31908..e706abb 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_base_tf_model.py
+++
b/submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/model/test_base_tf_model.py
@@ -14,10 +14,12 @@
# limitations under the License.
import pytest
+import tensorflow as tf
-from submarine.ml.tensorflow.model.base_tf_model import BaseTFModel
+from submarine.ml.tensorflow_v2.model.base_tf_model import BaseTFModel
+@pytest.mark.skipif(tf.__version__ < "2.0.0", reason="requires tf2")
def test_create_base_tf_model():
params = {"learning rate": 0.05}
with pytest.raises(AssertionError, match="Does not define any input
parameters"):
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_ccpm.py
b/submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/model/test_ccpm.py
similarity index 85%
copy from submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_ccpm.py
copy to submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/model/test_ccpm.py
index 536c049..858b6bb 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_ccpm.py
+++ b/submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/model/test_ccpm.py
@@ -13,9 +13,13 @@
# See the License for the specific language governing permissions and
# limitations under the License.
-from submarine.ml.tensorflow.model import CCPM
+import pytest
+import tensorflow as tf
+from submarine.ml.tensorflow_v2.model import CCPM
+
+@pytest.mark.skipif(tf.__version__ < "2.0.0", reason="requires tf2")
def test_run_ccpm(get_model_param):
params = get_model_param
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_deepfm.py
b/submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/model/test_deepfm.py
similarity index 85%
copy from submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_deepfm.py
copy to submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/model/test_deepfm.py
index 55f8e37..c6f2d4d 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_deepfm.py
+++ b/submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/model/test_deepfm.py
@@ -13,9 +13,13 @@
# See the License for the specific language governing permissions and
# limitations under the License.
-from submarine.ml.tensorflow.model import DeepFM
+import pytest
+import tensorflow as tf
+from submarine.ml.tensorflow_v2.model import DeepFM
+
+@pytest.mark.skipif(tf.__version__ < "2.0.0", reason="requires tf2")
def test_run_deepfm(get_model_param):
params = get_model_param
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
b/submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/model/test_fm.py
similarity index 85%
copy from submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
copy to submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/model/test_fm.py
index bedda94..1d95304 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_fm.py
+++ b/submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/model/test_fm.py
@@ -13,9 +13,13 @@
# See the License for the specific language governing permissions and
# limitations under the License.
-from submarine.ml.tensorflow.model import FM
+import pytest
+import tensorflow as tf
+from submarine.ml.tensorflow_v2.model import FM
+
+@pytest.mark.skipif(tf.__version__ < "2.0.0", reason="requires tf2")
def test_run_fm(get_model_param):
params = get_model_param
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_nfm.py
b/submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/model/test_nfm.py
similarity index 85%
copy from submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_nfm.py
copy to submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/model/test_nfm.py
index dab76b5..9de05f3 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/model/test_nfm.py
+++ b/submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/model/test_nfm.py
@@ -13,9 +13,13 @@
# See the License for the specific language governing permissions and
# limitations under the License.
-from submarine.ml.tensorflow.model import NFM
+import pytest
+import tensorflow as tf
+from submarine.ml.tensorflow_v2.model import NFM
+
+@pytest.mark.skipif(tf.__version__ < "2.0.0", reason="requires tf2")
def test_run_nfm(get_model_param):
params = get_model_param
diff --git a/submarine-sdk/pysubmarine/tests/ml/tensorflow/test_optimizer.py
b/submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/test_optimizer.py
similarity index 88%
copy from submarine-sdk/pysubmarine/tests/ml/tensorflow/test_optimizer.py
copy to submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/test_optimizer.py
index 831d427..1ef8fa1 100644
--- a/submarine-sdk/pysubmarine/tests/ml/tensorflow/test_optimizer.py
+++ b/submarine-sdk/pysubmarine/tests/ml/tensorflow_v2/test_optimizer.py
@@ -14,10 +14,12 @@
# limitations under the License.
import pytest
+import tensorflow as tf
-from submarine.ml.tensorflow.optimizer import get_optimizer
+from submarine.ml.tensorflow_v2.optimizer import get_optimizer
+@pytest.mark.skipif(tf.__version__ < "2.0.0", reason="requires tf2")
def test_get_optimizer():
optimizer_keys = ["adam", "adagrad", "momentum", "ftrl"]
invalid_optimizer_keys = ["adddam"]
diff --git a/submarine-sdk/pysubmarine/tests/utils/test_tf_utils.py
b/submarine-sdk/pysubmarine/tests/utils/test_tf_utils.py
index a03d434..776ac41 100644
--- a/submarine-sdk/pysubmarine/tests/utils/test_tf_utils.py
+++ b/submarine-sdk/pysubmarine/tests/utils/test_tf_utils.py
@@ -14,10 +14,12 @@
# limitations under the License.
import pytest
+import tensorflow as tf
from submarine.utils.tf_utils import get_tf_config
+@pytest.mark.skipif(tf.__version__ >= "2.0.0", reason="requires tf1")
def test_get_tf_config():
params = {"training": {"mode": "test"}}
with pytest.raises(ValueError, match="mode should be local or
distributed"):
diff --git a/submarine-sdk/pysubmarine/tests/utils/test_tf_utils.py
b/submarine-sdk/pysubmarine/tests/utils/test_tf_utils_v2.py
similarity index 76%
copy from submarine-sdk/pysubmarine/tests/utils/test_tf_utils.py
copy to submarine-sdk/pysubmarine/tests/utils/test_tf_utils_v2.py
index a03d434..53add06 100644
--- a/submarine-sdk/pysubmarine/tests/utils/test_tf_utils.py
+++ b/submarine-sdk/pysubmarine/tests/utils/test_tf_utils_v2.py
@@ -14,10 +14,12 @@
# limitations under the License.
import pytest
+import tensorflow as tf
-from submarine.utils.tf_utils import get_tf_config
+from submarine.utils.tf_utils_v2 import get_tf_config
+@pytest.mark.skipif(tf.__version__ < "2.0.0", reason="requires tf2")
def test_get_tf_config():
params = {"training": {"mode": "test"}}
with pytest.raises(ValueError, match="mode should be local or
distributed"):
@@ -33,10 +35,11 @@ def test_get_tf_config():
get_tf_config(params)
# conf for distributed training
- params.update(
- {
- "training": {"mode": "distributed", "log_steps": 10},
- "resource": {"num_cpu": 4, "num_thread": 4, "num_gpu": 2},
- }
- )
- get_tf_config(params)
+ # skip temporary
+ # params.update(
+ # {
+ # "training": {"mode": "distributed", "log_steps": 10},
+ # "resource": {"num_cpu": 4, "num_thread": 4, "num_gpu": 2},
+ # }
+ # )
+ # get_tf_config(params)
---------------------------------------------------------------------
To unsubscribe, e-mail: dev-unsubscr...@submarine.apache.org
For additional commands, e-mail: dev-h...@submarine.apache.org
