They are cute !
Make more and do a Binary Clock. Use relays/valves if you don't want to rig
semis for the 550V+ .
John K
Australia
----- Original Message -----
From: "jb-electronics" <webmas...@jb-electronics.de>
To: <neonixie-l@googlegroups.com>
Sent: Wednesday, October 17, 2012 12:26 AM
Subject: [neonixie-l] My first two-digit Nixie tube!
Hi folks,
I did it: I have just built my first two-digit Nixie tube! I call her
"NX-LS-1".
She contains the digits 0 and 1 as well as a zig-zag anode. Filling is (as
usual) air at 15mbar. I will have my needle valve shortly, then I will be
able to do some neon thingies.

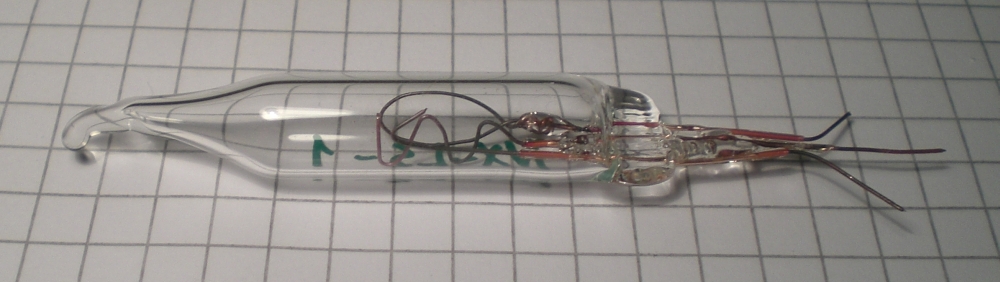

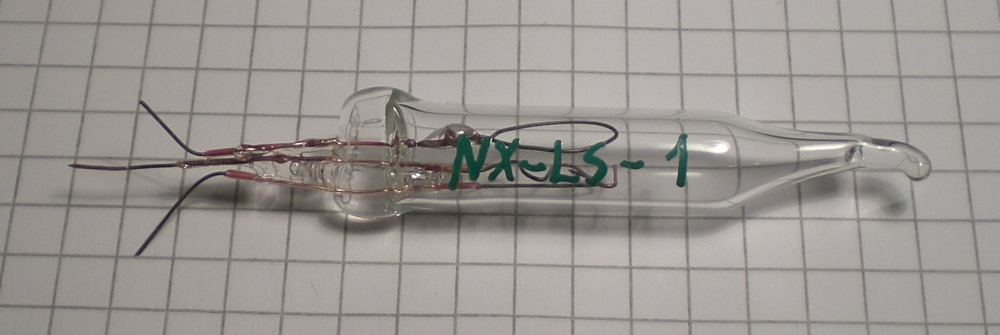

See some pictures here:
http://www.jb-electronics.de/tmp/nx-ls-1_1.jpg
http://www.jb-electronics.de/tmp/nx-ls-1_2.jpg

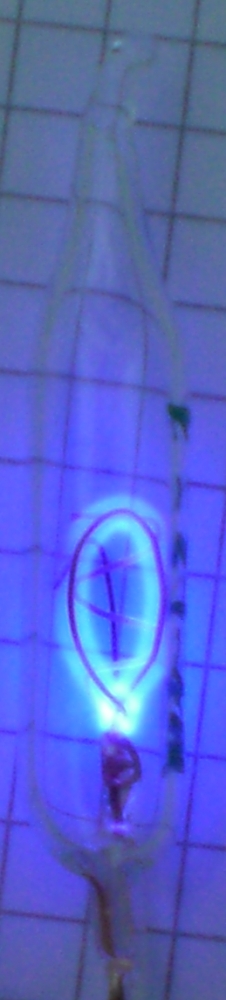

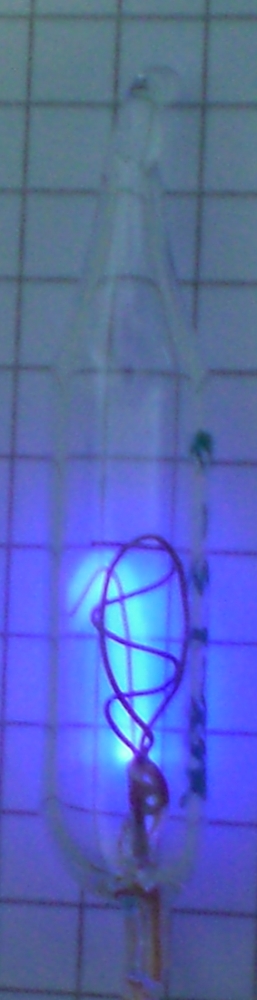

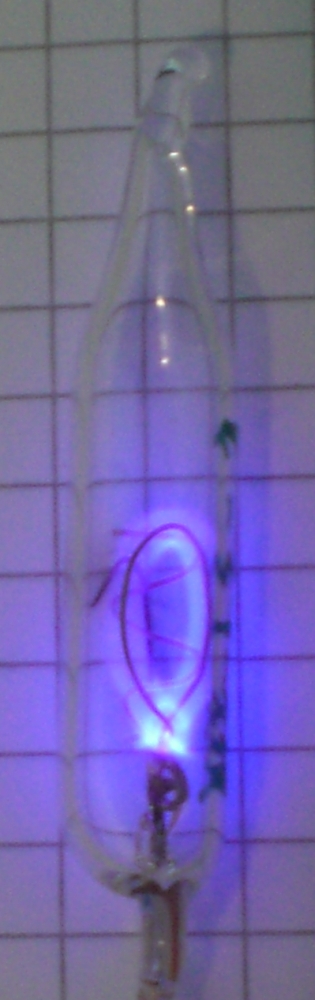

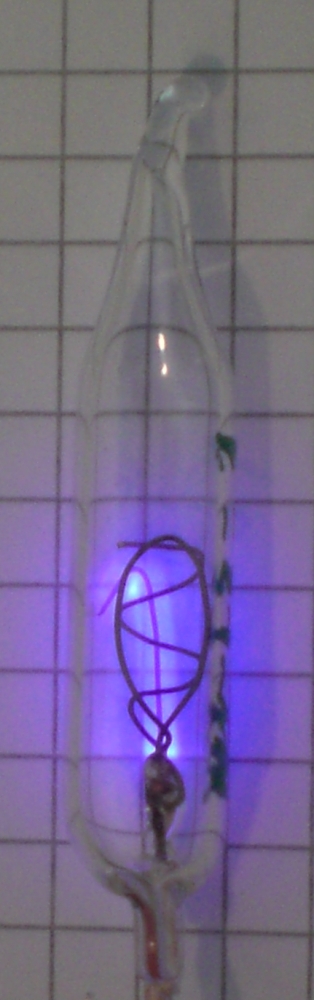

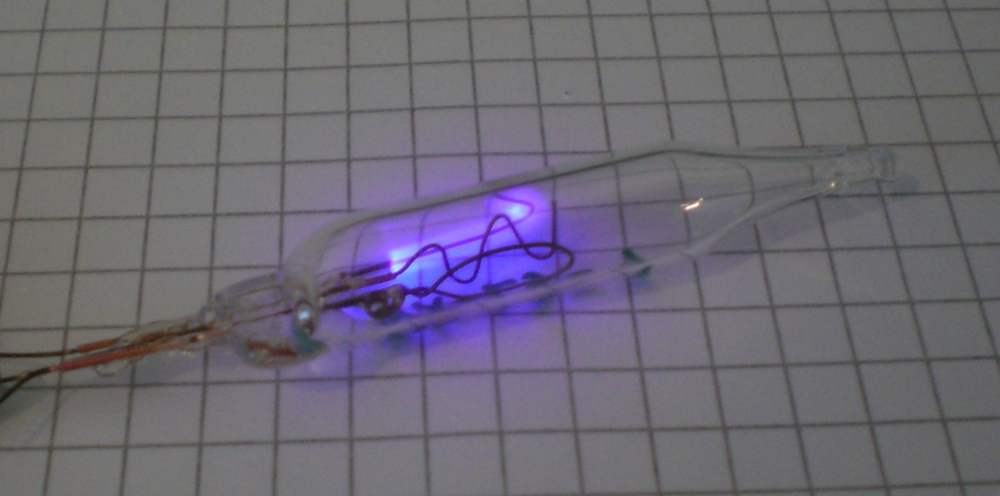

The digits glow in a nice purple, but my camera has a hard time to grasp
the color. The truth is somewhat in between the very purple and very blue
color in the following pictures:
http://www.jb-electronics.de/tmp/nx-ls-1_3.jpg
http://www.jb-electronics.de/tmp/nx-ls-1_4.jpg
http://www.jb-electronics.de/tmp/nx-ls-1_5.jpg
http://www.jb-electronics.de/tmp/nx-ls-1_6.jpg
http://www.jb-electronics.de/tmp/nx-ls-1_7.jpg
Jens
--
