Today's Topics:
1. Re: Avaya ERS 48xx series - No entrys in modules plugin
(Tobias Gerlach)
2. Re: ND2 strange node behaviour (Nikolaos Milas)
3. Re: REMOTE_USER ldap apache2 (Natxo Asenjo)
4. Re: REMOTE_USER ldap apache2 (Natxo Asenjo)
5. start up scripts centos (Natxo Asenjo)
--- Begin Message ---
Hi Eric, increasing the snmptimeout from 2 sec. to just 3 sec. in the
netdisco deployment.yml solved the problem! Now the modules are
showing back again fine. Thank you!
2014-05-22 4:20 GMT+02:00 Eric Miller <e...@jeneric.org>:
> If this hasn't been resolved, try increasing snmptimeout: in your netdisco
> deployment.yml file. Try using a high for troubleshooting like 5000000
> which is 5 seconds. This may be a delayed response from the device when
> trying to read the power supplied by PoE ports which occurs right before
> trying to collect module information.
>
> Eric
>
>
> On 2014-04-03 06:03, Tobias Gerlach wrote:
>>
>> Hm... that's strange. I can't figure out why the ND2 bulkwalk runs
>> into a timeout for the 4850'er model.
>> Both switches have the same SW version v5.7.0.009 installed and for
>> both devices I'm able to collect that information with a classic
>> snmpwalk in proper time.
>> Any ideas what else I could check?
>>
>> n.ok ->
>> ...
>> SNMP::Info 3.13
>> SNMP::Info::device_type() layers:00000110 id:45 sysDescr:"Ethernet
>> Routing Switch 4850GTS-PWR+ HW:10 FW:5.7.0.1 SW:v5.7.0.009
>> BN:09 (c) Avaya Networks"
>> ...
>> [22691] debug @18.264306> [10.32.110.9] power - removed 3 power modules
>> [22691] debug @18.268068> [10.32.110.9] power - added 3 new power modules
>> [22691] debug @18.273069> [10.32.110.9] power - removed 0 PoE capable
>> ports
>> [22691] debug @18.309112> [10.32.110.9] power - added 144 new PoE capable
>> ports
>> SNMP::Info::_load_attr entPhysicalDescr : ENTITY-MIB::entPhysicalDescr
>> : .1.3.6.1.2.1.47.1.1.1.1.2
>> SNMP::Info::_load_atrr: BULKWALK Timeout at
>> /usr/local/netdisco/perl5/lib/perl5/App/Netdisco/Core/Discover.pm line
>> 561.
>> SNMP::Info::_load_attr ns_com_grp_idx :
>> S5-CHASSIS-MIB::s5ChasComGrpIndx : .1.3.6.1.4.1.45.1.6.3.3.1.1.1
>> SNMP::Info::_load_atrr: BULKWALK Timeout at
>> /usr/local/netdisco/perl5/lib/perl5/App/Netdisco/Core/Discover.pm line
>> 561.
>> SNMP::Info::_load_attr s5ChasComRelPos :
>> S5-CHASSIS-MIB::s5ChasComRelPos : .1.3.6.1.4.1.45.1.6.3.3.1.1.13
>> SNMP::Info::_load_attr orig_e_descr : ENTITY-MIB::entPhysicalDescr :
>> .1.3.6.1.2.1.47.1.1.1.1.2
>> SNMP::Info::_load_attr orig_e_type : ENTITY-MIB::entPhysicalVendorType
>> : .1.3.6.1.2.1.47.1.1.1.1.3
>> SNMP::Info::_load_attr orig_e_parent :
>> ENTITY-MIB::entPhysicalContainedIn : .1.3.6.1.2.1.47.1.1.1.1.4
>> SNMP::Info::_load_attr orig_e_name : ENTITY-MIB::entPhysicalName :
>> .1.3.6.1.2.1.47.1.1.1.1.7
>> SNMP::Info::_load_attr orig_e_class : ENTITY-MIB::entPhysicalClass :
>> .1.3.6.1.2.1.47.1.1.1.1.5
>> SNMP::Info::_load_attr orig_e_pos :
>> ENTITY-MIB::entPhysicalParentRelPos : .1.3.6.1.2.1.47.1.1.1.1.6
>> SNMP::Info::_load_attr orig_e_hwver :
>> ENTITY-MIB::entPhysicalHardwareRev : .1.3.6.1.2.1.47.1.1.1.1.8
>> SNMP::Info::_load_attr orig_e_fwver :
>> ENTITY-MIB::entPhysicalFirmwareRev : .1.3.6.1.2.1.47.1.1.1.1.9
>> SNMP::Info::_load_attr orig_e_swver :
>> ENTITY-MIB::entPhysicalSoftwareRev : .1.3.6.1.2.1.47.1.1.1.1.10
>> SNMP::Info::_load_attr e_model : ENTITY-MIB::entPhysicalModelName :
>> .1.3.6.1.2.1.47.1.1.1.1.13
>> SNMP::Info::_load_attr orig_e_serial :
>> ENTITY-MIB::entPhysicalSerialNum : .1.3.6.1.2.1.47.1.1.1.1.11
>> SNMP::Info::_load_attr e_fru : ENTITY-MIB::entPhysicalIsFRU :
>> .1.3.6.1.2.1.47.1.1.1.1.16
>> [22691] debug @28.527817> [10.32.1.9] modules - removed 0 chassis modules
>> [22691] debug @28.528361> [10.32.1.9] modules - added 0 new chassis
>> modules
>> ...
>>
>> netdisco@server:~> snmpwalk -v 3 -l authPriv -u xxx -n "" -a MD5 -A
>> xxx -x AES -X xxx not-working-switch .1.3.6.1.2.1.47.1.1.1.1.2
>> SNMPv2-SMI::mib-2.47.1.1.1.1.2.1 = STRING: "Ethernet Routing Switch
>> 4850GTS-PWR+ Stack"
>> SNMPv2-SMI::mib-2.47.1.1.1.1.2.2 = STRING: "Ethernet Routing Switch
>> 4850GTS-PWR+"
>> SNMPv2-SMI::mib-2.47.1.1.1.1.2.3 = STRING: "10-Base 10/100/1000 Ethernet
>> Port"
>> ...
>>
>> ok ->
>> ...
>> SNMP::Info 3.13
>> SNMP::Info::device_type() layers:00000110 id:45 sysDescr:"Ethernet
>> Routing Switch 4548GT-PWR HW:11 FW:5.3.0.3 SW:v5.7.0.009
>> BN:09 (c) Avaya Networks"
>> ...
>> [22700] debug @19.648640> [10.32.2.9] power - removed 2 power modules
>> [22700] debug @19.651492> [10.32.2.9] power - added 2 new power modules
>> [22700] debug @19.655514> [10.32.2.9] power - removed 0 PoE capable ports
>> [22700] debug @19.681444> [10.32.2.9] power - added 96 new PoE capable
>> ports
>> SNMP::Info::_load_attr entPhysicalDescr : ENTITY-MIB::entPhysicalDescr
>> : .1.3.6.1.2.1.47.1.1.1.1.2
>> SNMP::Info::_load_attr orig_e_descr : ENTITY-MIB::entPhysicalDescr :
>> .1.3.6.1.2.1.47.1.1.1.1.2
>> SNMP::Info::_load_attr orig_e_type : ENTITY-MIB::entPhysicalVendorType
>> : .1.3.6.1.2.1.47.1.1.1.1.3
>> SNMP::Info::_load_attr orig_e_parent :
>> ENTITY-MIB::entPhysicalContainedIn : .1.3.6.1.2.1.47.1.1.1.1.4
>> SNMP::Info::_load_attr orig_e_name : ENTITY-MIB::entPhysicalName :
>> .1.3.6.1.2.1.47.1.1.1.1.7
>> SNMP::Info::_load_attr orig_e_class : ENTITY-MIB::entPhysicalClass :
>> .1.3.6.1.2.1.47.1.1.1.1.5
>> SNMP::Info::_load_attr orig_e_pos :
>> ENTITY-MIB::entPhysicalParentRelPos : .1.3.6.1.2.1.47.1.1.1.1.6
>> SNMP::Info::_load_attr orig_e_hwver :
>> ENTITY-MIB::entPhysicalHardwareRev : .1.3.6.1.2.1.47.1.1.1.1.8
>> SNMP::Info::_load_attr orig_e_fwver :
>> ENTITY-MIB::entPhysicalFirmwareRev : .1.3.6.1.2.1.47.1.1.1.1.9
>> SNMP::Info::_load_attr orig_e_swver :
>> ENTITY-MIB::entPhysicalSoftwareRev : .1.3.6.1.2.1.47.1.1.1.1.10
>> SNMP::Info::_load_attr e_model : ENTITY-MIB::entPhysicalModelName :
>> .1.3.6.1.2.1.47.1.1.1.1.13
>> SNMP::Info::_load_attr orig_e_serial :
>> ENTITY-MIB::entPhysicalSerialNum : .1.3.6.1.2.1.47.1.1.1.1.11
>> SNMP::Info::_load_attr e_fru : ENTITY-MIB::entPhysicalIsFRU :
>> .1.3.6.1.2.1.47.1.1.1.1.16
>> [22700] debug @21.356638> [10.32.88.6] modules - removed 113 chassis
>> modules
>> [22700] debug @21.384159> [10.32.88.6] modules - added 113 new chassis
>> modules
>> ...
>>
>> netdisco@server:~> snmpwalk -v 3 -l authPriv -u xxx -n "" -a MD5 -A
>> xxx -x AES -X xxx working-switch .1.3.6.1.2.1.47.1.1.1.1.2
>> SNMPv2-SMI::mib-2.47.1.1.1.1.2.1 = STRING: "Ethernet Routing Switch
>> 4548GT-PWR Stack"
>> SNMPv2-SMI::mib-2.47.1.1.1.1.2.2 = STRING: "Ethernet Routing Switch
>> 4548GT-PWR"
>> SNMPv2-SMI::mib-2.47.1.1.1.1.2.3 = STRING: "10-Base 10/100/1000 Ethernet
>> Port"
>> ...
>>
>>
>> ------------------------------------------------------------------------------
>> _______________________________________________
>> Netdisco mailing list
>> netdisco-users@lists.sourceforge.net
>> https://lists.sourceforge.net/lists/listinfo/netdisco-users
--- End Message ---
--- Begin Message ---
On 22/5/2014 5:35 πμ, Eric Miller wrote:
For these nodes perform a search by mac with the archive option
selected to see what other switch port(s) matches show up in the
list. Most likely an uplink should be in the list. If so:
1) Does each end of the uplink show the opposing neighbour, or does
only one side?
2) Is the uplink using a L2 discovery protocol (CDP, LLDP, etc) or a
manual topology entry?
3) Is the uplink part of a port-channel or some other link aggregation
protocol?
Is this behaviour limited to a specific vendor or model?
What version of netdisco are you running?
Hi Eric,
When I visited the particular device once more, I noticed that now there
are different nodes not showing up!

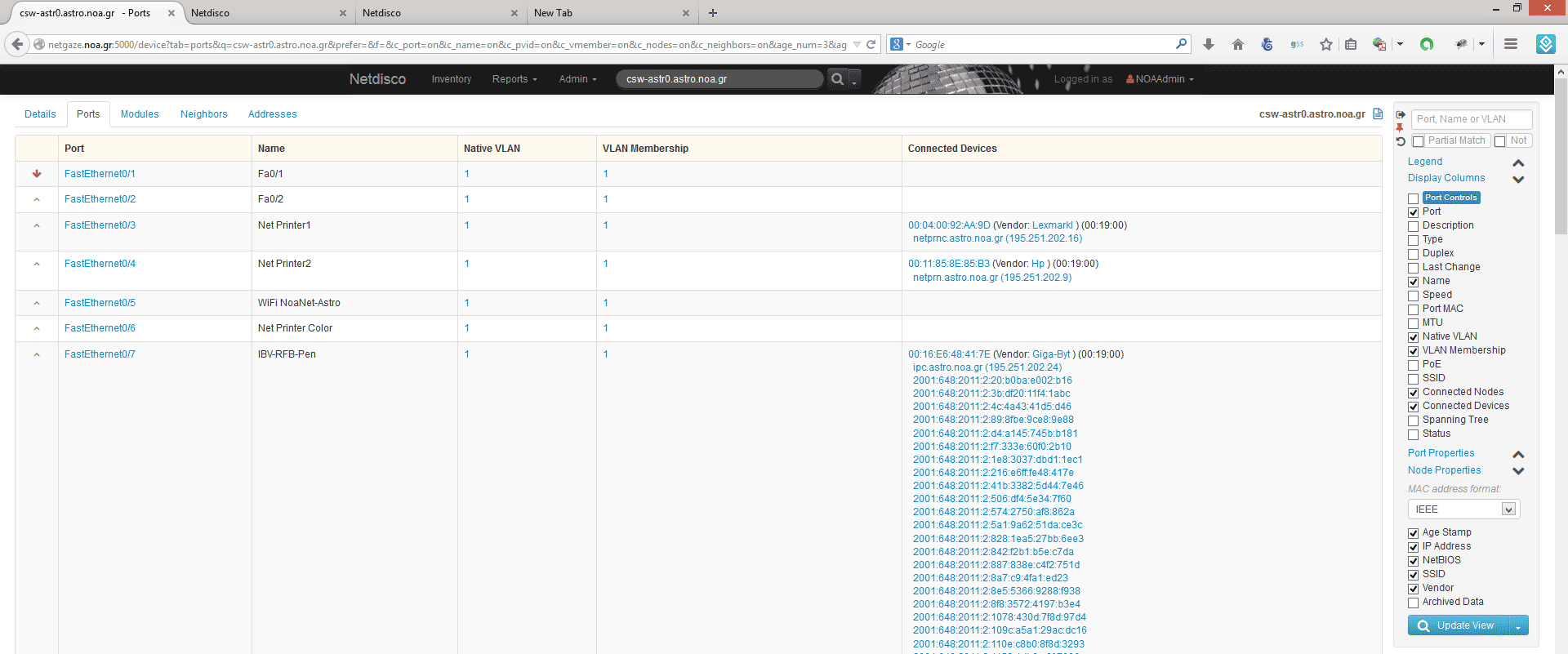

See: http://iweb.noa.gr/files/nd2/no_arch_data_20140523a.png

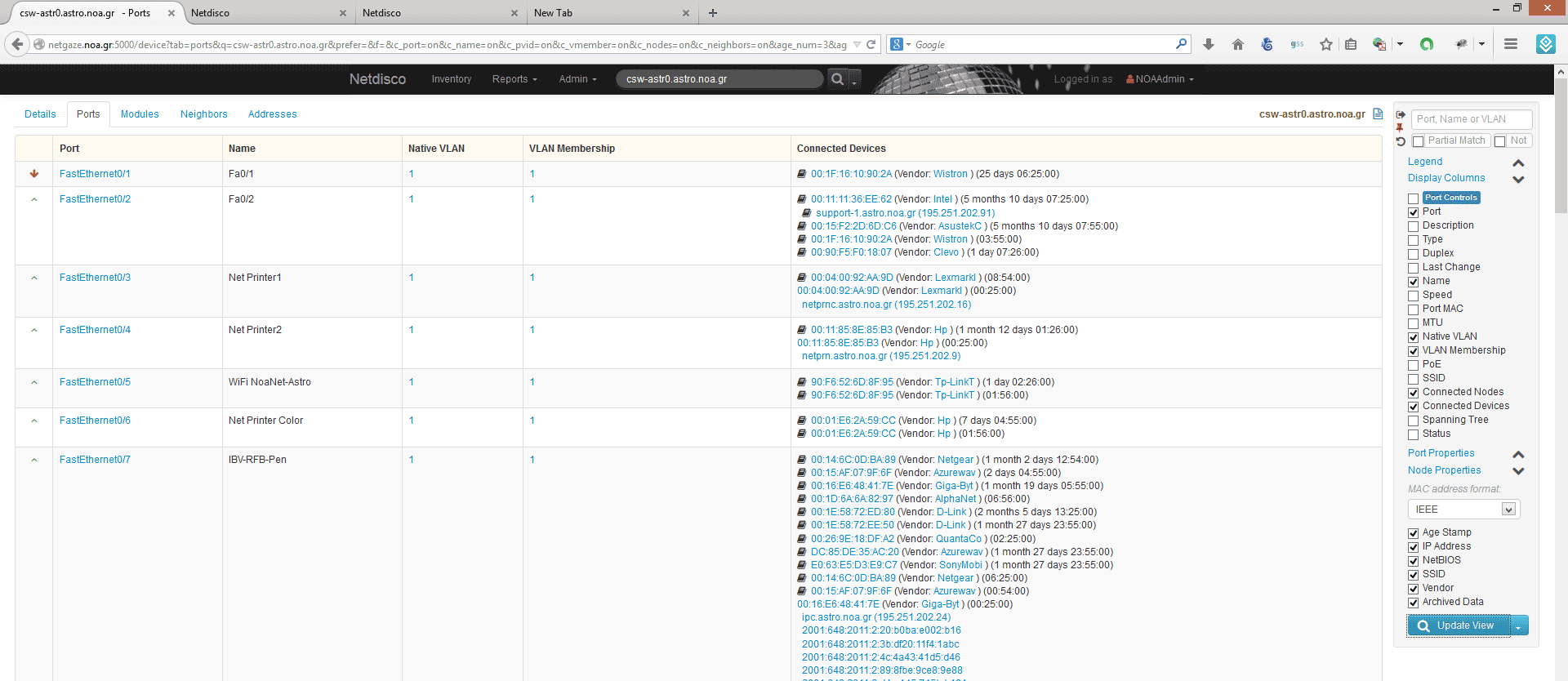

and: http://iweb.noa.gr/files/nd2/with_arch_data_20140523a.png
Now affected ports (showing as "up", but without nodes) are: 2, 3, 6, 9,
10, 14, 15, 17, 20
Doing a search as you advised for the MAC addresses of nodes connected
on ports 2, 3, 6, I get the following results:

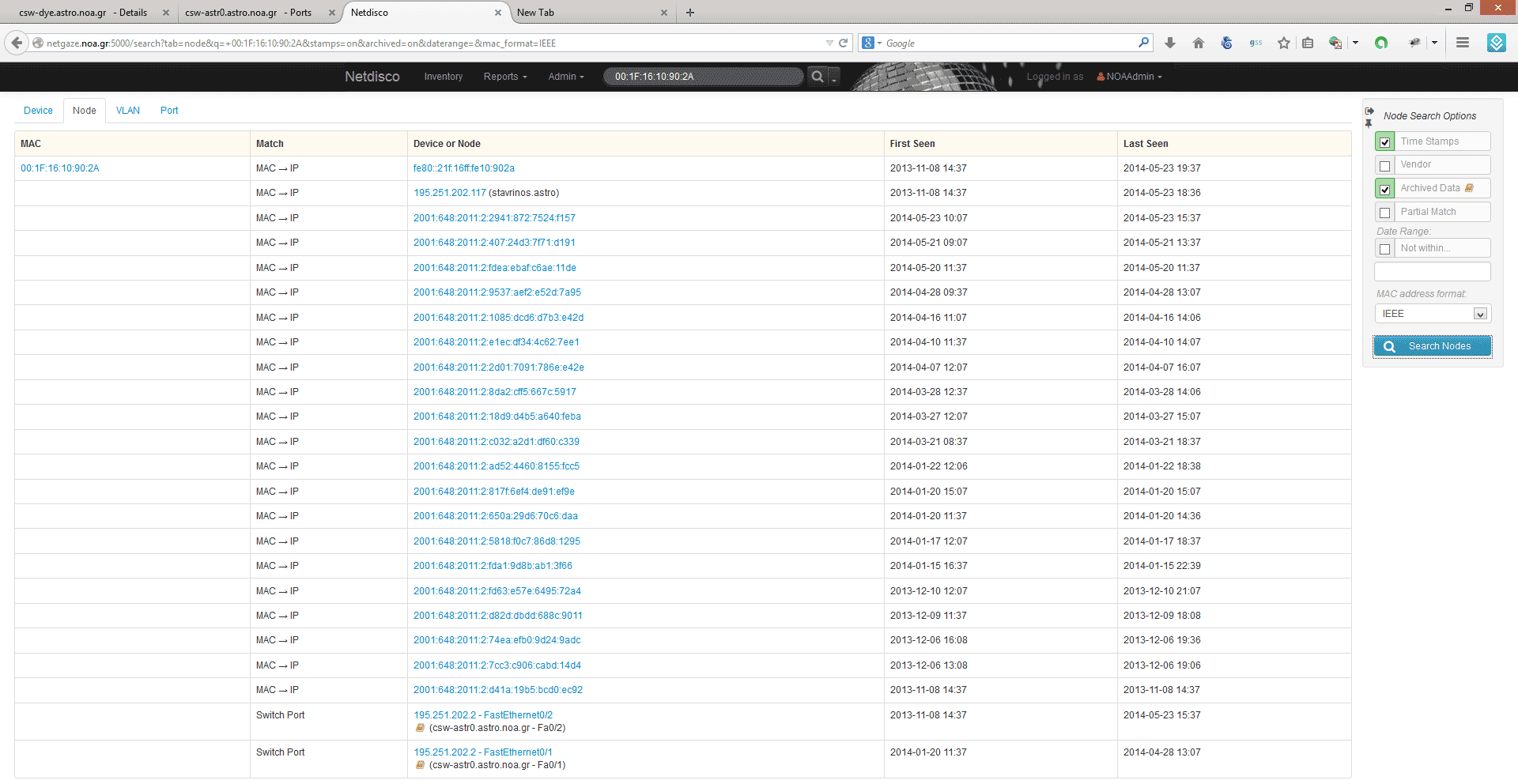

http://iweb.noa.gr/files/nd2/fa02-node.png

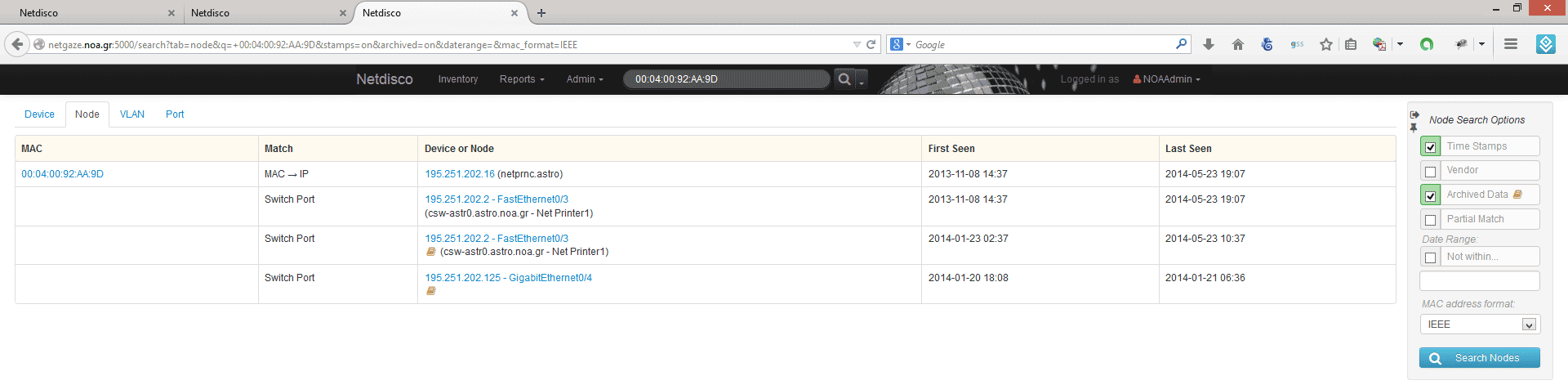

http://iweb.noa.gr/files/nd2/fa03-node.png

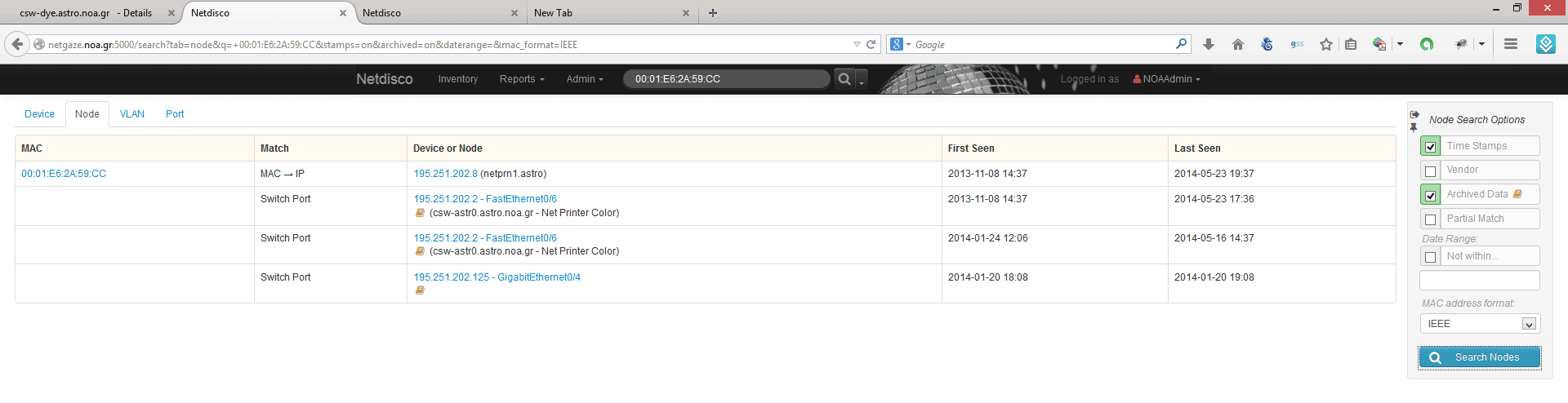

http://iweb.noa.gr/files/nd2/fa06-node.png
To answer you questions:
1. I don't see uplinks in the search results.
2. We are generally using CDP
3. No link aggregation or port-channel used.
Almost all our switches are Cisco 2950 / 2960 (various types
with/without optical interfaces) and a couple of SRW2024-K9. I see the
behaviour on all.
We are running latest netdisco (2.027004) with SNMP::Info 3.13.
Best regards,
Nick
--- End Message ---
--- Begin Message ---
On Wed, May 21, 2014 at 9:19 PM, Oliver Gorwits <oli...@cpan.org> wrote:
> Hi Natxo,
>
> Hi Oliver,
> On 2014-05-20 13:29, Natxo Asenjo wrote:
> > After restarting both the apache2 proxy as the netdisco web ui I can
> > login using my ldap credentials but get the netdisco login page
> > afterwards.
>
> I guess the X-REMOTE_USER header is not getting to Netdisco, but we
> need to be sure.
>
> ....
> Then restart the web daemon. You should have a sidebar with a panel
> which shows the HTTP Request Headers as seen by Netdisco application. In
> there should be X-REMOTE_USER.
>
> If the header isn't there, then it's Apache. If the header is there,
> then we have a bug in Netdisco :)
>
the header is not there, so it's apache.
But with some trial and error I got the X-REMOTE_USER to work
RewriteEngine On
RewriteCond %{LA-U:REMOTE_USER} (.+)
RewriteRule . - [E=RU:%1]
RequestHeader unset X-REMOTE_USER
RequestHeader add X-REMOTE_USER %{RU}e
So after the 401 popup to enter user/password, I am automatically logged in
netdisco and I see my username in the "logged in as" space. But if i try to
use any of the links I get a Not Found from apache which is redirecting me
to he /login url.
I clicked on the port utilization report and got redirected to:
netdisco.domain.tld/login?return_url=%2Freport%2Fportutilization
for instance, when on the home site I do a mouse over 'System information'
the link under it is : http://netdisco.unix.domain.tld:5000/# . Behind the
proxy, it becomes:
https://netdisco.domain.tld/login?return_url=%252Finventory#
so I am having some troubles with the reverse proxy I do not seem to be
able to resolve on my own. Tips welcome ;-)
TIA,
--
regards,
natxo
--- End Message ---
--- Begin Message ---
On Mon, May 26, 2014 at 12:03 PM, Natxo Asenjo <natxo.ase...@gmail.com>wrote:
>
> I clicked on the port utilization report and got redirected to:
> netdisco.domain.tld/login?return_url=%2Freport%2Fportutilization
>
> for instance, when on the home site I do a mouse over 'System information'
> the link under it is : http://netdisco.unix.domain.tld:5000/# . Behind
> the proxy, it becomes:
> https://netdisco.domain.tld/login?return_url=%252Finventory#
>
> so I am having some troubles with the reverse proxy I do not seem to be
> able to resolve on my own. Tips welcome ;-)
>
I added
log: debug
to environment.yml and I see this in netdisco-web.log
[5836] debug @0.521952> No such user xxxx
[5836] debug @0.524081> No such user xxxx
[5835] debug @0.439999> No such user xxxx
[5837] debug @0.477245> No such user xxxx
[5837] debug @0.508538> No such user xxxx
[5837] debug @0.518644> No such user xxxx
[5837] debug @0.520917> No such user xxxx
[5837] debug @0.523004> No such user xxxx
[5837] debug @0.525105> No such user xxxx
so the x-remote-user is being set but not used, it seems. That's why it is
redirecting to the login url.
--- End Message ---
--- Begin Message ---
hi,
maybe useful to someone else. We use very simple init scripts in our centos
6.5:
/etc/init.d/netdisco-daemon
#!/bin/sh
#
# netdisco - this script starts and stops netdisco-daemon
#
# chkconfig: 2345 85 15
# description:
# Source function library.
. /etc/rc.d/init.d/functions
# Source networking configuration.
. /etc/sysconfig/network
# Check that networking is up.
[ "$NETWORKING" = "no" ] && exit 0
NETDISCO_DIR="/opt/netdisco"
NETDISCO_USER=netdisco
NETDISCO_DAEMON="$NETDISCO_DIR/bin/netdisco-daemon"
start() {
echo -n $"Starting netdisco daemon: "
/bin/su - $NETDISCO_USER -c "$NETDISCO_DAEMON start"
retval=$?
if [ $retval -eq 0 ]; then
success "netdisco daemon started"
else
failure $"Unable to start"
fi
echo
return $retval
}
stop() {
echo -n $"Stopping netdisco daemon: "
/bin/su - $NETDISCO_USER -c "$NETDISCO_DAEMON stop"
retval=$?
if [ $retval -eq 0 ] ; then
echo "$NETDISCO_DAEMON stopped"
return $retval
fi
}
restart() {
stop
start
}
case "$1" in
start)
$1
;;
stop)
$1
;;
restart)
$1
;;
*)
echo $"Usage: $0 {start|stop|restart}"
exit 2
esac
and this for the web interface:
/etc/init.d/netdisco-web
#!/bin/sh
#
# netdisco - this script starts and stops netdisco
#
# chkconfig: 2345 85 15
# description:
# Source function library.
. /etc/rc.d/init.d/functions
# Source networking configuration.
. /etc/sysconfig/network
# Check that networking is up.
[ "$NETWORKING" = "no" ] && exit 0
NETDISCO_DIR="/opt/netdisco"
NETDISCO_USER=netdisco
NETDISCO_WEB="$NETDISCO_DIR/bin/netdisco-web"
start() {
echo -n $"Starting netdisco web: "
/bin/su - $NETDISCO_USER -c "$NETDISCO_WEB start"
retval=$?
if [ $retval -eq 0 ]; then
success "netdisco web started"
else
failure $"Unable to start"
fi
echo
return $retval
}
stop() {
echo -n $"Stopping netdisco web: "
/bin/su - $NETDISCO_USER -c "$NETDISCO_WEB stop"
retval=$?
if [ $retval -eq 0 ] ; then
echo "$NETDISCO_DAEMON web"
return $retval
fi
}
restart() {
stop
start
}
case "$1" in
start)
$1
;;
stop)
$1
;;
restart)
$1
;;
*)
echo $"Usage: $0 {start|stop|restart}"
exit 2
esa
--
Groeten,
natxo
--- End Message ---
------------------------------------------------------------------------------
The best possible search technologies are now affordable for all companies.
Download your FREE open source Enterprise Search Engine today!
Our experts will assist you in its installation for $59/mo, no commitment.
Test it for FREE on our Cloud platform anytime!
http://pubads.g.doubleclick.net/gampad/clk?id=145328191&iu=/4140/ostg.clktrk
_______________________________________________
Netdisco mailing list - Digest Mode
netdisco-users@lists.sourceforge.net
https://lists.sourceforge.net/lists/listinfo/netdisco-users
