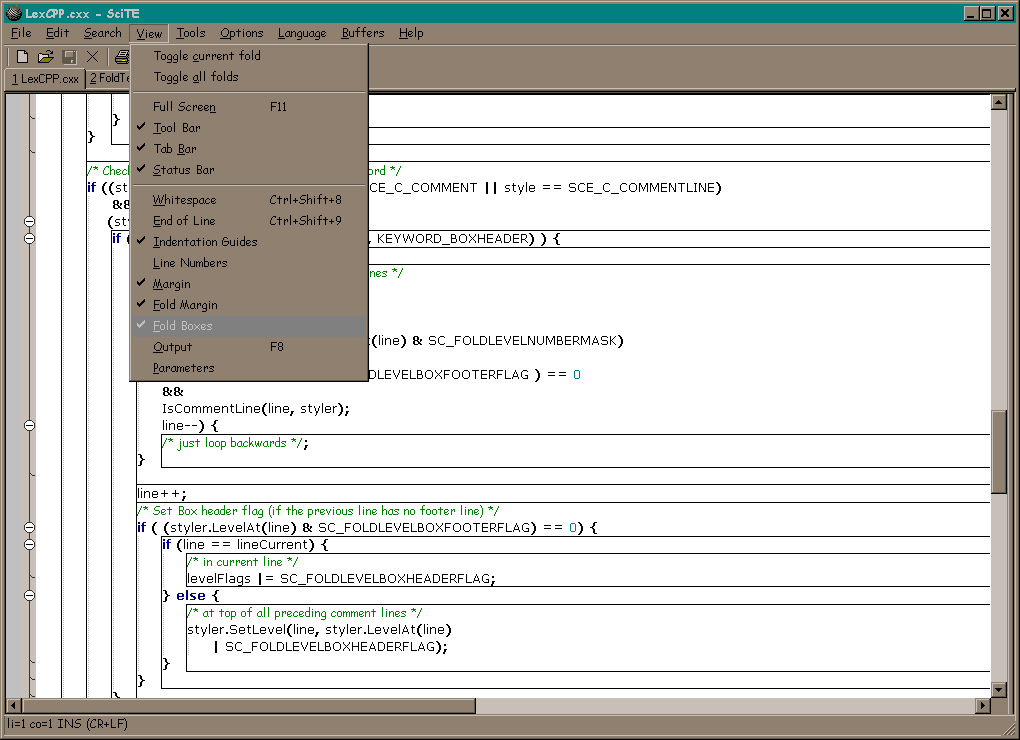

In November 2001 Wilhelm Pflueger contributed a feature that would draw boxes around code structures. A little like Nassi-Shneiderman diagrams: http://www.scintilla.org/FoldBoxes.gif
While this would be a good feature if it worked well, the current implementation is not very good and has not seen much interest. The C++ folder that implemented the detection side of fold boxes was removed in April 2003 when the fold.at.else feature was integrated. I plan to remove all remaining code that draws fold boxes and move the following symbols to the deprecated category: SC_FOLDLEVELBOXHEADERFLAG SC_FOLDLEVELBOXFOOTERFLAG SC_FOLDLEVELCONTRACTED SC_FOLDLEVELUNINDENT SC_FOLDFLAG_BOX One benefit to this change is that it definitively frees the SC_FOLDLEVEL* bits mentioned which will allow the high word of the indentation level to be used generically for the starting level of the following line as is now done specifically by some folders such as for C++. This is part of a simplification of folding, making Scintilla perform more of the work and simplifying each language's folder. It may be possible to remove the manual setting of the SC_FOLDLEVELHEADERFLAG, leaving this up to the generic SetLevel code whenever it detects the relationship between the level of two lines has changed. Neil _______________________________________________ Scintilla-interest mailing list [email protected] http://mailman.lyra.org/mailman/listinfo/scintilla-interest
