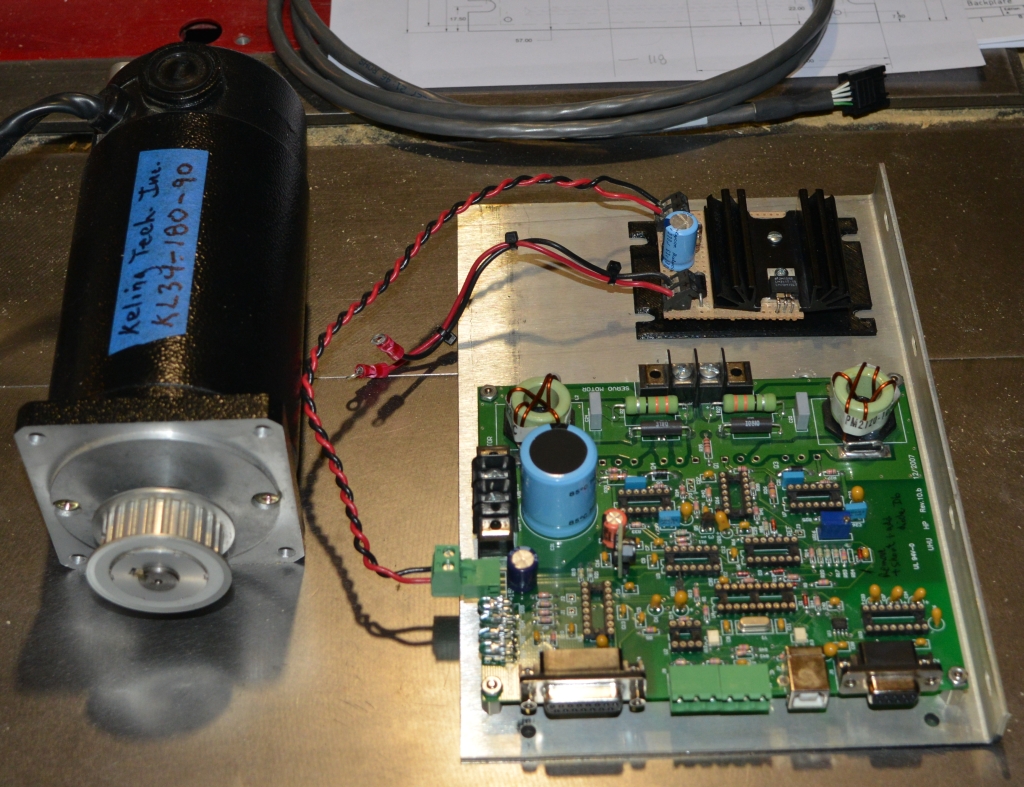

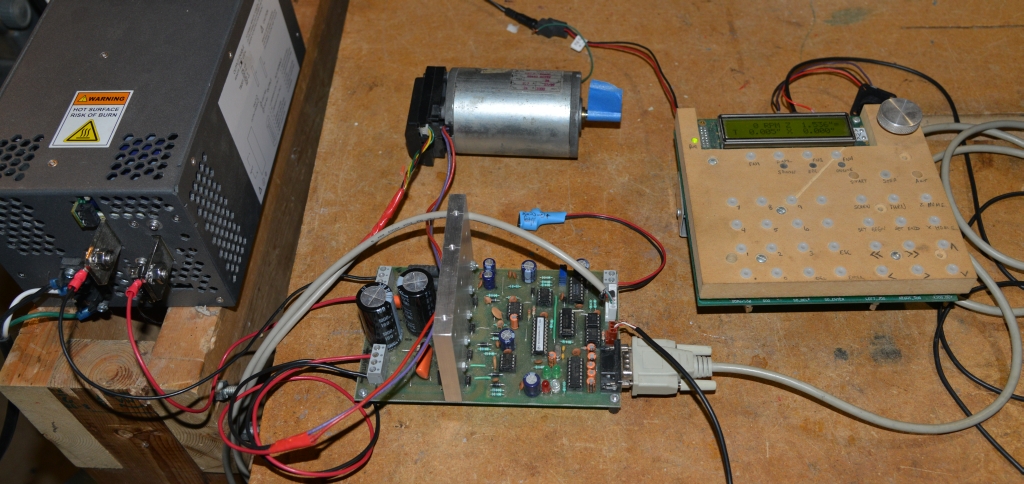

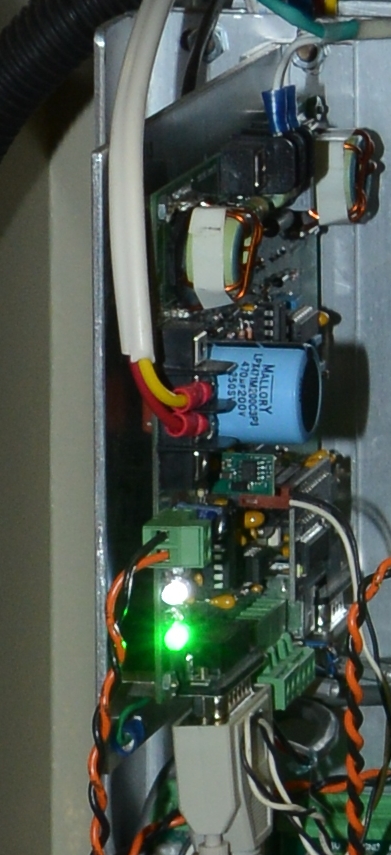

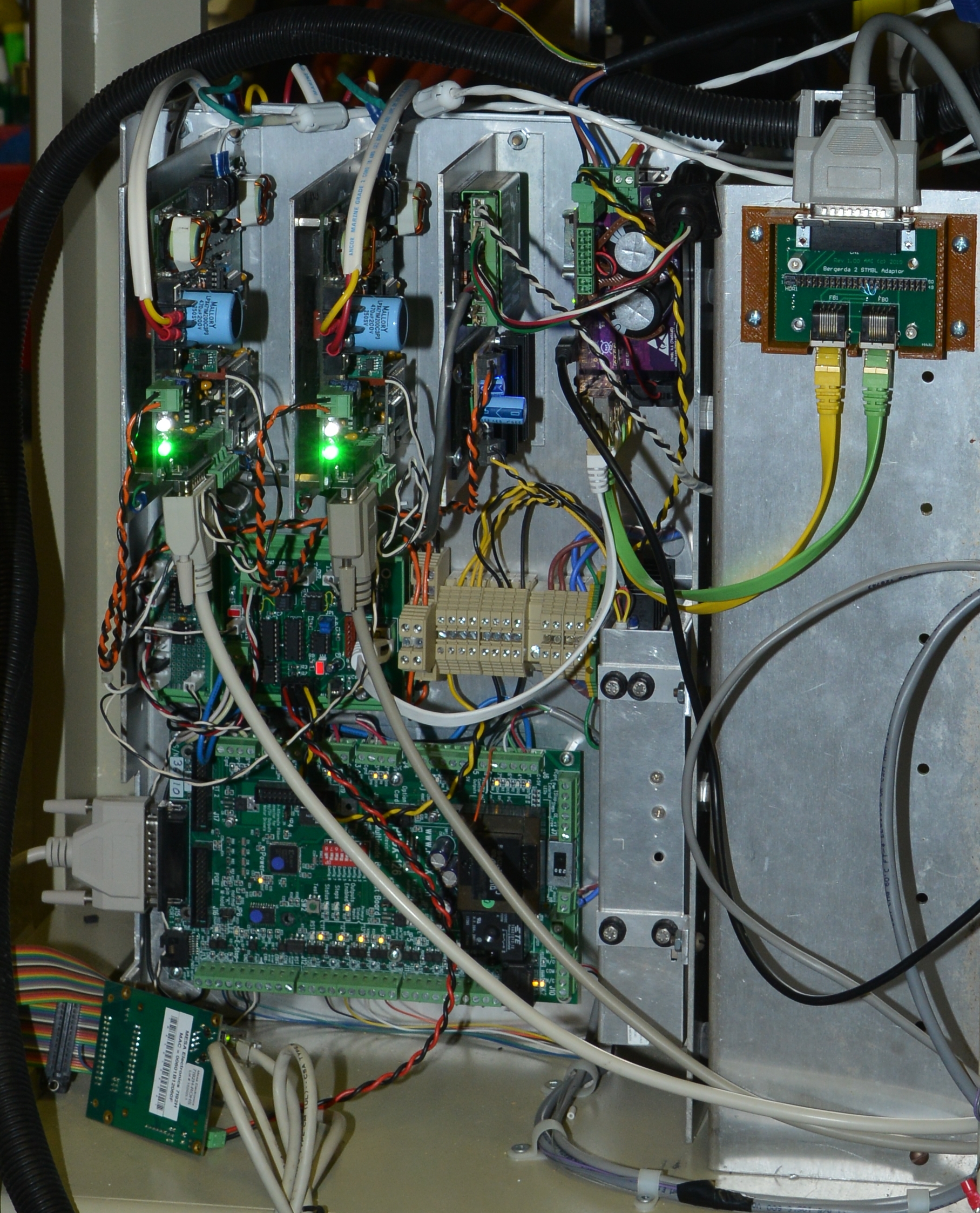

On Thursday 15 October 2020 22:49:41 John Dammeyer wrote: > This discussion on controlling DC motors is like re-inventing the > wheel over and over again. Let's go back to 2005 when Uli brought out > his UHU sevo drive with a small ATMEL 8 bit micro-controller. > http://uhu-servo.de/servo_en/index.htm > > The design was expanded and turned into the more powerful HP_UHU > drive. There's a fair amount of info here: > https://en.industryarena.com/forum/uhu-servo-controllers--411 > > Take it a step further and Henrik Olsson created the PIC passed > replacement for the ATMEL processor which handled higher line count > encoders and is more resistant to electrical noise. > http://henriksplace.se/servo/ > > The question was asked about PWM at 50% meaning either 50% of full > speed or motor locked. The UHU drive concept describing the PWM is > not the control signal from a PC but the drive signal controlling > motor speed and direction using an H-Bridge configuration. > > The theory is that if the PWM signal is high the H-Bridge is switched > to say turn the motor clockwise. If the PWM signal is low the > H-Bridge is switch to turn the motor counter clockwise. Therefore > with 50% the motor is first asked to turn one way and then the other. > That results in the motor essentially being locked in place. Change > the PWM on either side of 50% and the turns in the subsequent > direction. Which is essentially what I have in mind. But at perhaps a 10kHz PWM. At or near balance with the encoder, inductance controls the current but when the encoder vs commanded speed error goes up, then the average current will be varied to drive the motor and rebalance for circuit. No complicated reversing involved at all.
> So say the PWM frequency is 100mS for example. Then for 50mS current > is flowing in one direction and in the other direction for the next > 50mS. In real life it doesn't happen like that of course. First the > inductance doesn't allow the motor current to change instantly. > Second, full current as the result of applied voltage isn't pushed > through the windings for the full 50mS. That would be like an > overheating motor locked condition which is sure to result in a burned > out motor. But if the PWM is at a high enough frequency, the inductance will serve to reduce the average currents to very little. A better quality inductance but low ohmage in series with the motor will further reduce the current with negligable effect on the "needs full power" portion of the power curve. But the cores should be iron as ferrites can saturate much easier, losing 95% of their magnetic properties and if they are also operating at their curie point or above it, the ferrites contribution to the inductance is lost forever, it becomes frozen in the austinitic? state, forever non-magnetic until re-annealed in a non-magnetized state. What most techs don't grok is that many of the high performance ferrites have a curie point well below that of boiling water, so there is zero visible discoloration to trigger a memory of curie point concerns if the tech has ever heard of the effect in he first place. It is not a subject most EE profs spend any great amount of time on, but you can probably find some study material on the Arnold web site. > So what really happens? The current through the windings is sensed by > the controller. If the motor can handle 3 amps continuous then the > PWM High/Low times are modulated by the comparison of sensed motor > current against a set point. And if the motor is at the commanded > position as determined by the encoder that current may be set back to > reduce heating. > > But move the motor off position as sensed by the encoder and the PWM > on the side opposite to rotation is increased as well as perhaps the > setback current. > > Here's a photo of my original UHU drive on a PC board made by Manjeet > in India. The motor is a 24V DC Servo with encoder. > http://www.autoartisans.com/ELS/doc/Test_UHU.jpg > > I then ordered 4 and assembled 2 of the HP_UHU kits. > http://www.autoartisans.com/ELS/doc/HP_UHU.jpg > > Ultimately I did have noise issues with the brushed servos and bought > two of the modules from Henrik. You can just see the small piggy back > board in this photo. > http://www.autoartisans.com/ELS/doc/Henrik_HP_UHU_Module.jpg > > The zoomed in photo is of the Mill Control Cabinet. > http://www.autoartisans.com/ELS/doc/ControlCabinet.jpg > Two HP_UHU DC Servo drives with Henrik's processor module. To the > right of that a 15V small power supply for the UHU Logic section and > behind that a GECKO Stepper Driver for the knee. And beside that the > STMBL AC Servo drive. > > Another option for a complete closed loop step/dir DC servo driver is > the GECKO 320 I think. I have two but have never actually tried them. > The DC motors I have are 90VDC and I run them with a 105VDC power > supply. The GECKO's were limited to 70 or 80V. > > I'm sure there are some other DC Motor Driver with encoder feedback > out there. > > John Dammeyer > > > -----Original Message----- > > From: Thaddeus Waldner [mailto:thadw...@gmail.com] > > Sent: October-15-20 2:18 PM > > To: Enhanced Machine Controller (EMC) > > Subject: Re: [Emc-users] question for Chris and Thaddeus > > > > The reactance and inductance questions are above my pay grade and > > I�d be happy to hear someone explain it. :) I use these for robotics > > class in place of the old BJT L298, which are optimistically rated > > for 2 amps but have more than 2v drop at much less than that > > current. > > > > Maybe I don�t understand your comment but I�m pretty sure that a 50% > > duty cycle PWM waveform will run the motor at half- voltage. > > > > You command the direction with INa and INb according to the Truth > > Table. The PWM signal will then switch either the A or B low- side > > FETs, depending on the INa/INb configuration. > > > > > It would appear that when enabled, and lets say with a pwm > > > frequency near the top of the 10khz range, that a 50% duty cycle > > > pwm waveform would be the equ of a balanced, at rest servo, so my > > > first question is how much additional inductance in series with > > > the motors leakage reactance will be needed to protect the chip > > > from the current surges at the pwm waveforms transition points? > > > > > > My hal file will obviously need to stage an initial enable at the > > > 50% duty points, then let the pid output thru. > > > > _______________________________________________ > > Emc-users mailing list > > Emc-users@lists.sourceforge.net > > https://lists.sourceforge.net/lists/listinfo/emc-users > > _______________________________________________ > Emc-users mailing list > Emc-users@lists.sourceforge.net > https://lists.sourceforge.net/lists/listinfo/emc-users Cheers, Gene Heskett -- "There are four boxes to be used in defense of liberty: soap, ballot, jury, and ammo. Please use in that order." -Ed Howdershelt (Author) If we desire respect for the law, we must first make the law respectable. - Louis D. Brandeis Genes Web page <http://geneslinuxbox.net:6309/gene> _______________________________________________ Emc-users mailing list Emc-users@lists.sourceforge.net https://lists.sourceforge.net/lists/listinfo/emc-users
