> From: "John Milstone" <john_sw_orla...@yahoo.com> > Sent: Friday, June 21, 2013 12:01:07 PM

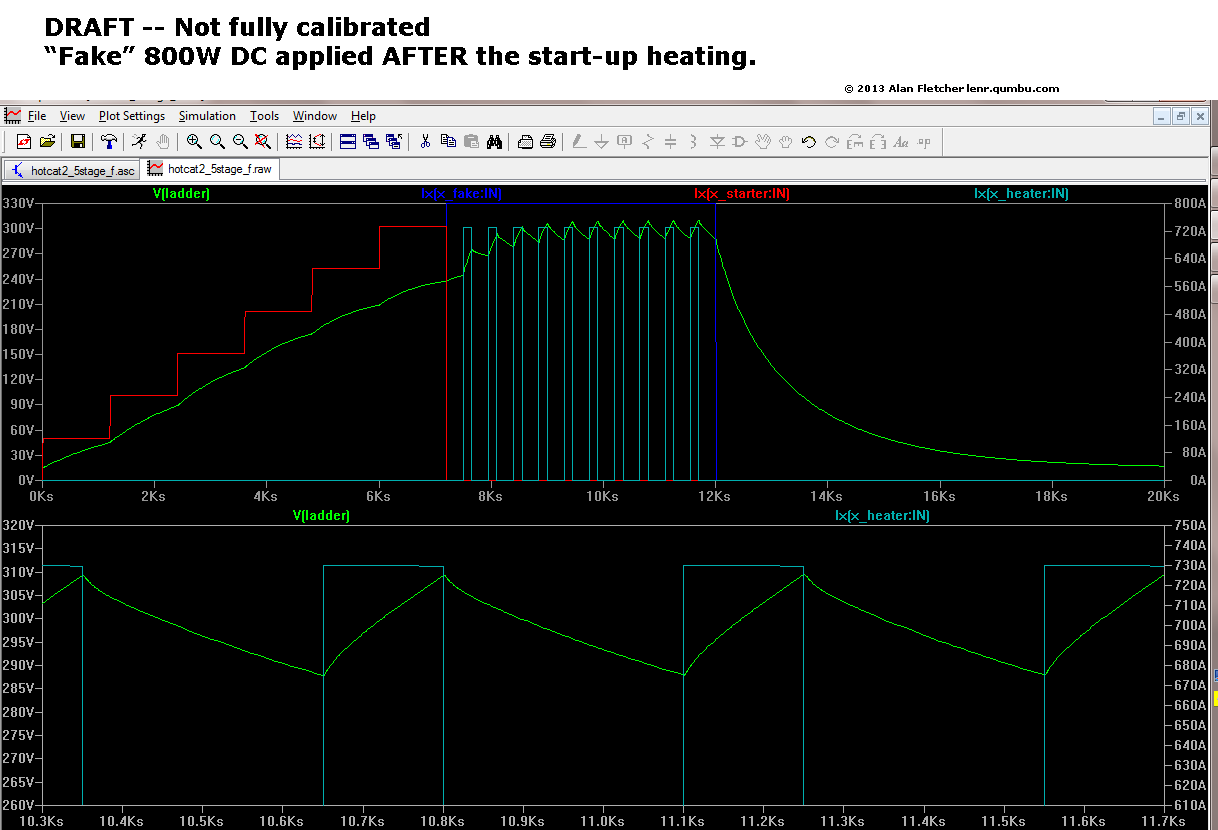

> FWIW, I put together a new version of "Plot 8" from the original > report, showing the full Y axis and adding the power-in if the wire > trick were being used. > The chart is here: http://s10.postimg.org/btaoiv6eh/E_Cat_Power.png You can't apply the "fake" DC during the start-up phase (which is in steps to full power) -- you have to apply about 800W when the PULSED heater starts, to get it to the operating temperature of 311 C (peak) and then turn it off at the end of the run. This is an uncallibrated draft: http://lenr.qumbu.com/web_hotcat_spice/130621_spice_01.png DC + Pulsed does NOT match the waveform http://lenr.qumbu.com/web_hotcat_pics/130601_levi_12A.png http://lenr.qumbu.com/web_hotcat_pics/130601_levi_15A.png
